Civil Engineering  ·  Level 6
Site Survey
Chapter 2: Set out civil structures
📚 6 Topics
⚑ What you will be able to do

By the end of this chapter, you will be able to:

  • Select the correct setting out tools and equipment needed for different civil structure jobs.
  • Calibrate setting out equipment accurately by following the manufacturer’s manual.

Mastering these skills ensures your work is precise and reliable, which is essential for building strong and safe civil structures.

Compiled by: Faith Achieng

Setting out civil structures is a fundamental phase in civil engineering projects, involving the accurate transfer of design dimensions and levels onto the ground. This process ensures that the construction aligns precisely with the approved plans, preventing costly errors and structural defects. In the Kenyan context, where infrastructure development is booming in urban and rural areas alike, mastery of setting out techniques and equipment is essential for engineers and surveyors working on roads, bridges, buildings, and water facilities.

2.1 Setting out tools and equipment

Setting out tools and equipment form the foundation for accurate and efficient site surveys in civil engineering. Their selection, proper use, and maintenance directly influence the precision of measurements and the overall quality of construction. Kenyan civil engineers often encounter diverse site conditions, from rocky terrains in Rift Valley to swampy grounds in the coastal region, necessitating reliable and adaptable tools. The following sections provide detailed specifications and practical insights into the most common setting out instruments.

2.1.1 Strings

Strings are among the simplest yet most versatile tools used in setting out civil structures. They serve as straight lines for alignment, reference, and measurement between fixed points on a site.

Name Specification Use
Mason’s String Usually made of strong cotton or nylon, diameter about 1.5 mm, length varies from 30m to 100m Used for marking straight lines and reference points on site
  • Strings must be taut and free from stretch to maintain accuracy during alignment.
  • In construction sites such as a school expansion project in Kisumu County, strings provide a quick visual guide for foundation trenches.
  • Strings can be marked at intervals with chalk or paint for repeated measurements.
  • Proper storage in a spool or reel prevents tangling and damage from moisture.
  • Regular replacement is necessary when the string shows signs of fraying or weakening to avoid measurement errors.

2.1.2 Tape measures

Name Specification Use
Steel Tape Lengths from 10m to 100m, width 12.5mm, coated steel for rust resistance Measuring distances and dimensions with high accuracy
Fiberglass Tape Lengths up to 50m, flexible, non-conductive, resistant to corrosion Used in wet or electrically sensitive environments
  • Steel tapes are preferred for their rigidity, which allows straight-line measurements without sagging.
  • Fiberglass tapes are beneficial in swampy or wet areas, such as near water pipelines in Mombasa County.
  • Tape measures should be read at eye level to avoid parallax errors.
  • After use, tapes must be cleaned and retracted carefully to prevent kinks or damage.
  • Calibration checks against certified standards ensure continued accuracy, especially for long tapes used in road works.

2.1.3 Ranging rods

Ranging rods are vertical markers used to indicate points and alignments over long distances. They enhance visibility and precision during site layout.

Name Specification Use
Aluminium Ranging Rod Length 2m to 3m, painted with alternating red and white bands for visibility Marking survey points and alignment lines on construction sites
Wooden Ranging Rod Length 2m, painted with bright colors, lighter but less durable Temporary marking in less demanding environments
  • Ranging rods must be firmly planted vertically to provide stable reference points.
  • Their bright colors improve visibility in dense vegetation or dusty sites like in Nakuru County road projects.
  • The rods assist in line-of-sight measurements when used with a theodolite or total station.
  • Lightweight rods facilitate quick repositioning but require careful handling to avoid breakage.
  • Reflective tapes or flags can be attached for nighttime or low-light visibility during extended survey operations.

2.1.4 Pegs

Pegs are short stakes driven into the ground to mark fixed points, corners, or boundaries of a structure during setting out.

Name Specification Use
Wooden Pegs Typically 25mm x 25mm x 300mm-made of hard wood like mahogany Marking corners and control points on construction sites
Plastic Pegs Durable, UV resistant, various colors Temporary or semi-permanent markers on soft ground
  • Pegs must be driven vertically and flush with the ground surface or slightly above for clear visibility.
  • In foundation works for a hospital in Eldoret, pegs serve as permanent markers for excavation limits.
  • Pegs can be numbered or painted to correspond with survey point codes.
  • Careful removal and storage preserve pegs for reuse in phased construction projects.
  • Pegs should be inspected regularly for displacement due to weather or site activities.

2.1.5 Cutting tools

Cutting tools are essential for preparing and adjusting setting out materials such as wooden pegs, strings, and plastic components.

Name Specification Use
Handsaw Blade length 300mm to 500mm, fine teeth for smooth cuts Cutting wooden pegs and battens to required lengths
Utility Knife Sharp blade, retractable, ergonomic handle Trimming strings, cutting tapes, and plastic parts
  • Handsaws require steady handling and maintenance of sharpness for clean cuts.
  • Utility knives are versatile for precise trimming of marking tapes and packaging materials.
  • Safety gloves should be worn to prevent injuries during cutting operations.
  • Cutting tools must be stored securely to maintain blade integrity and ensure site safety.
  • Regular sharpening and blade replacement extend tool lifespan and improve efficiency.

2.1.6 Driving tools

Driving tools are used to insert pegs or rods firmly into the ground, ensuring stability of markers during the setting out process.

Name Specification Use
Mallet Wooden or rubber head, weight 1-2 kg Driving wooden pegs without damaging them
Sledgehammer Steel head, weight 4-6 kg, long handle Driving large pegs or metal rods into hard ground
  • Mallets minimize damage to wooden pegs, preserving their shape and accuracy.
  • Sledgehammers provide the force needed to penetrate rocky or compacted soils common in Kenyan highland projects.
  • Correct use involves controlled, vertical strikes to avoid bending pegs or rods.
  • Tools must be inspected for handle integrity and head security before use.
  • Proper storage prevents rusting of metal parts and warping of wooden handles.

2.1.7 Angle measuring tools

Angle measuring tools are critical for establishing accurate horizontal and vertical angles during setting out, ensuring structures conform to design specifications.

Name Specification Use
Theodolite Precision instrument with telescope, graduated circles, accuracy up to 20 seconds Measuring horizontal and vertical angles in surveying
Protractor Semi-circular or circular, graduated in degrees Simple angle measurements on drawings or site
  • Theodolites are used in large-scale projects like bridge construction to set precise angles between control points.
  • Protractors assist in quick verification of angles during minor adjustments on site.
  • Theodolites require calibration and leveling before use to maintain accuracy.
  • Operators must be trained to read and record angles correctly, especially in complex layouts.
  • Protective cases and regular servicing extend the life of sensitive angle measuring instruments.

2.1.8 Plumb bob

A plumb bob is a simple yet vital instrument for establishing vertical reference lines, crucial for ensuring perpendicularity and alignment in structures.

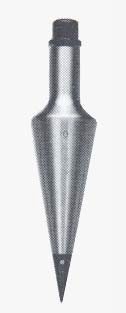

A plumb bob
A plumb bob (Source: Untitled (10))

Name Specification Use
Steel Plumb Bob Conical or cylindrical shape, weight 100g to 500g, attached to a strong string Establishing vertical lines or points on site
  • The plumb bob is suspended from a fixed point to indicate a true vertical line by gravity.
  • It is used in setting out walls, columns, and formwork to maintain verticality.
  • The string must be free from twists and securely attached to the plumb bob.
  • In areas with wind, protection or shielding may be necessary to prevent swinging and inaccurate readings.
  • After use, the plumb bob should be cleaned and stored in a protective pouch to avoid damage.

2.1.9 Marking tools and equipment

Marking tools and equipment enable clear and permanent indication of points, lines, and levels on various surfaces during setting out.

Name Specification Use
Chalk Line Reel of chalked string, usually 30m length Marking straight lines on flat surfaces
Marker Paint Fast-drying, brightly colored, weather-resistant Marking points and boundaries on ground and concrete
Carpenter’s Pencil Flat wooden pencil, resistant to breakage Marking measurements on timber and formwork
  • Chalk lines provide quick and visible straight lines over large flat areas, such as concrete slabs.
  • Marker paint is used for durable marks in outdoor conditions, including rocky or dusty sites.
  • Carpenter’s pencils allow precise markings on uneven or rough surfaces without easily breaking.
  • Marking tools must be checked for sufficient chalk or paint and replaced as needed to maintain visibility.
  • Storage in sealed containers prevents drying out of chalk and paint materials.

Practice Questions

  1. Explain the importance of using strings in setting out civil structures and describe how they should be maintained to ensure accuracy. (10 marks)
  2. Compare steel tape measures and fiberglass tape measures in terms of their specifications and suitability for different site conditions. (12 marks)
  3. Describe the role of ranging rods in site surveys and list five key characteristics that make them effective. (10 marks)
  4. Outline the steps involved in safely using a sledgehammer to drive pegs into hard ground. (12 marks)
  5. Discuss the use of a plumb bob in establishing vertical lines and explain precautions necessary to obtain accurate readings. (11 marks)
The rest of this chapter
🔒

Create a free account to open more of this chapter.

Free: practical guides, quick cards, workplace scenarios and more.

Create a free account
🔒2.2 Calibration of Setting Out Equipment

Calibration of setting out equipment is critical in civil engineering projects to ensure accuracy and precision during site surveys and structure layout. In Kenya, where construction projects range from county government infrastructure to private developments,…

🔒2.3 Proposed alignment

In civil engineering projects within Kenya, the proposed alignment defines the exact path or positioning where a structure such as a road, pipeline, or building foundation will be placed. Proper alignment ensures the project adheres to design specifications, o…

🔒2.4 Horizontal and vertical alignment

The process of setting out civil structures requires precise establishment of both horizontal and vertical alignment to ensure the finished works conform to design specifications. In Kenya, where construction projects range from urban high-rises to rural road…

🔒2.5 Computation of Alignment Data

Accurate computation of alignment data is critical in civil engineering site surveys to ensure that structures are built precisely according to design specifications. In the Kenyan context, where infrastructure projects such as roads, bridges, and buildings re…

🔒2.6 Setting out tools and equipment are maintenance:

Maintenance of setting-out tools and equipment is the routine care, checking, cleaning, adjustment, repair and proper storage of instruments such as total stations, levels, theodolites, GNSS receivers, tapes, staffs and tripods so that they remain accurate and…

Chapter Summary

This chapter covered the essential tools and equipment used in setting out civil structures, including strings, tape measures, ranging rods, pegs, cutting and driving tools, angle measuring devices, plumb bobs, and marking instruments. It emphasized the importance of proper calibration of these tools through systematic processes, adherence to manufacturer manuals, thorough documentation, and addressing common calibration challenges with trained personnel. Understanding proposed alignment involved careful review of job specifications, comprehensive site assessment and surveying, selection of appropriate alignment methods, drafting, and obtaining necessary approvals. The chapter then detailed the distinctions between horizontal and vertical alignment, surveying methods, control point establishment, and the techniques required to achieve accurate positioning while considering factors that influence alignment quality. Computation of alignment data was explained with focus on data collection, types of data, mathematical principles, computational tools, error adjustments, and effective interpretation and reporting. Finally, maintenance of setting out equipment was discussed, highlighting regular inspection, cleaning, calibration, lubrication, repair, proper storage, following manufacturer guidelines, and maintaining records of all maintenance activities.

Self-Assessment

🔒 PDFDownload this self-assessment, with answers

A. Written Assessment

  1. Identify three types of cutting tools used in setting out civil structures and explain their purpose. (6 marks)
  2. What is the primary purpose of calibrating setting out equipment before use on a construction site? (2 marks)
🔒20 more in this section.

Chapter Examination Questions

🔒 PDFDownload these examination questions, with worked answers

SECTION A (40 Marks) - Answer ALL Questions

  1. Explain the importance of using strings in setting out civil structures and describe a typical situation on a road construction site where strings are used. (4 marks)
  2. Discuss the advantages and limitations of tape measures compared to electronic distance measurement tools in civil engineering site surveys. (4 marks)
🔒18 more in this section.

Chapter Practical Activities

Practical 1: Set out a rectangular foundation layout using setting out tools

Civil Engineering · Level 6
Site Survey
PRACTICAL ASSESSMENT
TIME: 4 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)

Type: Individual

INSTRUCTIONS TO CANDIDATE:
1.  You are required to perform the following task:
i.  Set out a rectangular foundation layout measuring 10,000mm by 6,000mm on the site using appropriate setting out tools and equipment.
2.  You have been provided with the following resources for the practical task:
Tools & EquipmentMaterials
20 meter long Tape measureMarking pegs
Ranging rodsBuilder's line (Manila string)
Marking pegsField surveying notebook
Builder's line (Manila string)Writing pen
Hammer
Measuring tape 5m
Sharp cutting tool
⬇ PDFResources Required (Cutting List)
S/NItemQuantity
1PPE (Safety boots, Overall, Gloves)1 set per Candidate
220 meter long Tape measure1 pc per Candidate
3Ranging rods4 pcs per Candidate
4Marking pegs12 pcs per Candidate
5Builder's line (Manila string)2 rolls per 3 Candidates
6Hammer (Driving tool)1 pc per Candidate
7Measuring tape 5m1 pc per Candidate
8Sharp cutting tool (e.g. Knife or scissors)1 pc per Candidate
9Field surveying notebook1 pc per Candidate
10Writing pen2 pcs per Candidate
⬇ PDFAssessor Guide
Items to be EvaluatedMarks AvailableMarks ObtainedComments
TASK 1: Setting out the foundation layout
Wore PPE (Safety boots, Overall, Gloves)
(Award 1 mark for each PPE worn)
3
Prepared and inspected all setting out tools and equipment for good working condition
(Award 2 marks or zero)
2
Measured and marked baseline of 10,000mm accurately using tape measure and pegs
(Award 5 marks or zero)
5
Measured and marked width of 6,000mm perpendicular to baseline using ranging rods and builder's line
(Award 5 marks or zero)
5
Used hammer to drive marking pegs firmly at all corner points
(Award 3 marks or zero)
3
Ensured all measurements were accurate within ±5mm tolerance
(Award 2 marks or zero)
2
Checked and corrected any errors in measurements and alignment
(Award 2 marks or zero)
2
Recorded all measurements and observations correctly in the field notebook
(Award 3 marks or zero)
3
Maintained a clean and organized work area throughout the task
(Award 2 marks or zero)
2
Maintained and cleaned all tools and equipment after use
(Award 3 marks or zero)
3
Sub-Total30
PRODUCT CHECKLIST
Foundation layout dimensions correctly pegged at 10,000mm length and 6,000mm width ±5mm
(Award 5 marks or zero)
5
Layout corners are square with correct diagonals within ±10mm tolerance
(Award 5 marks or zero)
5
Marking pegs are firmly driven and aligned with builder’s line
(Award 3 marks or zero)
3
Builder’s line is taut and correctly positioned along layout edges
(Award 2 marks or zero)
2
Field notebook contains complete and accurate recording of measurements and observations
(Award 5 marks or zero)
5
Sub-Total20
GRAND TOTAL50
ASSESSMENT OUTCOME:   ☐ Competent    ☐ Not Yet Competent (competent if at least 50%)

Practical 2: Set out and mark angles and vertical points using angle measuring tools and plumb bob

Civil Engineering · Level 6
Site Survey
PRACTICAL ASSESSMENT
TIME: 4 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)

Type: Individual

INSTRUCTIONS TO CANDIDATE:
1.  You are required to perform the following task:
i.  Set out and mark angles of 30°, 45°, and 60° and vertical points using a plumb bob on a 10m baseline.
2.  You have been provided with the following resources for the practical task:
Tools & EquipmentMaterials
Angle measuring protractor (180° metal)Chalk lime powder
Plumb bob (metal, 500g)Marking pegs (wooden)
Marking pegs (wooden)Field surveying notebook
Measuring tape (20 meters, steel)
Pencil and eraser
Calculator (scientific)
⬇ PDFResources Required (Cutting List)
S/NItemQuantity
1PPE (Safety boots, Overall, Gloves)1 set per Candidate
2Angle measuring protractor (180° metal)1 pc per Candidate
3Plumb bob (metal, 500g)1 pc per Candidate
4Marking pegs (wooden)10 pcs per Candidate
5Chalk lime powderSufficient per Candidate
6Measuring tape (20 meters, steel)1 pc per Candidate
7Field surveying notebook1 pc per Candidate
8Pencil and eraser1 set per Candidate
9Calculator (scientific)1 pc per Candidate
⬇ PDFAssessor Guide
Items to be EvaluatedMarks AvailableMarks ObtainedComments
TASK 1: Site Preparation and PPE
Wore PPE (Safety boots, Overall, Gloves)
(Award 1 mark for each PPE worn)
3
Cleared and prepared the site area for setting out
(Award 2 marks or zero)
2
Checked and ensured all tools are in good working condition
(Award 2 marks or zero)
2
Sub-Total7
TASK 2: Setting Out Baseline and Angles
Established and marked a 10m baseline using measuring tape and pegs
(Award 3 marks or zero)
3
Measured and accurately marked angles of 30°, 45°, and 60° using the protractor
(Award 2 marks for each correctly marked angle)
6
Used plumb bob to mark vertical points accurately at specified locations
(Award 4 marks or zero)
4
Sub-Total13
TASK 3: Recording and Documentation
Recorded all measurements and observations accurately in the field notebook
(Award 4 marks or zero)
4
Maintained clean and organized work area throughout the task
(Award 2 marks or zero)
2
Sub-Total6
TASK 4: Tool Maintenance
Cleaned and properly stored all tools after use
(Award 3 marks or zero)
3
Sub-Total3
PRODUCT CHECKLIST
Baseline length accurately measured at 10,000 mm ± 20 mm
(Award 4 marks or zero)
4
Angles of 30°, 45°, and 60° correctly set out within ±1° tolerance
(Award 2 marks for each correct angle)
6
Vertical points marked plumb and aligned correctly using the plumb bob
(Award 5 marks or zero)
5
Marking pegs placed firmly and accurately at all specified points
(Award 4 marks or zero)
4
Sub-Total19
GRAND TOTAL48
ASSESSMENT OUTCOME:   ☐ Competent    ☐ Not Yet Competent (competent if at least 50%)
🔒

Free: practical guides, quick cards, workplace scenarios and more.

Create a free account
🔒Calibration of Tape Measures and Angle Measuring ToolsPractical 3
🔒Drafting a Site Layout Plan from Job SpecificationsPractical 4
🔒Conduct site assessment and set out proposed alignment for a civil structurePractical 5
🔒Establish and Mark Control Points for Building LayoutPractical 6
🔒Setting Out Horizontal Alignment for a Civil StructurePractical 7
🔒Setting out vertical alignment for a 100m road sectionPractical 8
🔒Verification of Site Alignment using Surveying MethodsPractical 9
🔒Collecting and Recording Alignment Data for a 50m Site BaselinePractical 10
🔒Compute Alignment Data for Setting Out a 50m Building Foundation LinePractical 11
🔒Regular Inspection and Cleaning of Setting Out EquipmentPractical 12
🔒Calibration and Adjustment of a Dumpy Level for Site Setting OutPractical 13
🔒Lubrication and Maintenance of Moving Parts for Site Survey EquipmentPractical 14
🔒Proper storage and documentation of setting out equipment maintenancePractical 15
Flashcards 19 cards Study deck ▾
Question
1

↻ Tap card to reveal answer
🔒

17 more in this section.

Create a free account
Test Yourself 20 questions Start quiz ▾
0%
0 / 2
🔒

18 more in this section.

Create a free account
Am I competent?

At the start of this chapter we promised you would be able to:

  • Select the correct setting out tools and equipment needed for different civil structure jobs.
  • Calibrate setting out equipment accurately by following the manufacturer’s manual.

Tick each one you can genuinely do.

So, are you there yet?

You're competent when you can confidently do 50% or more of what this chapter promised.

Sign in to record how you're doing.
