Establishing survey control points is fundamental in civil engineering projects as they provide the reference framework for all subsequent measurements and construction activities. Precise control points ensure that the layout of structures such as roads, bridges, and buildings is accurate, which is critical for safety, functionality, and cost control. In Kenya, where terrain and environmental conditions vary widely, selecting and maintaining reliable control points using appropriate tools and equipment is essential for successful project execution. This chapter explores the key instruments used to establish and verify these control points on site.

3.1 Survey Tools and Equipment

Accurate surveying depends on a combination of specialized tools and equipment designed for precise measurement of angles, distances, and elevations. Civil engineers in Kenya commonly employ a range of instruments from traditional optical devices to modern automatic levels and measuring tapes. These tools must be carefully selected, maintained, and correctly used to ensure the reliability of control points, especially in complex projects such as highway construction or urban development.

3.1.1 Dumpy Level, Tilting Levels and Automatic Levels

Surveyors use different types of leveling instruments, each with distinct features suited to various site conditions and accuracy requirements. Understanding the characteristics and operational principles of dumpy levels, tilting levels, and automatic levels helps engineers select the appropriate tool for establishing control points.

Dumpy Level

The dumpy level is a traditional optical instrument featuring a fixed telescope and spirit level. It provides precise horizontal line-of-sight measurements essential for establishing benchmarks and control points.

• Accuracy and Stability: The dumpy level offers high accuracy because the telescope is fixed and aligned with the spirit level, reducing errors caused by instrument tilt.
• Usage in Rough Terrain: Its robust construction allows use in uneven or rough ground conditions common in Kenyan rural infrastructure projects.
• Manual Adjustment: Requires careful manual leveling and focusing, demanding skilled operators for reliable readings.
• Limitations: Setup and reading take longer compared to automatic levels, which may slow work pace on large sites.
• Maintenance Needs: Regular calibration and protection from dust and moisture are vital to preserve optical clarity and mechanical integrity.

Tilting Level

Tilting levels are optical instruments that allow the user to tilt the telescope slightly to bring the crosshair into focus without moving the instrument base.

• Flexibility in Focusing: The tilting mechanism compensates for minor misalignments, enabling quicker setup compared to dumpy levels.
• Operator Skill Requirement: Requires the surveyor to carefully adjust the tilt screw to achieve level sights, which can introduce human error.
• Portability: Generally lighter and easier to transport between control points in challenging Kenyan terrains.
• Cost-Effectiveness: Less expensive than automatic levels, making them suitable for smaller projects or training institutions.
• Durability Concerns: The tilting mechanism can be sensitive to rough handling and requires regular inspection.

Automatic Level

Automatic levels, also known as self-leveling levels, incorporate an internal compensator that automatically maintains the line of sight horizontal.

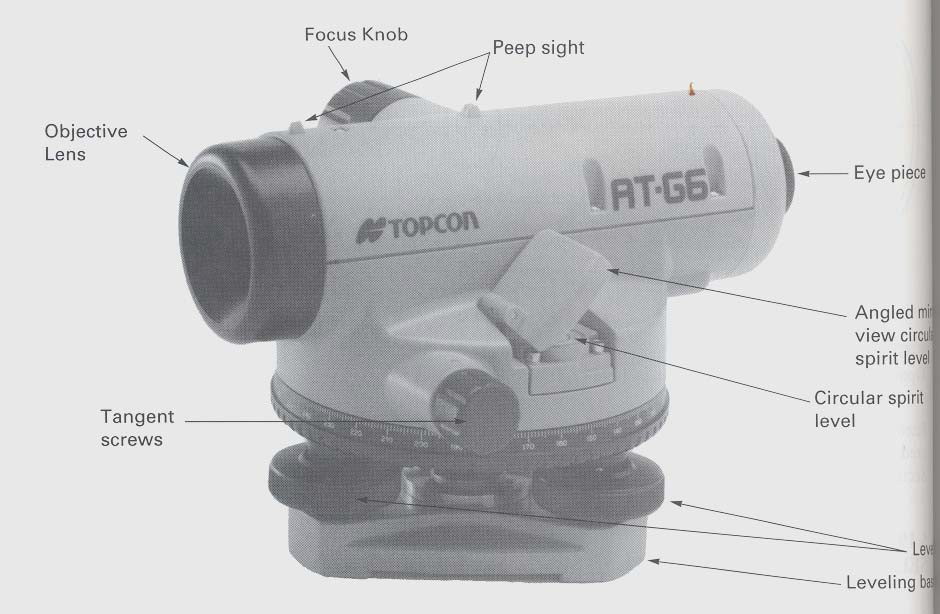

A Topcon AT-G6 automatic level used in surveying (Source: Untitled (10))

• Ease of Use: Eliminates the need for manual leveling, reducing operator fatigue and increasing efficiency on large survey sites.
• High Accuracy: The compensator ensures consistent horizontal line-of-sight, improving the precision of control point establishment.
• Suitability for Large Projects: Widely used in urban and infrastructure projects managed by county governments where speed and accuracy are critical.
• Maintenance Requirements: The compensator mechanism requires careful handling and periodic calibration to maintain accuracy.
• Cost Considerations: More expensive than dumpy and tilting levels but justified by improved productivity and reduced error rates.

3.1.2 Levelling Staff

The leveling staff is a graduated rod used in conjunction with leveling instruments to measure vertical distances or height differences between points.

Types of Levelling Staff

Levelling staffs vary by material, graduation, and design, each type suited to different site conditions and accuracy needs.

• Wooden Staffs: Traditional, lightweight, and inexpensive but susceptible to warping and damage in wet Kenyan climates.
• Aluminium Staffs: Durable, resistant to weather, and commonly used in Kenyan construction sites for their portability and accuracy.
• Fiberglass Staffs: Non-conductive and robust, ideal for projects near electrical installations or in harsh environments.
• Telescopic Staffs: Adjustable length staffs that collapse for easy transport and extend for varied measurement ranges.
• Metric Graduations: Most staffs are graduated in millimeters and centimeters for precise readings aligned with Kenyan survey standards.

Usage and Handling

Proper handling of the leveling staff is vital for accurate readings.

• Vertical Positioning: The staff must be held exactly vertical on the point being measured to avoid parallax errors.
• Reading the Graduations: The surveyor reads the point on the staff where the instrument's crosshair intersects, determining the height difference.
• Stability on Uneven Ground: Use of pegs or assistants to stabilize the staff is common on uneven Kenyan terrains.
• Protection from Damage: Regular inspection for dents or bends is necessary since damaged staffs can cause measurement errors.
• Cleaning and Storage: Dirt and moisture can obscure graduations; staffs should be cleaned and stored properly after use.

3.1.3 Tilting Levels

While introduced earlier, a more detailed focus on tilting levels is necessary to understand their operational nuances and advantages in Kenyan civil engineering contexts.

Principle of Operation

Tilting levels operate by allowing slight angular adjustments of the telescope to bring the crosshair into focus, compensating for minor misalignments.

• Tilt Screw Mechanism: Enables fine adjustment of the telescope’s angle, improving focusing speed.
• No Internal Compensator: Unlike automatic levels, tilting levels rely on the operator’s skill to achieve horizontal alignment.
• Crosshair Adjustment: The crosshair can be aligned with the levelling staff for accurate height readings.
• Use in Variable Terrain: Effective where quick setups are required but the terrain is not extremely uneven.
• Reliance on Operator Judgment: Skill and experience are crucial to minimize systematic errors.

Suitability and Limitations

Tilting levels have specific applications and constraints in the Kenyan civil engineering environment.

• Small to Medium Projects: Ideal for projects with moderate accuracy demands such as small roads or drainage works.
• Training and Education: Commonly used in technical colleges for teaching surveying principles.
• Sensitivity to Operator Error: The need for manual tilt adjustment can lead to inconsistencies if not carefully managed.
• Cost Advantage: Lower initial cost makes them accessible for budget-conscious projects.
• Maintenance Needs: Requires regular cleaning and mechanical checks to maintain functionality.

3.1.4 Automatic Levels

Automatic levels represent a significant advancement in leveling technology, simplifying the process and enhancing measurement reliability.

Internal Compensator Mechanism

The hallmark of automatic levels is the internal compensator, which maintains the telescope’s horizontal line of sight automatically.

• Gravity Pendulum or Magnetic Compensator: These mechanisms adjust the line of sight as the instrument is moved or slightly tilted.
• Continuous Self-Leveling: Reduces errors caused by imperfect setup or ground instability.
• Improved Accuracy: Consistently provides reliable height differences, essential for critical infrastructure like bridges or dams.
• Reduced Operator Fatigue: Minimizes manual adjustments, allowing surveyors to work longer with better precision.
• Calibration and Testing: Requires periodic calibration by qualified technicians to ensure compensator functionality.

Application in Kenyan Civil Engineering

Automatic levels are widely adopted in Kenya’s urban development and large-scale infrastructure projects.

• Highway and Road Construction: Used by county governments in Nairobi and Mombasa for establishing accurate control points.
• Building Foundations: Ensures precise leveling for multi-storey buildings in growing urban centres.
• Water Supply Projects: Enables accurate gradient measurements for pipeline installations.
• Training and Professional Use: Increasingly featured in surveying courses at technical universities.
• Cost-Benefit Consideration: Higher upfront cost balanced by efficiency gains and reduced rework.

3.1.5 Tape Measure

Tape measures are fundamental tools for linear distance measurement in surveying, offering portability and versatility.

Practical Considerations

Tape measures require careful handling to maintain accuracy and longevity.

• Tension Control: Proper tension must be applied to avoid sagging, which causes measurement errors.
• Alignment: The tape should be aligned straight between points to ensure accurate distance measurement.
• Environmental Effects: Steel tapes can expand or contract with temperature changes; adjustments may be necessary.
• Safety Precautions: Sharp tape edges can cause injuries; protective gloves are recommended during use.
• Maintenance: Clean tapes after use and store in protective cases to prevent corrosion or damage.

3.1.6 Pegs

Pegs are physical markers used to identify survey points on the ground, crucial for marking control points during site surveys.

Characteristics and Usage

Pegs must be chosen based on site conditions and duration of the survey.

• Visibility: Pegs painted in bright colours improve identification from a distance.
• Durability: Wooden pegs are common in Kenya’s dry areas, while plastic pegs resist decay in humid regions.
• Placement Technique: Pegs are driven firmly into the ground to prevent displacement by weather or human activity.
• Numbering and Tagging: Surveyors often mark pegs with identification numbers or codes for easy reference.
• Removal and Restoration: Temporary pegs must be removed after project completion to restore the site.

3.1.7 Ranging Rods

Ranging rods are long, slender rods used to mark intermediate points along a survey line, aiding in alignment and measurement.

Functional Role and Handling

Ranging rods facilitate the establishment of straight survey lines and control point alignment.

• Line of Sight Aid: Positioned at intermediate points to guide the surveyor’s line of sight between control points.

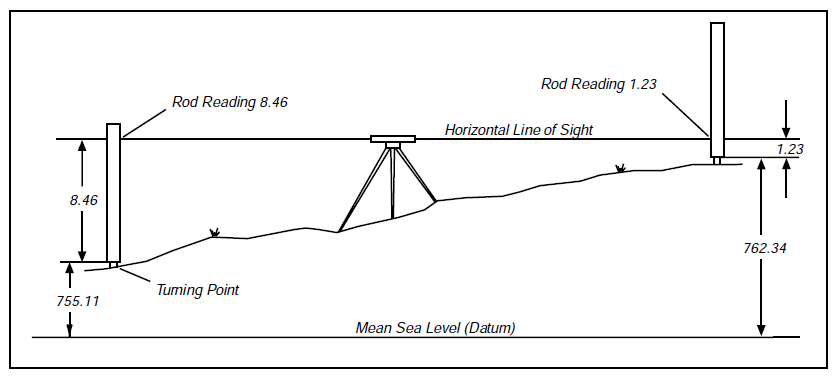

A leveling survey setup (Source: Untitled (10))

• Height Visibility: Alternating colour bands improve visibility over long distances and in dense vegetation.
• Portability: Lightweight construction allows easy transport across challenging Kenyan terrains.
• Team Coordination: Often used by assistants to mark points under the direction of the lead surveyor.
• Storage and Care: Must be cleaned and stored to prevent damage to paint and reflective materials.

Chapter Summary

This chapter provided a comprehensive overview of the essential survey tools and equipment used in establishing survey control points, including the dumpy level, tilting levels, automatic levels, levelling staff, tape measure, pegs, and ranging rods. It emphasized the importance of calibrating these tools to ensure accuracy, covering the types of equipment that require calibration, the standards and procedures involved, the instruments used for calibration, adherence to manufacturer guidelines, and proper recording of calibration data. The chapter then explored different types of site survey control points such as temporary benchmarks (TBM), permanent benchmarks (BM), and arbitrary points, explaining their roles in survey work. Finally, it addressed levelling works by detailing the processes of temporary adjustments, booking levels, calculating reduced levels, and performing arithmetic checks to verify the accuracy of survey data. Together, these topics form the foundation for effective and precise site surveys critical in construction and land development projects.
