Carrying out a site plan layout is a fundamental stage in building construction that establishes the framework for all subsequent works. In Kenya, where diverse terrain and regulatory requirements shape construction projects, accurate site layout ensures efficient use of space, compliance with planning permissions, and smooth workflow on site. This chapter explores the interpretation of site layout drawings and the provision of essential site amenities, equipping Building Technology professionals with practical skills to organize and prepare building sites effectively.

2.1 Site Layout

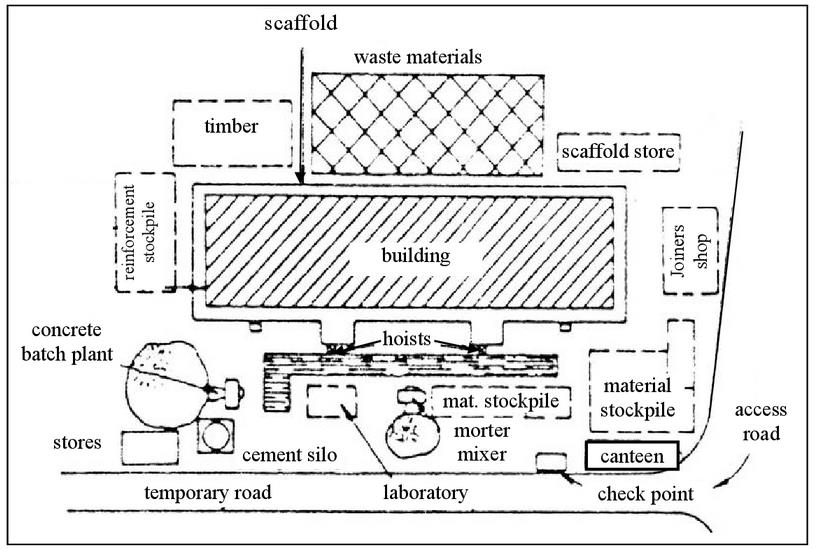

Site layout involves arranging the physical elements of a construction site according to the approved drawings and specifications. This process requires understanding the site plan, establishing reference points, and marking out the building footprint and other key features on the ground. Proper site layout minimizes construction errors, facilitates resource management, and supports safety on site.

2.1.1 Interpretation

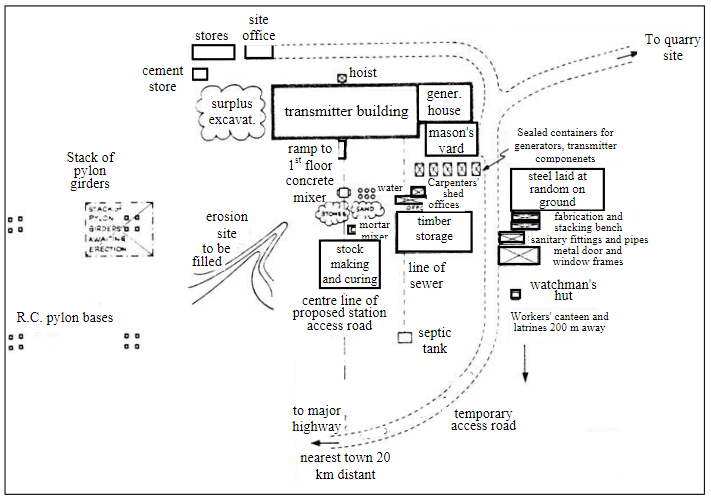

Interpreting a site layout drawing is a critical skill for Building Technology professionals, ensuring that the design vision is accurately transferred onto the ground. Site layout drawings show the position of the building, boundaries, access roads, and other infrastructural elements relative to the site boundaries, often including levels and setbacks mandated by local authorities. In the Kenyan context, interpreting these drawings correctly supports compliance with county government regulations and the National Construction Authority (NCA) guidelines.

Key Elements of Site Layout Drawings

• Plot Boundaries and Dimensions: These define the limits of the construction site and are essential for positioning the building without encroachment on neighbouring properties, as regulated by the Physical Planning Act in Kenya.
• Building Footprint: Depicts the exact location and shape of the building on the site, including external walls and features such as verandas or porches.
• Setbacks and Easements: Indicate required distances from plot boundaries to the building, ensuring space for drainage, roads, or future expansion as stipulated by county planning bylaws.
• Levels and Contours: Show variations in site elevation, informing excavation and foundation works. For example, at a commercial site in Kisumu, accurate level interpretation prevented costly foundation adjustments.
• Access Points and Roads: Marked to guide construction traffic and future site access, crucial in busy urban sites like Nairobi CBD to avoid traffic disruptions.

Methods for Accurate Interpretation

• Cross-Referencing Drawings: Comparing architectural, structural, and services drawings to understand the full scope of the site layout.
• Using a Scale Ruler: Essential for converting drawing measurements to real-world dimensions during site marking.
• Understanding Symbols and Notations: Familiarity with industry-standard symbols for utilities, trees, and other site features ensures comprehensive layout understanding.
• Consulting Survey Reports: Provides precise site measurements and topographical data to verify drawing accuracy.
• Engaging with the Design Team: Clarifying ambiguities directly with architects or engineers prevents misinterpretation and errors.

2.1.2 Establishing Control Points

Accurate site layout depends on establishing control points that serve as fixed references for all measurements. Control points are usually pegged at strategic locations such as plot corners or benchmark points with known coordinates and elevations. These enable consistent and repeatable measurements throughout construction, critical in large or complex sites.

Procedures for Setting Control Points

• Surveying the Site Perimeter: Using a total station or theodolite to mark plot boundaries exactly as per the site plan.
• Benchmark Identification: Selecting a permanent, stable point with a known elevation relative to a national datum, often provided by the county government survey office.
• Pegging Out Key Reference Marks: Marking the corners and centerlines of the proposed building with durable pegs or markers.
• Recording Coordinates and Elevations: Documenting all control points with GPS or survey equipment for future reference.
• Verification by a Licensed Surveyor: Ensuring control points comply with legal and technical standards to avoid boundary disputes.

2.1.3 Site Marking Techniques

Once control points are established, the next step is marking the building footprint and other layout features on the ground. This process translates drawing measurements into visible marks, guiding excavation, foundation works, and construction.

Common Site Marking Methods

• Batter Boards and Profile Lines: Temporary wooden frames fixed around the site perimeter to hold strings that outline the building edges and level lines.
• Use of String Lines and Nails: Strings stretched tightly between pegs or nails to indicate walls and other linear features.
• Paint Marking: Applying durable paint or chalk on the ground for temporary visibility, especially for internal features like plumbing runs.
• Laser Levels and Total Stations: Advanced tools for precise horizontal and vertical alignment, particularly useful on sloping sites.
• Manual Measurement and Pegging: Using tape measures and pegs for small or simple layouts where high-tech equipment is unavailable.

2.1.4 Quality Control in Site Layout

Maintaining accuracy during site layout prevents costly rework and ensures the building is constructed as designed. Quality control involves regular checking, documentation, and adjustment of layout marks.

Quality Control Measures

• Double-Checking Measurements: Independent verification of all critical measurements by different technicians.
• Recording Layout Data: Maintaining a site diary or layout log with dates, personnel, and measurements for accountability.
• Monitoring Environmental Factors: Accounting for soil movement, weather effects, or vandalism that may disrupt layout marks.
• Recalibrating Equipment: Regular maintenance and calibration of surveying instruments to ensure precision.
• Engaging Supervisors: Continuous supervision by senior technicians or engineers during layout activities to detect and correct errors promptly.

Chapter Summary

This chapter focused on the process of carrying out a site plan layout, starting with understanding the interpretation of site layout. It emphasized how to read and comprehend site plans accurately, ensuring correct positioning of structures on the construction site. The chapter then discussed various amenities required for an effective site layout, highlighting the different types of amenities that support construction activities. Attention was given to the proper erection of these amenities, detailing the steps and considerations necessary to set them up safely and efficiently. The integration of site layout interpretation with the practical aspects of amenities installation was key to establishing a well-organized construction site. Overall, the chapter provided a comprehensive guide to preparing the site for building operations through careful planning and execution of layout and amenities.
