Producing clear and accurate pictorial drawings is an essential skill for welding professionals in Kenya, as these drawings provide a three-dimensional representation of welded components and assemblies. Pictorial drawings aid in visualizing complex weldments, facilitating communication between designers, fabricators, and quality inspectors. Mastery of standard symbols and abbreviations, coupled with proficiency in various pictorial projection techniques, ensures that welding projects are executed efficiently and according to specification.

3.1 Drawing Symbols and Abbreviations

Drawing symbols and abbreviations form the universal language of technical drawings, enabling welding professionals to convey detailed information succinctly and accurately. In the Kenyan welding industry, adherence to these standards is crucial for maintaining consistency, meeting regulatory requirements, and ensuring safety. Correct application of these symbols minimizes misunderstandings during fabrication and inspection phases.

3.1.1 Apply Standard Drawing Abbreviations in Pictorial Drawings

Purpose of Drawing Abbreviations in Welding

• Simplify Communication: Abbreviations condense complex welding instructions into concise forms, allowing rapid comprehension on drawings.
• Standardization: Use of recognized abbreviations aligns with Kenya Bureau of Standards (KEBS) and ISO guidelines, ensuring uniform interpretation across diverse teams.
• Space Efficiency: Limited drawing space necessitates the use of abbreviations to avoid clutter while maintaining clarity.
• Reduce Errors: Clear abbreviations prevent misinterpretation of welding processes, joint types, and specifications.
• Facilitate Documentation: Abbreviations streamline documentation and record-keeping, important for quality assurance and audits.

Common Welding Abbreviations and Their Meanings

• WPS: Welding Procedure Specification, detailing the welding parameters and conditions.
• FCAW: Flux-Cored Arc Welding, a semi-automatic welding process.
• SMAW: Shielded Metal Arc Welding, also known as manual arc welding.

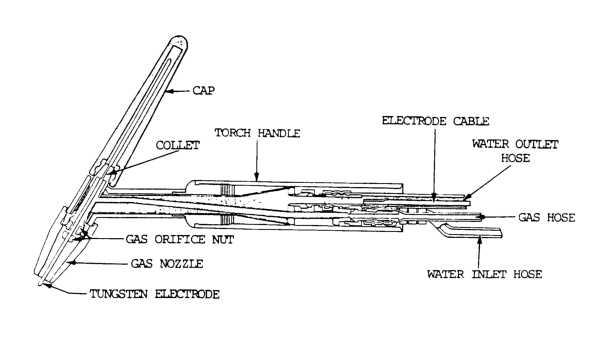

• GTAW: Gas Tungsten Arc Welding, commonly referred to as TIG welding.

• Weld All Around (WAA): Indicates a weld to be applied continuously around the joint.

• Fillet Weld (FW): A weld of approximately triangular cross-section joining two surfaces at right angles.
• Groove Weld (GW): A weld in the groove between two workpieces.
• Root Opening (RO): The gap between the edges of the base metals at the root of the joint.
• Back Weld (BW): A weld made on the opposite side of the joint to the initial weld.

Rules for Applying Abbreviations in Pictorial Drawings

• Follow Standards: Use abbreviations as defined in BS EN ISO 2553 and KEBS guidelines to maintain consistency.
• Clarity: Place abbreviations close to the relevant weld symbol to avoid confusion.
• Avoid Overuse: Use only the most relevant abbreviations to prevent overcrowding the drawing.
• Legibility: Ensure font size and style are legible when printed or viewed electronically.
• Combine with Symbols: Abbreviations should complement graphical symbols, not replace them.

Integration of Abbreviations with Welding Symbols

• Arrow Side and Other Side: Abbreviations are placed in relation to the arrow line indicating the weld location.
• Supplementary Symbols: Use abbreviations alongside symbols like contour, finish, and weld size for comprehensive instruction.
• Reference Notes: Abbreviations can be referenced in the drawing notes for detailed explanations.
• Consistent Placement: Maintain uniform placement of abbreviations across all pictorial drawings within a project.
• Revision Control: Update abbreviations in line with changes in welding procedures or standards.

Chapter Summary

This chapter covered the essential components for producing effective pictorial drawings using computer-aided drawing techniques. It began with an exploration of standard drawing symbols and abbreviations, emphasizing the importance of applying these conventions correctly to ensure clarity and consistency in pictorial representations. The discussion then moved to the practical techniques for creating various types of pictorial drawings, including isometric, oblique, cabinet, and cavalier projections, detailing the steps and considerations unique to each method. Attention was given to how these techniques contribute to accurate and visually understandable drawings. Finally, the chapter addressed the procedures for saving pictorial drawings in appropriate digital formats, highlighting best practices to maintain file integrity and compatibility for future use. Mastery of these topics equips learners with the skills to produce professional-quality pictorial drawings suitable for diverse technical applications.
