Computer Aided Drawing (CAD) has transformed welding design and fabrication practices in Kenya, enabling professionals to create precise, detailed, and modifiable drawings efficiently. Welding engineers and technicians rely on CAD to visualize complex joints, plan weld sequences, and communicate specifications clearly. This chapter introduces CAD fundamentals with a focus on navigating software platforms that welders commonly use, ensuring you can leverage these tools to improve accuracy and productivity in welding projects.

1.1 Overview of CAD

CAD is indispensable in modern welding engineering, streamlining the design process and improving fabrication accuracy. Kenyan welding professionals benefit from CAD through enhanced visualization of weld joints, reduction of errors, and better integration with automated manufacturing processes. Understanding CAD’s origins and its role today helps welders appreciate its value and apply it effectively.

1.1.1 Definition and Significance of CAD in Engineering and Design

Definition of CAD

• CAD stands for Computer Aided Drawing or Computer Aided Design, referring to the use of computer systems to create, modify, analyze, and optimize engineering drawings and models.
• It replaces manual drafting techniques with digital tools that allow precise geometric construction and editing.
• CAD software supports both 2D drafting and 3D modeling, essential for representing weld joints, assemblies, and fabrication details.
• The digital nature of CAD facilitates easy storage, retrieval, and sharing of drawings.
• CAD integrates with other systems like Computer Aided Manufacturing (CAM) to automate the welding process.

Significance of CAD in Welding Engineering

• Accuracy: CAD systems produce highly accurate drawings, reducing dimensional errors common in hand-drawn plans.
• Visualization: Welders can view weld joints and assemblies in 3D, enabling better understanding of complex geometries.
• Efficiency: Changes to designs can be made quickly without redrawing entire plans, saving time during project modifications.
• Documentation: CAD files serve as precise documentation for quality control and compliance with welding codes.
• Communication: CAD drawings improve communication between designers, welders, and fabricators by providing a universal graphical language.

1.1.2 Historical Development of CAD Technologies

Early Manual Drafting to Computerization

• Manual drafting dominated engineering design until the mid-20th century, requiring skilled drafters and physical tools.
• The first CAD systems emerged in the 1960s, initially developed for aerospace and automotive industries.
• These early systems were costly and operated on mainframe computers, limiting accessibility.

Evolution and Democratization

• The 1980s saw the introduction of personal computers, making CAD software more affordable and widespread.
• Software like AutoCAD revolutionized drafting by providing user-friendly interfaces and versatile tools.
• The 1990s introduced 3D CAD modeling, allowing welders to view and manipulate models from any angle.

Modern CAD in Welding

• Today’s CAD software integrates welding-specific features such as weld symbols, joint preparation details, and simulation of weld sequences.
• Cloud-based CAD and mobile applications facilitate remote collaboration on welding projects.
• Kenyan industries, including construction and manufacturing, increasingly adopt CAD to improve welding quality and reduce rework.

1.2 Computing Equipment and Software

In Kenya, welding professionals need reliable computing hardware and appropriate software to harness CAD’s full potential. Selecting the right equipment ensures smooth operation of CAD programs, while knowledge of popular software enables welders to choose tools best suited to their needs.

1.2.1 Identify Hardware Requirements for CAD Operations

• Processor: A fast CPU is essential for real-time rendering and running complex CAD simulations without lag.
• RAM: Adequate memory prevents software crashes when handling large welding assembly files.
• Graphics Card: High-performance GPUs accelerate 3D model display and manipulation, critical for welding joint visualization.

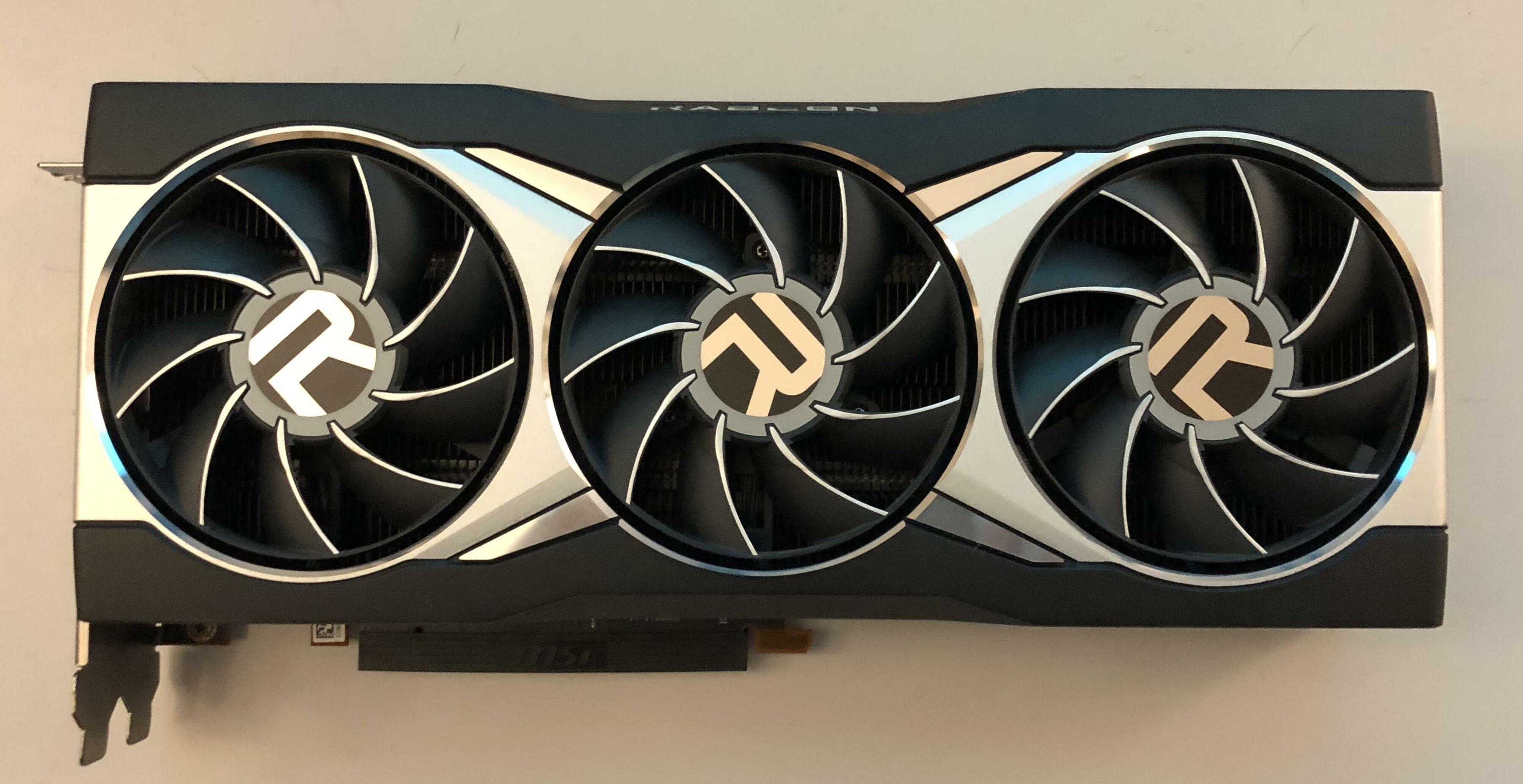

Triple-fan computer graphics card (Source: Wikipedia (Graphics card))

• Storage: SSDs improve loading times for CAD projects and reduce file access delays.
• Monitors: Clear, large screens reduce eye strain and allow simultaneous viewing of multiple drawing windows.
• Input Devices: Precision input devices enhance control when creating detailed weld symbols and lines.

1.2.2 List Popular CAD Software Options

AutoCAD

• Widely used for 2D drafting and basic 3D modeling in welding and fabrication industries.
• Supports creation of detailed weld symbols and annotations compliant with international standards.
• Offers extensive libraries and customization options tailored for welding projects.

SolidWorks

• Focuses on 3D modeling and simulation, ideal for designing welded assemblies and testing structural integrity.
• Enables welders to simulate weld bead placement and analyze stresses.
• Integrates with CAM software for automated welding machine programming.

Inventor

• Autodesk Inventor provides advanced 3D mechanical design capabilities.
• Supports parametric modeling, allowing dynamic adjustments to weld joint dimensions.
• Useful for creating exploded views and assembly instructions for welded structures.

Other Notable Software

• Tekla Structures: Specialized in structural steel detailing, including weld connection design.
• Fusion 360: Cloud-based CAD with collaboration features, suitable for small welding workshops.

• DraftSight: A cost-effective 2D CAD alternative for basic welding drawings.

• Selection depends on project complexity, budget, and specific welding requirements.

• Compatibility with Kenyan manufacturing standards and interoperability with CNC welding machines are key considerations.

Chapter Summary

This chapter provides a comprehensive introduction to Computer Aided Drawing (CAD), emphasizing its definition, significance in engineering and design, and tracing the historical development of CAD technologies. It outlines the essential hardware requirements and highlights popular CAD software options such as AutoCAD, SolidWorks, and Inventor. The chapter then examines the software interface, detailing the functions and capabilities of various CAD tools. Different templates suited for diverse drawing needs are explored, along with the process of importing common file formats like DWG, STL, DXF, and STEP into the workspace. Navigation within the CAD software is covered thoroughly, including understanding toolbars, menus, and command lines, as well as setting up the drawing environment with appropriate units and saving methods. The use of symbols, codes, and standards relevant to CAD functionality is introduced, followed by a detailed look at drawing elements such as points, lines, circles, planes, figures, and object snapping settings. Finally, the chapter reviews essential editing commands and tools, including delete, undo, fillet, trim, zoom, move, rotate, and dimensioning, equipping learners with the skills to efficiently create and modify CAD drawings.
