This chapter introduces the essential tools, equipment and materials used in technical drawing across diverse professional fields in Kenya. Mastery of these instruments ensures accuracy, clarity and professionalism in visual communication, whether preparing architectural plans for a county government office, designing layouts for a retail business, or illustrating processes in a hospital setting. Understanding the specifications and proper handling of drawing equipment enhances productivity and maintains quality standards required in diploma-level technical drawing tasks.

1.1 Drawing Equipment

Drawing equipment forms the foundation for producing precise and standardized technical drawings. These tools facilitate the creation of straight lines, accurate angles, and consistent measurements vital in conveying technical information clearly. In Kenya’s multidisciplinary work environments, such as universities, SACCOs, and agricultural cooperatives, proficiency with these instruments supports effective communication across departments and sectors.

1.1.1 T Square

Design and Structure of the T Square

The T square consists of two main parts: the blade and the stock. The blade is a long, flat, straight edge, usually transparent or opaque plastic, providing a smooth surface for drawing lines. The stock is a thicker, perpendicular piece attached at one end of the blade, ensuring the blade remains at a perfect right angle to the edge of the drawing board.

• Rigid construction ensures stability during use, preventing bending that can distort lines.
• Length options such as 60 cm or 90 cm accommodate various drawing sheet sizes, from A3 to A1.
• Material choice affects durability and weight; plastic is lightweight and resistant to moisture, while wooden T squares offer a traditional feel.
• Edge precision is critical; the blade edges must be perfectly straight for accurate line drawing.
• Stock thickness provides a firm grip against the drawing board edge to maintain alignment.

Importance of the T Square in Technical Drawing

• Horizontal alignment ensures uniformity in drawing components such as floor plans or mechanical parts.
• Supports set squares to draw vertical and angled lines accurately by acting as a base.
• Maintains consistent scale by enabling parallel lines to be drawn at precise intervals.
• Reduces errors associated with freehand drawing, enhancing professional presentation.
• Facilitates quick measurements when combined with scaled rulers.

Proper Use and Handling of the T Square

To maximize accuracy and prolong tool life, correct use and care are essential.

• Place the stock firmly against the drawing board edge to prevent movement.
• Draw lines by moving the pencil or pen along the blade edge without shifting the T square.
• Avoid applying excessive pressure that could warp the blade.
• Store the T square flat or hanging on a wall hook to prevent bending.
• Clean the blade regularly to remove graphite or ink residue, ensuring smooth line drawing.

Common Mistakes and How to Avoid Them When Using a T Square

Misuse of the T square can lead to inaccurate drawings and poor work quality.

• Not securing the stock properly causes the blade to slip, resulting in crooked lines.
• Using a bent or damaged T square compromises line straightness; always inspect before use.
• Applying uneven pressure may cause the T square to shift mid-line.
• Drawing freehand without blade guidance defeats the purpose of the tool.
• Ignoring cleaning and maintenance leads to ink buildup, affecting line clarity.

1.1.2 Set Square

Types and Angles of Set Squares

Set squares come primarily in two standard types, each designed to deliver specific angles crucial in technical drawing.

• 45° Set Square has two equal legs and a right angle, enabling quick drawing of 45°, 90°, and 135° angles.

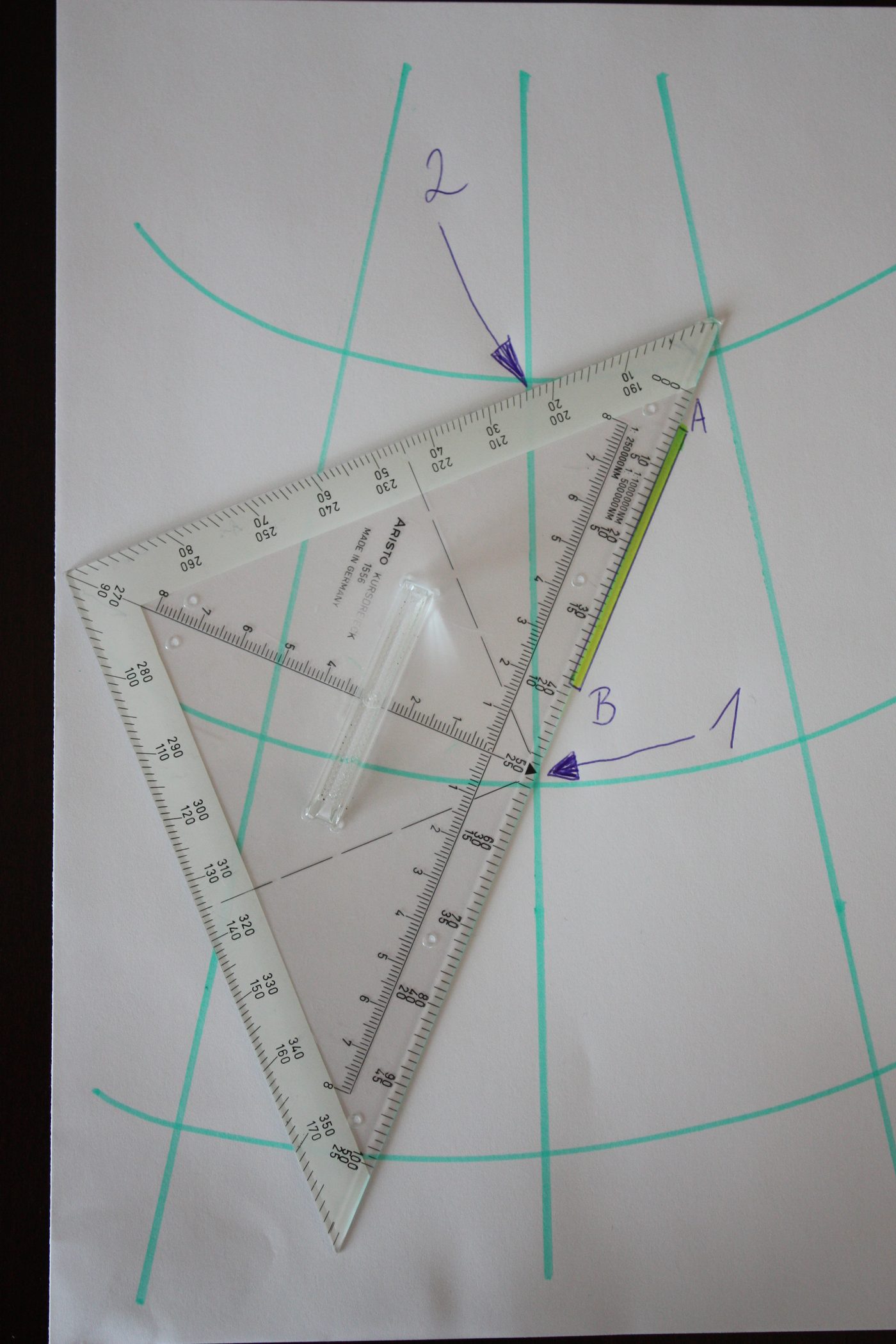

45° set square on graph paper (Source: Wikimedia Commons)

• 30°-60° Set Square provides three angles: 30°, 60°, and 90°, essential for isometric and orthographic projections.
• Material is usually transparent plastic allowing visibility of the drawing beneath.
• Size varies but typically ranges between 15 cm and 20 cm for ease of handling.
• Edge quality must be sharp and straight for precise line drawing.

Role of Set Squares in Technical Drawing

Set squares complement the T square by enabling the drawing of vertical and angled lines with precision.

• Drawing perpendicular lines by aligning the right angle edge with the T square.
• Creating standard angle lines such as 30°, 45°, and 60°, essential in projections and detailed drawings.
• Checking angular accuracy in existing drawings.
• Supporting isometric drawing techniques for 3D representation.
• Facilitating repetitive angle drawing with speed and consistency.

Using Set Squares Correctly

Correct technique ensures the reliability of lines drawn with set squares.

• Align one edge of the set square firmly against the T square’s blade for stable guidance.
• Hold the set square firmly to avoid slipping during line drawing.
• Use the transparent body to position lines precisely on the drawing sheet.
• Apply consistent pressure when drawing to produce clean lines.
• Store in a protective case to prevent damage to edges.

Typical Errors and Best Practices with Set Squares

Awareness of common pitfalls improves drawing quality.

• Misalignment with the T square causes skewed angles.
• Using worn or chipped edges leads to inaccurate lines.
• Applying uneven pressure can shift the set square.
• Ignoring the drawing surface cleanliness may cause slipping.
• Not verifying angles with a protractor when precision is critical.

1.1.3 Protractor

Structure and Types of Protractors

Protractors are designed to measure and construct angles accurately in technical drawings.

• Semi-circular protractor measures angles from 0° to 180°, commonly used in most drawing tasks.

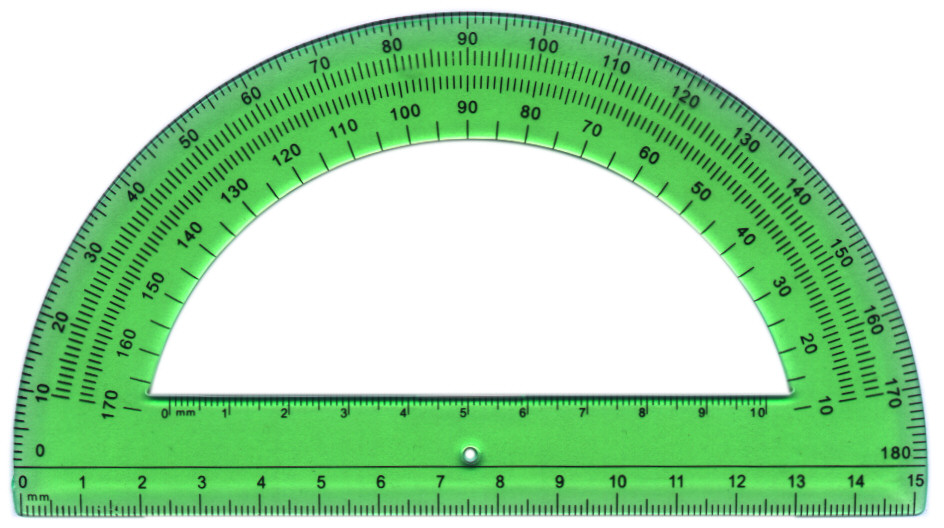

Green semi-circular protractor with ruler (Source: Wikimedia Commons)

• Full circular protractor measures 0° to 360°, suitable for complex angle measurements.
• Transparent plastic body allows visibility of the drawing beneath.
• Degree markings are clearly printed for precise reading.
• Center hole or notch helps align the protractor accurately with vertex points.

Importance of Protractors in Technical Drawing

Protractors provide angle measurement and verification essential in many professional drawings.

• Ensures angular accuracy in architectural, mechanical, and process diagrams.
• Facilitates construction of angles for components such as roof pitches or machine parts.
• Allows verification of existing angles to maintain drawing standards.
• Supports compliance with Kenya Bureau of Standards (KEBS) angle tolerances.
• Enables angular dimensioning in engineering and design documentation.

How to Measure and Draw Angles Using a Protractor

Accurate angle construction involves systematic steps.

1. Place the protractor’s center hole exactly over the angle vertex.
2. Align the baseline of the protractor with one side of the angle.
3. Read the degree measurement where the other side of the angle crosses the protractor scale.
4. To draw an angle, mark the required degree on the paper using the protractor scale.
5. Remove the protractor and use a ruler or straightedge to connect the vertex to the marked point.
6. Double-check the angle with the protractor for accuracy.

Common Problems When Using Protractors and Solutions

Recognizing and correcting mistakes ensures precision.

• Misplacing the center hole leads to incorrect angle measurement.
• Reading the wrong scale (inner vs. outer) causes errors; always verify scale orientation.
• Parallax error occurs when viewing the scale at an angle; view directly above.
• Using damaged or faded protractors reduces reading clarity.
• Ignoring verification steps may propagate errors in complex drawings.

1.1.4 Engineering Drawing Set

Components of an Engineering Drawing Set

An engineering drawing set bundles essential instruments for precision drawing.

• T square for horizontal lines and set square alignment.

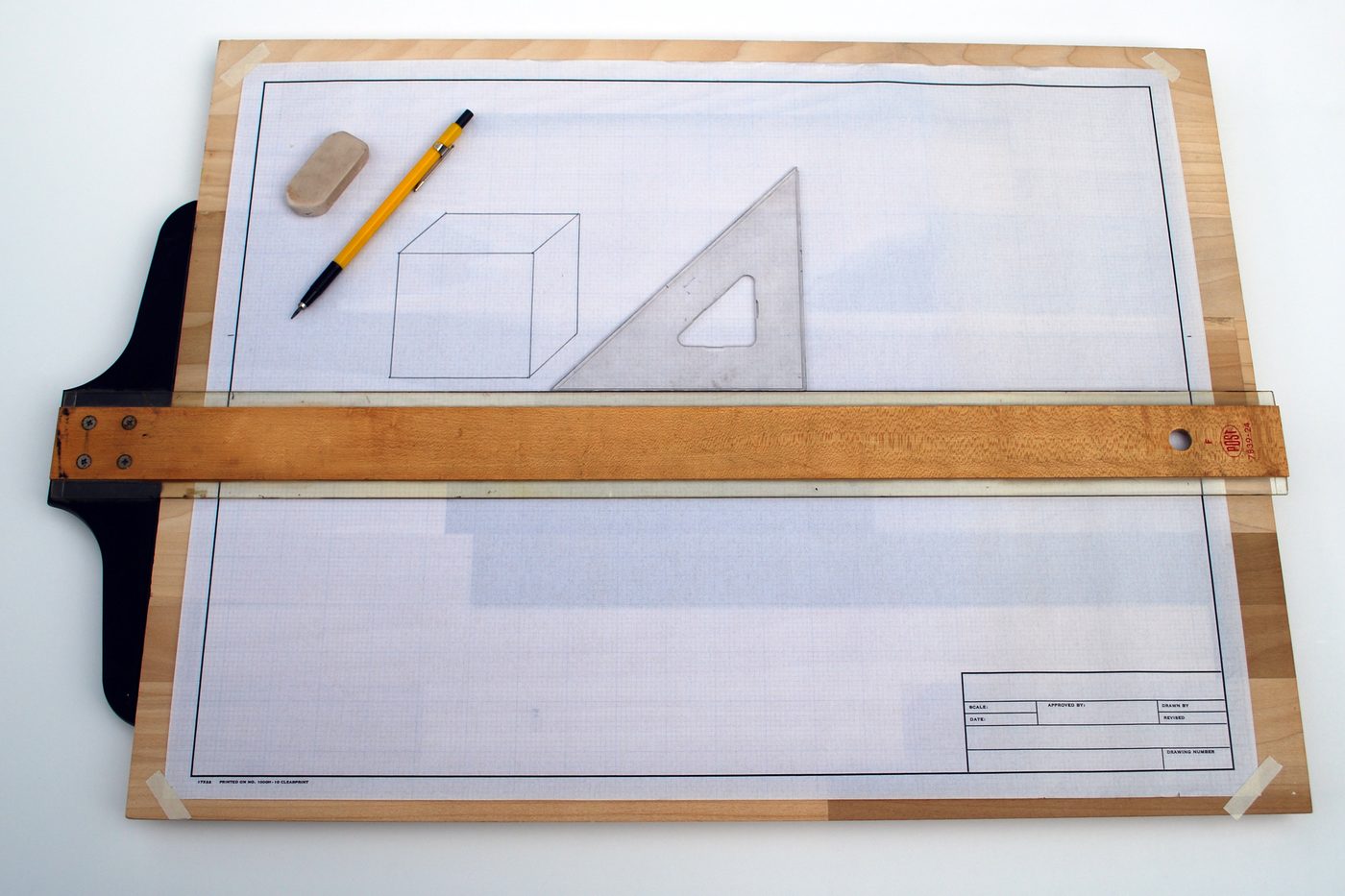

A T-square on a drawing board (Source: Wikimedia Commons)

• Set squares (30°-60° and 45°) for vertical and angled lines.

• Protractor for angle measurement.

• Compass for drawing arcs and circles with adjustable radius.

• Dividers for transferring measurements and marking equal distances.

• Scale ruler graduated in metric units for accurate measurement and scaling.

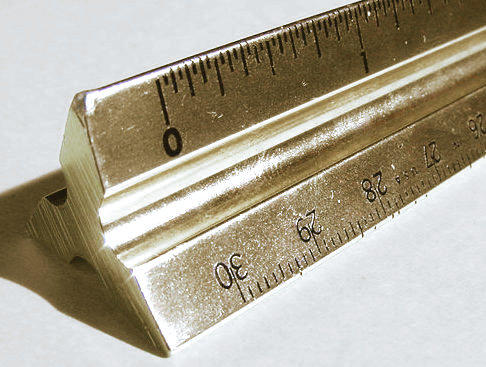

Triangular scale ruler used in civil engineering (Source: Wikimedia Commons)

Importance of an Engineering Drawing Set in Professional Practice

Having a complete set streamlines technical drawing processes across disciplines.

• Ensures availability of all necessary tools in one package.
• Promotes efficiency by reducing tool search time.
• Supports accuracy by providing calibrated instruments.
• Facilitates standard compliance with Kenya Bureau of Standards and ISO drawing conventions.
• Enhances professionalism in presentations and documentation.

How to Use Engineering Drawing Set Tools Together

Integration of tools leads to comprehensive and precise drawings.

• Use the T square as a base for aligning set squares to draw vertical and angled lines.
• Employ the protractor to verify angles created with set squares or freehand.
• Draw circles and arcs with the compass set to precise radii.
• Transfer measurements between drawing sections using dividers.
• Apply the scale ruler to measure and convert dimensions according to drawing scale.

Maintenance and Storage of Engineering Drawing Sets

Proper care extends tool lifespan and maintains functionality.

• Clean tools after each use to remove ink, graphite, and dust.
• Store in a rigid case to prevent damage during transport.
• Periodically check for wear or damage, replacing parts as needed.
• Avoid exposure to extreme temperatures or moisture that can warp plastic or rust metal parts.
• Lubricate moving parts of compasses and dividers to ensure smooth operation.

Chapter Summary

This chapter covered the essential drawing equipment required for technical drawing, including the T square, set square, protractor, and the comprehensive engineering drawing set, each serving specific functions in creating accurate drawings. It also detailed the various drawing materials such as different types of drawing papers, masking tape, clips, drawing boards, and clutch pencils, explaining their roles in supporting the drawing process. The correct use of these tools and materials was emphasized to ensure precision and quality in technical drawings. Additionally, the chapter highlighted important maintenance practices to preserve the condition and accuracy of drawing equipment, ensuring longevity and consistent performance. Understanding how to properly handle and care for these tools is crucial for producing professional technical drawings. Overall, the chapter provided a thorough foundation for selecting, using, and maintaining the tools and materials essential in technical drawing.
