Stand-alone solar photovoltaic (PV) systems provide reliable, off-grid power solutions critical for diverse sectors across Kenya, including remote health clinics, rural schools, and agricultural cooperatives. Understanding the correct installation and termination of solar PV system components ensures optimal performance and longevity, safeguarding investments and service continuity. This chapter explores the detailed procedures and technical considerations involved in connecting and terminating the components of stand-alone solar PV systems, emphasizing practical applications suitable for Kenya’s varied professional environments.
The termination of solar PV system components involves securely connecting each part to ensure efficient energy flow, safety, and system reliability. Proper termination prevents energy losses, electrical faults, and hazards, which is especially important in settings such as county referral hospitals or remote SACCO offices where uninterrupted power supply is crucial. This section covers the essential connections and terminations for both direct current (DC) and alternating current (AC) circuits in stand-alone solar PV systems.
Correct polarity ensures that the positive and negative terminals of each component align properly, preventing reverse currents that can damage equipment. For instance, at a rural health dispensary powered by solar, reversing polarity in battery connections can cause irreversible damage to the charge controller and battery bank.
Conductors must be sized based on current load, voltage drop, and environmental conditions to minimize energy losses and overheating risks. For example, a tea cooperative in Kericho ensures DC cables have adequate cross-sectional area to handle peak currents during sunny periods without excessive voltage drop, preserving system efficiency.
Specialized DC connectors such as MC4 or insulated ring terminals provide secure, weather-resistant connections that withstand corrosion and mechanical stress. At a county government office in Kisumu, using proper connectors reduces maintenance needs and prevents accidental disconnections.
Protective devices on DC lines prevent damage from overcurrents or short circuits. In a remote secondary school, installing DC fuses near the battery bank safeguards expensive components and ensures quick fault isolation.
The photovoltaic module is the primary energy harvesting unit, converting sunlight into electrical energy. Proper termination of PV modules is vital to maximize power output and ensure durability.
PV modules typically have two terminals marked positive and negative, designed to connect easily with MC4 connectors for reliable contact. At a university solar research facility, ensuring clean, tight terminal connections optimizes power transfer and reduces the risk of arcing.
Connecting modules in series increases voltage, while parallel connections increase current. For a commercial hotel in Mombasa, configuring arrays appropriately allows matching voltage and current requirements of the system’s charge controller and inverter.
Sealing and weatherproofing PV module connections protect against moisture ingress and corrosion. A coffee farmers’ cooperative near Nyeri uses silicone sealants and protective covers to maintain module terminal integrity through rainy seasons.
The charge controller regulates battery charging, protecting batteries from overcharge and deep discharge, crucial for system health in any sector, such as a county referral hospital.
Charge controllers have clearly marked input terminals from PV modules and output terminals to batteries and loads. Correct identification prevents wiring errors which could lead to malfunction or damage.
The controller must first be connected to the battery before PV modules to avoid damage. For example, at a SACCO office in Eldoret, technicians follow this sequence to protect the charge controller electronics.
Proper grounding of the charge controller chassis and terminals reduces electrical shock risk and improves system stability. A retail business in Nakuru implements grounding according to Kenyan electrical standards to comply with safety regulations.
Batteries store electrical energy for use when sunlight is insufficient, requiring careful termination to ensure safety and longevity.
Batteries use posts or bolt terminals that must be clean and tight to avoid resistance and heat buildup. In a county water supply office in Meru, routine cleaning of battery terminals prevents sulfation and ensures reliable power availability.
Series connections increase voltage, parallel increase capacity; configurations depend on system design. An agricultural cooperative in Kitui designs their battery bank to provide 24V at high capacity by combining series-parallel arrangements.
Insulating battery terminals prevents accidental short circuits and improves safety in busy environments like a university campus. Plastic terminal covers are standard at a technical training institute in Kisii.
The load comprises the electrical devices powered by the solar system, requiring proper connection to ensure safety and functionality.
Load terminals are often marked and connected via appropriate gauge wires to handle expected current. At a health centre in Bungoma, clear labeling prevents accidental overloads and facilitates maintenance.
Circuit breakers or fuses protect loads from faults, essential in settings like a county government office where sensitive IT equipment is powered.
Some systems include load controllers or timers to optimize energy use, such as at a hotel in Naivasha where lighting circuits are switched off automatically to conserve battery power.
The AC side of a stand-alone system involves converting DC to AC for appliances requiring alternating current, often used in offices or homes.
AC output terminals from the inverter connect to distribution boards or directly to appliances. For example, a retail shop in Kisumu connects inverter AC output to a small distribution board to power lighting and registers.
Compliance with Kenyan electrical standards requires using proper connectors, conduit, and wire sizing for safety and durability.
Circuit breakers and residual current devices (RCDs) protect users and equipment from faults and leakage currents, critical in environments like county hospitals.
This section emphasizes the importance of quality termination procedures to maintain system performance over time.
Regular inspection for corrosion, tightness, and insulation integrity ensures continued optimal operation, such as in a university solar installation.
In case of damaged connectors or cables, re-termination must follow manufacturer guidelines to maintain warranty and safety standards.
Proper labeling of PV strings and connection points facilitates troubleshooting and system upgrades at institutions like a county referral hospital.
Further details on maintaining and safely terminating charge controller connections enhance system reliability.
Applying correct torque on terminal screws avoids loose connections or damage; technicians at a SACCO office follow manuals precisely.
Neat cable routing reduces mechanical strain and electrical interference, contributing to longer component life.
Modern charge controllers may allow firmware updates and diagnostics via terminals, improving performance in dynamic environments like a county government office.
Additional focus on battery connection safety and maintenance ensures system resilience.
Connecting batteries in the correct sequence minimizes spark risks, especially important in confined battery rooms at agricultural processing plants.
Proper ventilation around battery terminals prevents accumulation of explosive gases, a critical safety measure in hospitals.
Measuring terminal resistance helps detect corrosion or loose connections, maintaining efficient charge acceptance.

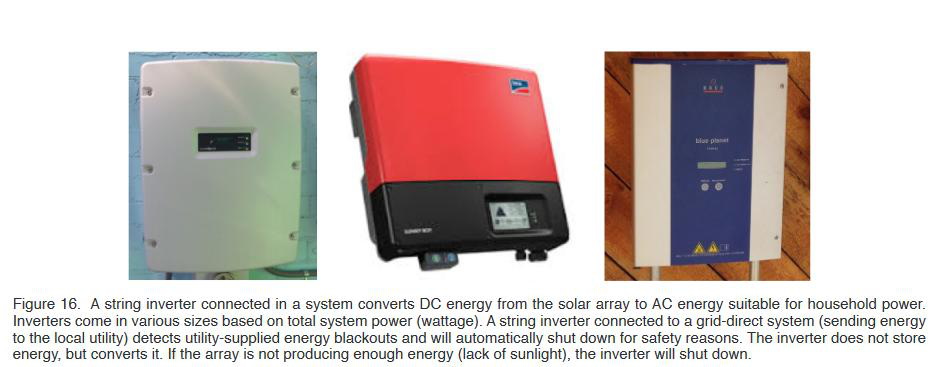

The inverter converts DC from batteries to AC for general use, requiring precise termination for safety and efficiency.
Clear marking and secure connection of inverter terminals prevent wiring errors that could damage the device.
Grounding the inverter chassis and neutral ensures user safety and compliance with electrical codes, practiced in county offices.
Surge protectors on inverter input and output lines safeguard against voltage spikes, important in rural retail outlets prone to lightning strikes.
Final considerations ensure loads are connected and managed optimally for system longevity.
Separating critical and non-critical loads allows prioritization during low power conditions, such as in a health clinic.
Connecting energy-efficient loads reduces battery discharge rates and extends system life, a strategy used in eco-lodges.
Incorporating meters and monitoring devices helps track consumption and plan maintenance, as implemented in a university campus solar system.
This chapter covered the termination of solar PV system components, beginning with the proper handling of DC connections to ensure safe and efficient flow of electricity. It then examined the PV module itself, focusing on correct installation and wiring techniques to maximize energy capture. The role of the charge controller was detailed, highlighting its function in regulating battery charging and protecting the system from overcharging or deep discharging. Battery termination procedures were explained to maintain system reliability and longevity. The chapter also addressed the load connections, emphasizing correct wiring to deliver power safely to appliances. Attention then shifted to AC connections, including the PV module and charge controller adaptations for alternating current systems. The inverter’s role was clarified as the device that converts DC to AC power for household use, with proper termination critical for system performance. Finally, the load on the AC side was discussed to ensure safe and effective distribution of solar-generated electricity to end-use devices.
Question 1 key points:
- Proper termination ensures secure, low-resistance connections preventing energy loss and overheating.
- Correct polarity and insulation reduce risk of electric shock and fire hazards.
- Reliable connections minimize downtime and maintenance costs, crucial for continuous power supply in educational institutions.
Question 2 key points:
- Battery type and capacity must match the energy demands to avoid frequent deep discharges that shorten lifespan.
- Maintenance such as electrolyte level checks and cleaning terminals prevents failures and ensures backup power reliability.
- Well-maintained batteries reduce operational costs and support critical healthcare equipment without interruptions.
At a rural SACCO office in Kisumu County, a stand-alone solar PV system was installed to provide reliable power for daily operations. The system includes PV modules, a charge controller, batteries, an inverter, and various loads.
Tasks:
a) Identify and explain the role of each major component in this solar PV system. (6 marks)
b) Describe the correct procedure for terminating the DC and AC connections to ensure system safety and efficiency. (6 marks)
c) Propose a maintenance schedule focusing on battery care and load management to optimize system performance. (8 marks)
a) The PV modules capture sunlight and convert it into DC electricity; the charge controller regulates this power to protect the batteries; batteries store energy for use when sunlight is insufficient; the inverter converts DC to AC power for office equipment; loads are the electrical devices powered by the system.
b) DC connections require secure, corrosion-free contacts with correct polarity and insulated terminals; use proper crimping tools and check for tightness. AC connections must be performed with the system powered down, ensuring correct phase and neutral wiring, proper earthing, and use of appropriate connectors to prevent loose contacts and hazards.
c) Maintenance schedule should include monthly battery electrolyte level checks and topping up with distilled water, quarterly cleaning of terminals and tightening of connections, periodic load assessment to avoid overload, and annual inspection of charge controller and inverter performance to detect faults early and maintain system reliability.
Question 11 (Compulsory - 20 marks)
At Mombasa County Referral Hospital, a stand-alone solar PV system is being installed to provide backup power for critical medical equipment.
a) Explain the procedure for correctly terminating the DC connections from the PV modules to the charge controller, highlighting safety and performance considerations. (10 marks)
b) Discuss how battery selection and maintenance practices affect the reliability of the backup power system and propose a maintenance schedule suitable for this hospital. (10 marks)
Question 12 (20 marks)
A private university in Kisumu plans to install a solar PV system to power its computer labs and administrative offices.
Describe the role of the inverter in this system, the types of loads it will support, and explain how AC connections should be installed to ensure safety and compliance with regulations.
Question 13 (20 marks)
A cooperative society in Nyeri is installing a solar PV system to power its offices and storage facilities.
Discuss the functions of the charge controller within the system, the common faults that may arise, and how these faults can be diagnosed and mitigated during installation and operation.
Question 14 (20 marks)
A retail business in Nakuru is upgrading its solar PV system by adding additional PV modules and batteries.
Explain the considerations and best practices for terminating PV module cables and connecting batteries in series and parallel configurations to optimize system performance and safety.
Question 11
a) Terminating DC connections involves first isolating the system to prevent electric shock. Cable ends should be stripped to the correct length without damaging the conductor. Use appropriate connectors such as MC4 to ensure waterproof and corrosion-resistant joints. Polarity must be verified to avoid reverse connections that can damage the system. Tight and secure connections reduce resistance and heat build-up. Safety gloves and insulated tools should be used throughout the process. Proper labeling of cables aids future maintenance and troubleshooting.
b) Battery selection must consider capacity, voltage, and compatibility with the charge controller and load requirements. Deep-cycle batteries are preferred for their ability to handle repeated charging and discharging. Maintenance includes regular inspection of electrolyte levels (for wet batteries), cleaning terminals to prevent corrosion, and checking charge levels. A monthly inspection and quarterly capacity testing schedule is recommended to ensure reliability. Proper ventilation must be maintained to avoid gas accumulation, enhancing safety in the hospital environment.
Question 12
The inverter converts the DC power stored in batteries into AC power to run standard university equipment such as computers, printers, and lighting. It supports both resistive and inductive loads and may include pure sine wave output for sensitive devices. AC connections must be made following Kenyan electrical codes, including proper grounding, use of circuit breakers, and cable sizing to handle load currents. Connections should be made in dry, accessible locations with clear labeling. Residual current devices (RCDs) may be installed to enhance user safety.
Question 13
The charge controller regulates battery charging by preventing overcharging and deep discharging, which prolongs battery life. It also protects against reverse polarity and may include load control features. Common faults include sensor failure, overvoltage, and overheating, which can be identified through abnormal voltage readings or system alarms. Diagnosing faults involves checking wiring, verifying sensor operation, and monitoring charge parameters. Mitigation includes proper installation, regular system checks, and replacing faulty components promptly.
Question 14
When terminating PV module cables, it is essential to use connectors compatible with the module type and ensure all connections are weatherproof and secure to prevent energy loss and hazards. Cable sizing must match current ratings to avoid overheating. For batteries, series connections increase voltage, while parallel connections increase capacity; the choice depends on system design. Proper balancing and identical battery specifications prevent uneven charging and premature failure. All connections must be tight, corrosion-resistant, and accessible for maintenance. Safety measures include disconnecting power during installation and adhering to manufacturer guidelines.
Type: Individual
| Tools & Equipment | Materials |
|---|---|
| Crimping tool | Installation board |
| Wire stripper | Solar panel |
| Screwdriver set | Solar charge controller |
| Multimeter | Battery |
| Cable ties | 4-way Consumer control unit |
| DC disconnect switch | |
| Cable 4.0 mm2 single core | |
| Cable 2.5 mm2 single core | |
| Cable 1.5 mm2 single core | |
| MC4 solar connectors | |
| Ring terminals | |
| Personal Protective Equipment (PPE): safety boots, gloves, dustcoat |
| S/N | Item | Quantity |
|---|---|---|
| 1 | Installation board | 1 Pc per Candidate, 600mm x 400mm wooden |
| 2 | Solar panel | 1 Pc per Candidate, 40W |
| 3 | Solar charge controller | 1 Pc per Candidate, 12V DC, 10A |
| 4 | Battery | 1 Pc per Candidate, 12V 100Ah |
| 5 | 4-way Consumer control unit | 1 Pc per Candidate, with circuit breakers |
| 6 | DC disconnect switch | 1 Pc per Candidate, 32A |
| 7 | Cable 4.0 mm2 single core | 3 m per Candidate |
| 8 | Cable 2.5 mm2 single core | 5 m per Candidate |
| 9 | Cable 1.5 mm2 single core | 5 m per Candidate |
| 10 | MC4 solar connectors | 4 pairs per Candidate |
| 11 | Ring terminals | 10 Pcs per Candidate |
| 12 | Crimping tool | 1 Pc per Candidate |
| 13 | Wire stripper | 1 Pc per Candidate |
| 14 | Screwdriver set | 1 set per Candidate |
| 15 | Multimeter | 1 Pc per Candidate |
| 16 | Cable ties | 1 bag per Candidate |
| 17 | Personal Protective Equipment (PPE): safety boots, gloves, dustcoat | 1 set per Candidate |
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|---|---|---|
| TASK 1: Terminate Solar PV System Components | |||
| Wore Personal Protective Equipment (safety boots, gloves, dustcoat) (Award 2 or 0) | 2 | ||
| Used wire stripper and crimping tool correctly to prepare and terminate cables (Award 3 or 0) | 3 | ||
| Applied correct cable colour coding for positive, negative and earth connections (Award 2 or 0) | 2 | ||
| Connected MC4 connectors properly on solar panel cables (Award 3 or 0) | 3 | ||
| Terminated ring terminals correctly on battery and consumer control unit cables (Award 3 or 0) | 3 | ||
| Secured cables neatly using cable ties ensuring no loose cables (Award 2 or 0) | 2 | ||
| Tested continuity and polarity of terminated cables using multimeter (Award 3 or 0) | 3 | ||
| Sub-Total | 18 | ||
| PRODUCT CHECKLIST | |||
| All terminations are secure, neat, and correctly colour-coded according to the schematic (Award 4 or 0) | 4 | ||
| Installation board dimensions verified as 600mm length x 400mm width (Award 2 or 0) | 2 | ||
| Cables correctly routed with no sharp bends or damage (Award 3 or 0) | 3 | ||
| System components correctly connected as per wiring schematic (Award 3 or 0) | 3 | ||
| Sub-Total | 12 | ||
| GRAND TOTAL | 30 | ||
Type: Individual
| Tools & Equipment | Materials |
|---|---|
| Wire stripper | Solar PV module 40W 12V |
| Crimping tool | Solar Charge Controller 12V/10A |
| Screwdriver | 12V Deep Cycle Battery 100Ah |
| Pliers | DC Disconnect Switch 32A |
| Cable 4.0 mm2 single core | |
| Cable 2.5 mm2 single core | |
| Cable lugs | |
| Insulation tape | |
| Cable ties | |
| Wood screws |
| S/N | Item | Quantity |
|---|---|---|
| 1 | Installation board | 1 Pc per Candidate |
| 2 | Solar PV module 40W, 12V | 1 Pc per Candidate |
| 3 | Solar Charge Controller 12V/10A | 1 Pc per Candidate |
| 4 | 12V Deep Cycle Battery 100Ah | 1 Pc per Candidate |
| 5 | DC Disconnect Switch 32A | 1 Pc per Candidate |
| 6 | Cable 4.0 mm2 single core | 5 m per Candidate |
| 7 | Cable 2.5 mm2 single core | 5 m per Candidate |
| 8 | Cable lugs (ring terminals) | 6 Pcs per Candidate |
| 9 | Insulation tape | 1 roll per Candidate |
| 10 | Cable ties | 1 pack per Candidate |
| 11 | Wood screws assorted | 1 pack per Candidate |
| 12 | Hand tools kit (wire stripper, crimping tool, screwdriver, pliers) | 1 set per Candidate |
| 13 | Personal Protective Equipment (PPE) - gloves, safety boots, dustcoat | 1 set per Candidate |
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|---|---|---|
| TASK 1: DC Wiring Installation | |||
| Wore Personal Protective Equipment (gloves, safety boots, dustcoat) (Award 2 or 0) | 2 | ||
| Prepared and arranged tools and materials before starting work (Award 1 or 0) | 1 | ||
| Performed housekeeping and maintained clean working area (Award 2 or 0) | 2 | ||
| Measured and cut cables accurately within ±2mm tolerance (Award 2 or 0) | 2 | ||
| Stripped and terminated cables with cable lugs correctly and securely (Award 1 mark per correctly terminated cable x3) | 3 | ||
| Connected positive and negative terminals observing correct polarity and colour coding (Award 1 mark each for correct connections at PV module, charge controller, battery) | 3 | ||
| Fixed all components firmly and level on the installation board (Award 1 mark each for fixing solar panel, charge controller, battery) | 3 | ||
| Arranged cable trunking runs straight and flat on surface with neat 90º bends (Award 2 or 0) | 2 | ||
| Installed DC disconnect switch correctly in series with battery positive terminal (Award 2 or 0) | 2 | ||
| Performed insulation and continuity tests on DC wiring (Award 2 or 0) | 2 | ||
| Sub-Total | 22 | ||
| PRODUCT CHECKLIST | |||
| Completed DC wiring connections matching wiring schematic with correct polarity and neatness (Award 4 or 0) | 4 | ||
| Wiring lengths conform to ±2mm of specified measurements (Award 3 or 0) | 3 | ||
| All components securely fixed and level on 600mm x 400mm installation board (Award 3 or 0) | 3 | ||
| Sub-Total | 10 | ||
| GRAND TOTAL | 32 | ||
