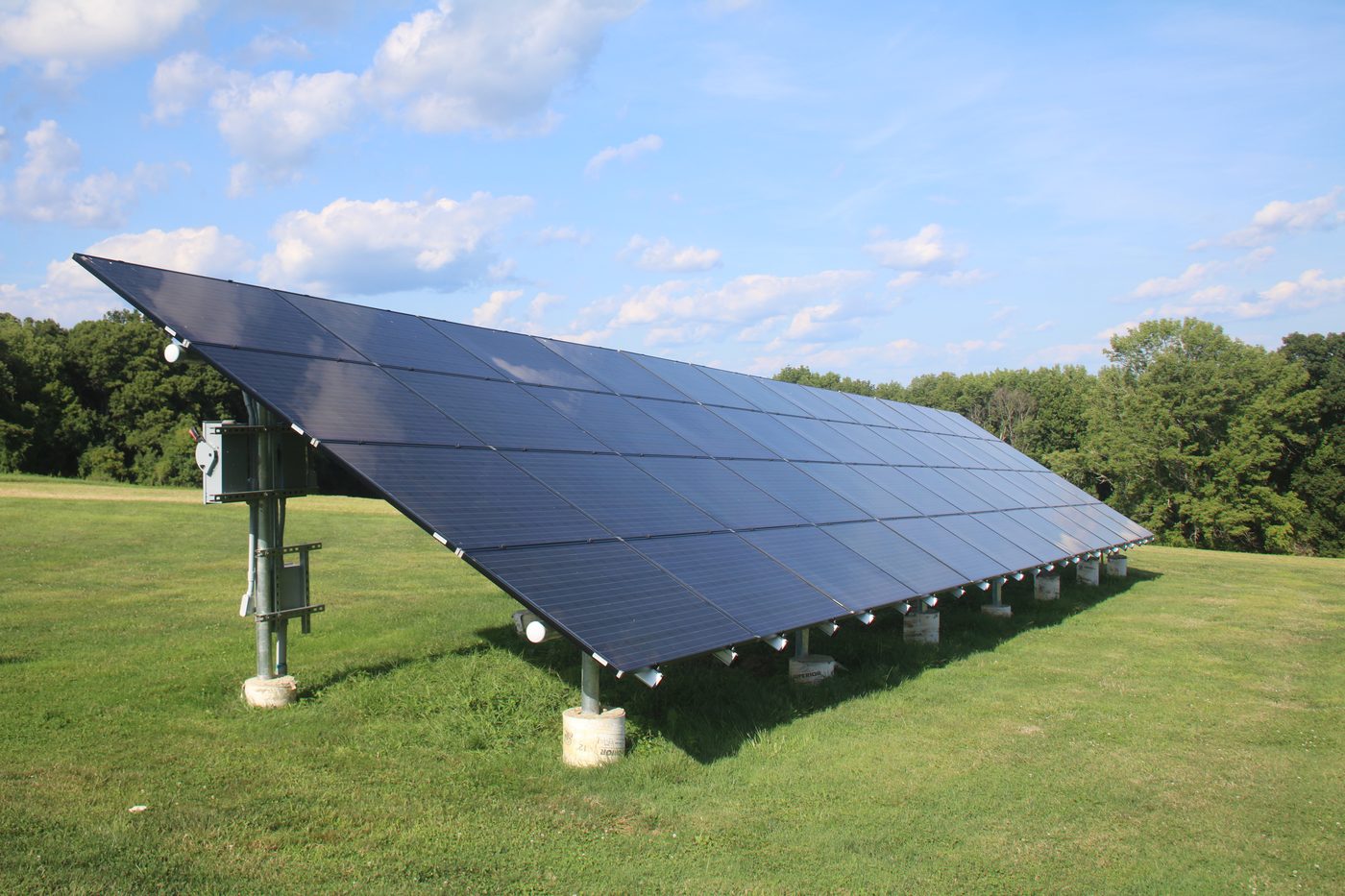

Stand-alone solar photovoltaic (PV) systems provide an essential solution for off-grid power supply across diverse sectors in Kenya, including healthcare facilities, educational institutions, agricultural cooperatives, and county government offices. Understanding the interpretation of solar PV installation drawings is critical for professionals managing or overseeing these systems to ensure correct implementation, maintenance, and troubleshooting. This chapter equips students with the skills to read and interpret electrical symbols and identify the scope of installation work from technical drawings, fostering effective communication among stakeholders and adherence to industry standards.

2.1 Drawing Standard Electrical Symbols

Electrical symbols form the universal language for conveying complex information about stand-alone solar PV systems in technical drawings. In Kenya, adherence to BS and ISO standards ensures consistency and clarity, enabling professionals from various fields to collaborate effectively. This section covers the standard symbols used in solar PV installations, their meanings, and how to recognize them in drawings related to diverse applications such as county referral hospitals, banks, and farms.

2.1.1 Identification of Common Solar PV Symbols

The ability to identify standard symbols for solar PV components is fundamental for interpreting installation drawings accurately.

• Solar Panels (Photovoltaic Modules): Represented by a rectangle with a grid or series of small cells inside, indicating the photovoltaic cells converting sunlight to electricity.

• Batteries: Shown as a pair or series of parallel lines, often with positive (+) and negative (−) terminals marked, symbolizing the energy storage unit.

• Charge Controllers: Depicted as a rectangular box with input and output connections, sometimes annotated with "CC" or control symbols, regulating battery charging.

• Inverters: Illustrated by a rectangle with sine wave symbols inside, indicating conversion from DC to AC power.
• Fuses and Circuit Breakers: Represented by symbols resembling a zigzag or a rectangle with a diagonal line, indicating protective devices.
• Wiring and Connections: Lines represent electrical conductors; solid lines for power cables, dashed for control or signal lines, with dots at junctions indicating connected wires.

2.1.2 Standards Governing Electrical Symbols in Kenya

Kenyan professionals rely on British Standards (BS) and International Organization for Standardization (ISO) conventions to maintain uniformity in drawings.

• BS 3939: Specifies graphical symbols for electrical engineering, including solar PV components.
• ISO 80416: Provides principles for graphical symbols in technical product documentation.
• Kenya Bureau of Standards (KEBS): Adopts and enforces these standards locally to ensure compatibility.
• Line Types: Solid lines for visible edges, dashed for hidden elements, and chain lines for centerlines, all standardized.
• Symbol Annotations: Use of letters and numbers to denote component specifications, such as panel wattage or battery voltage.

2.1.3 Interpretation of Symbol Combinations in Circuit Diagrams

Solar PV systems typically involve interconnected components; understanding how symbols combine clarifies system functionality.

• Series and Parallel Connections: Series connections show components linked end-to-end; parallel connections depict components connected to the same two points, affecting voltage and current.
• Flow Direction: Arrows or polarity marks indicate current flow, essential for correct wiring.
• Protective Devices Placement: Symbols for fuses or breakers are placed strategically to protect circuits from overload.
• Grounding Symbols: Indicate earthing points critical for safety, shown as a set of decreasing horizontal lines or a triangle.
• Control Devices: Switches and relays are included to show operational control points within the system.

2.1.4 Application of Electrical Symbols in Diverse Kenyan Contexts

Professionals across sectors must adapt symbol interpretation to varied system designs and documentation styles.

• Hospitals: Drawings include backup battery banks and inverters for critical equipment.
• Schools: Emphasis on solar panels and charge controllers to power lighting and ICT labs.
• Farms: Systems often integrate water pumping motor symbols alongside PV arrays.
• County Offices: Include metering devices and load controllers for efficient energy management.

Chapter Summary

This chapter focused on interpreting stand-alone solar PV installation drawings, beginning with the importance of understanding and using standard electrical symbols as per recognized conventions. It emphasized the need to accurately identify the scope of installation work from drawings to ensure clarity on project boundaries and responsibilities. Various types of electrical working drawings were examined, highlighting how each serves a specific purpose in the design and installation process. The chapter detailed the procedures for drawing different types of electrical diagrams, including block diagrams that simplify system components, layout or schematic diagrams that show component placement and connections, and wiring diagrams that provide detailed connection information. Mastery of these elements enables technicians and engineers to effectively plan, execute, and troubleshoot solar PV installations. The integration of standards throughout ensures that drawings are clear, consistent, and professional. Overall, the chapter equipped learners with the skills to accurately read, interpret, and produce essential electrical drawings for stand-alone solar PV systems.
