Discharge is a fundamental concept in hydraulic engineering, essential for the design and analysis of water conveyance structures such as canals, culverts, and stormwater drainage systems. Accurate determination of discharge velocity enables civil engineers to estimate flow rates, assess sediment transport, and design infrastructure that can withstand hydraulic forces. In Kenya, where water resource management is critical due to variable rainfall and expanding urban centers, understanding discharge velocity is vital for sustainable infrastructure development and flood control measures.
Discharge velocity quantifies the speed at which water flows through a channel or conduit, directly influencing the volume of water transported over time. Civil engineers in Kenya working on projects such as river diversion channels or irrigation canals rely on precise velocity measurements to ensure efficient water delivery and prevent structural damage caused by excessive flow speeds. This section explores the definition of discharge velocity, its relationship with discharge and cross-sectional area, methods for measuring velocity, and factors that affect it.
Discharge velocity refers to the average speed at which water particles move through a given cross-section of a channel or pipe. It is a vector quantity, commonly expressed in metres per second (m/s), representing the rate of flow in a specified direction. This velocity is not uniform across the cross-section; variations occur due to channel shape, roughness, and flow turbulence. For example, in a municipal stormwater drainage system in Nairobi, velocity tends to be higher near the center of the pipe and lower near the walls due to friction.
Discharge velocity measures how quickly water travels past a point, reflecting the dynamic aspect of flow rather than just the volume. It determines the energy available for sediment transport and influences the design of spillways and culverts to avoid erosion or deposition.
Knowing discharge velocity helps engineers size channels and pipes to carry expected flows without causing flooding or structural failure. For instance, when designing a culvert under a county road in Kisumu, engineers calculate velocity to ensure the structure can handle peak runoff without scouring the embankment.
While discharge velocity is speed, flow rate or discharge denotes volume per time, typically cubic metres per second (m³/s). Velocity multiplied by cross-sectional area yields discharge, linking the two concepts quantitatively.
Velocity profiles vary depending on flow regime, laminar or turbulent, and channel characteristics. In natural rivers like the Tana River, velocity is highest near the surface and center, decreasing toward the bed and banks due to friction.
Discharge velocity is measured in m/s, and consistent units are crucial for calculations in hydraulic engineering projects across Kenya to maintain accuracy and comparability.
The fundamental relationship connecting discharge velocity to flow volume and channel geometry is expressed by the continuity equation. This relationship is essential for designing hydraulic structures that must accommodate varying flow conditions.
Discharge (Q), velocity (V), and cross-sectional area (A) relate through the formula:
Q = V × A
where Q is the discharge in cubic metres per second (m³/s), V is the average velocity in metres per second (m/s), and A is the cross-sectional area in square metres (m²).

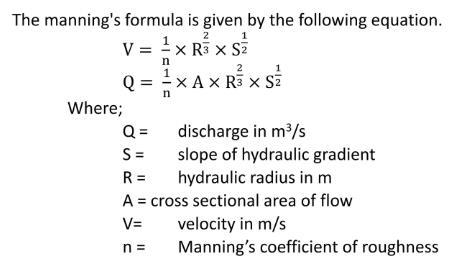

Presents Manning's formula for calculating velocity (V) and discharge (Source: DESIGNWWCET6_2026final)
An increase in velocity or cross-sectional area increases the discharge capacity. For example, when expanding a drainage canal in Mombasa to handle increased stormwater, engineers may increase the channel width (area) or adjust flow velocity through slope changes to achieve desired discharge.
Different channel shapes (rectangular, trapezoidal, circular) influence the cross-sectional area and hydraulic radius, affecting velocity distribution and discharge capacity. Irrigation canals in Meru often use trapezoidal shapes to optimize flow efficiency.
The relationship embodies the mass conservation principle in hydraulics, ensuring that water flow rate remains constant along a channel unless water is added or removed. This principle guides flow measurements along river reaches in the Athi River basin, where abstraction points alter discharge.
In rivers or constructed channels, measuring either velocity or area allows calculation of discharge, crucial for water resource allocation by entities like the Water Resources Authority (WRA) in Kenya.
Accurate measurement of discharge velocity is critical for hydraulic assessments, flood forecasting, and infrastructure maintenance. Various instruments and techniques are available, each suited to specific field conditions.
| Name | Specification | Use |
|---|---|---|
| Current Meter | Propeller or electromagnetic type, measures velocity at specific points | Used in open channels and rivers to measure point velocities |
| Weirs | Structures with known geometry (V-notch, rectangular) | Used to measure flow by relating water level to discharge |
| Flumes | Engineered constrictions with known flow characteristics | Measure discharge by water depth upstream |
| Acoustic Doppler Velocimeter (ADV) | Uses sound waves to measure velocity profiles | Suitable for detailed velocity measurements in rivers |
| Pitot Tube | Measures dynamic pressure to infer velocity | Applied in pipe flows and small channels |
Current meters measure velocity by rotating a propeller or sensing electromagnetic flow at a point. For example, in a county irrigation canal in Nakuru, current meters enable spot velocity measurements to estimate discharge.
These structures create controlled flow conditions where water depth correlates with discharge. For instance, water engineers managing a SACCO irrigation scheme in Laikipia use weirs to monitor water delivery volumes.
ADVs provide detailed velocity profiles by emitting sound pulses and analyzing reflected signals. They are valuable in research settings, such as flow studies at the University of Nairobi's hydraulic laboratory.
Pitot tubes measure flow velocity by detecting pressure differences and are practical in closed conduits like water supply pipes in hotels or hospitals.
Selecting an appropriate measurement method depends on flow conditions, accessibility, and required accuracy. Regular calibration and maintenance of instruments ensure reliable data for infrastructure planning by county water departments.
Discharge velocity is influenced by a combination of hydraulic, geometric, and environmental factors. Understanding these influences helps civil engineers design resilient water conveyance systems.
The gradient of the channel bed directly affects the velocity; steeper slopes increase gravitational force, accelerating flow. For example, rivers flowing through the Rift Valley escarpments exhibit higher velocities compared to those on flatter terrains like the Nyandarua plateau.
Surface roughness caused by bed material, vegetation, or debris increases friction, reducing velocity. In urban drainage channels within Nairobi, sediment accumulation and trash can significantly slow flow, necessitating regular maintenance.
Deeper flows with larger hydraulic radii experience less friction per unit area, allowing higher velocities. This principle guides the design of deep canals in the Tana River irrigation scheme to maximize flow efficiency.
Turbulent flow, common in natural rivers, enhances mixing and velocity variations, whereas laminar flow is smoother but less common in large channels. Understanding flow regime assists in sediment transport predictions for river engineering projects near Kisumu.
Structures such as bridge piers, culverts, and bends disrupt flow, causing velocity changes. Engineers designing culverts for county roads in Kitui must account for velocity fluctuations to prevent scour and structural damage.
Seasonal rainfall patterns influence discharge volumes and velocities, with higher velocities during rainy seasons. Temperature affects water viscosity slightly, impacting flow characteristics in reservoirs managed by the Kenya Water Towers Agency.
