Civil engineering steel works form a critical component of modern infrastructure projects across Kenya, from commercial buildings in Nairobi to bridge structures in Kisumu. Understanding how to interpret structural drawings accurately is essential for civil engineers to ensure steel elements are fabricated and installed according to design specifications. This chapter equips students with the skills to decode technical drawings, enabling effective communication between design teams and site contractors, minimizing errors, and ensuring structural safety and compliance with Kenyan standards.

3.1 Interpretation of Structural Drawing

Structural drawings are the visual language of civil engineering projects, providing detailed instructions on the dimensions, materials, and assembly of steel works. In Kenya’s construction industry, where project delays and cost overruns often result from misinterpretation, mastering these drawings is indispensable. This topic explores the various aspects of interpreting steelwork drawings to facilitate accurate execution on site.

3.1.1 Understanding the Types and Purpose of Structural Drawings

Structural drawings come in diverse forms, each serving a specific purpose in the lifecycle of steel construction projects. Recognizing these types is crucial for determining the information each drawing conveys and how it guides the fabrication and erection process.

Types of Structural Drawings

• General Arrangement Drawings: These provide an overall view of the steel structure, showing the spatial relationship between different components. For instance, a general arrangement drawing of a hospital’s steel framework indicates the positioning of columns, beams, and braces relative to the building layout.

• Detail Drawings: These focus on specific steel components, illustrating dimensions, connections, and fabrication details. For example, in a retail mall project, detail drawings specify the size and bolt pattern for steel beam connections.

• Section Drawings: Cross-sectional views reveal internal details of steel elements, such as plate thickness and reinforcement, which are not visible in plan views. A section drawing of a bridge girder might show the arrangement of stiffeners and welds.

• Isometric Drawings: Three-dimensional representations help visualize complex steel assemblies, aiding fabricators and erectors in understanding spatial configurations.

• Shop Drawings: Prepared by fabricators, these drawings translate design specifications into practical fabrication instructions, including cutting lists and welding sequences.

Purpose of Structural Drawings

• Communication Tool: Drawings convey design intent from engineers to fabricators and site personnel, ensuring all parties share a common understanding.
• Quality Control: They provide benchmarks against which fabricated steel components are inspected and verified.
• Scheduling and Coordination: Drawings assist project managers in sequencing steel deliveries and installations to optimize site workflow.
• Compliance Verification: Structural drawings ensure that steel works conform to Kenyan standards such as the Kenya Bureau of Standards (KEBS) and National Construction Authority (NCA) regulations.
• Cost Estimation: Accurate interpretation helps quantity surveyors derive precise material quantities, avoiding wastage and budget overruns.

3.1.2 Reading and Interpreting Symbols and Notations on Steelwork Drawings

Steelwork drawings utilize standardized symbols and notations to represent materials, connections, and fabrication methods. Proficiency in decoding these graphical elements is fundamental for correct execution.

Common Symbols and Their Meanings

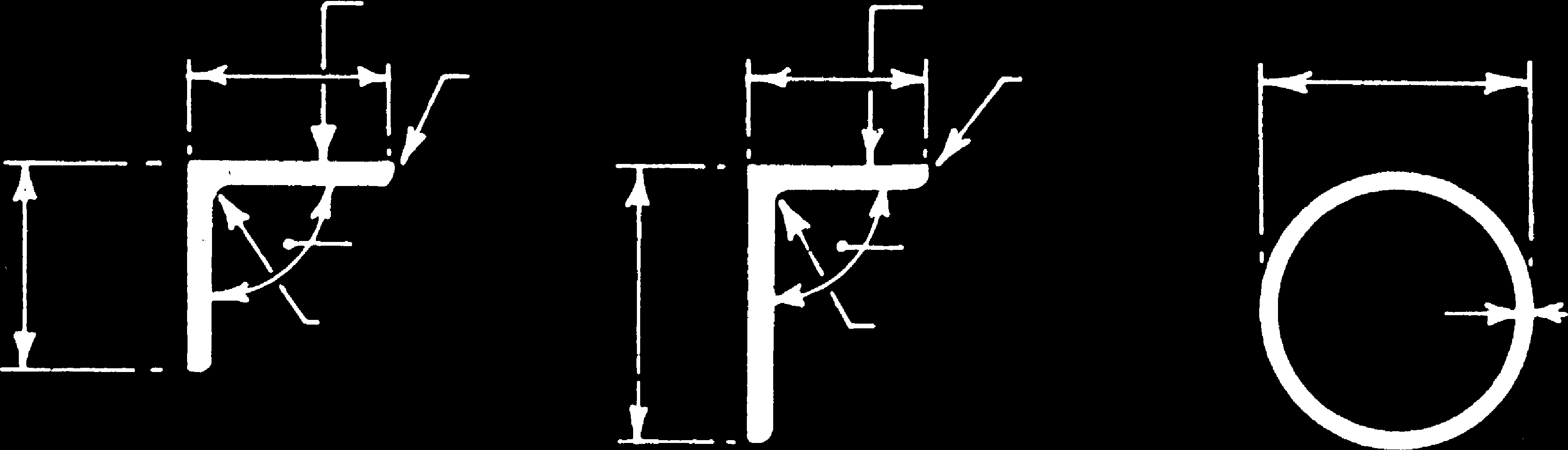

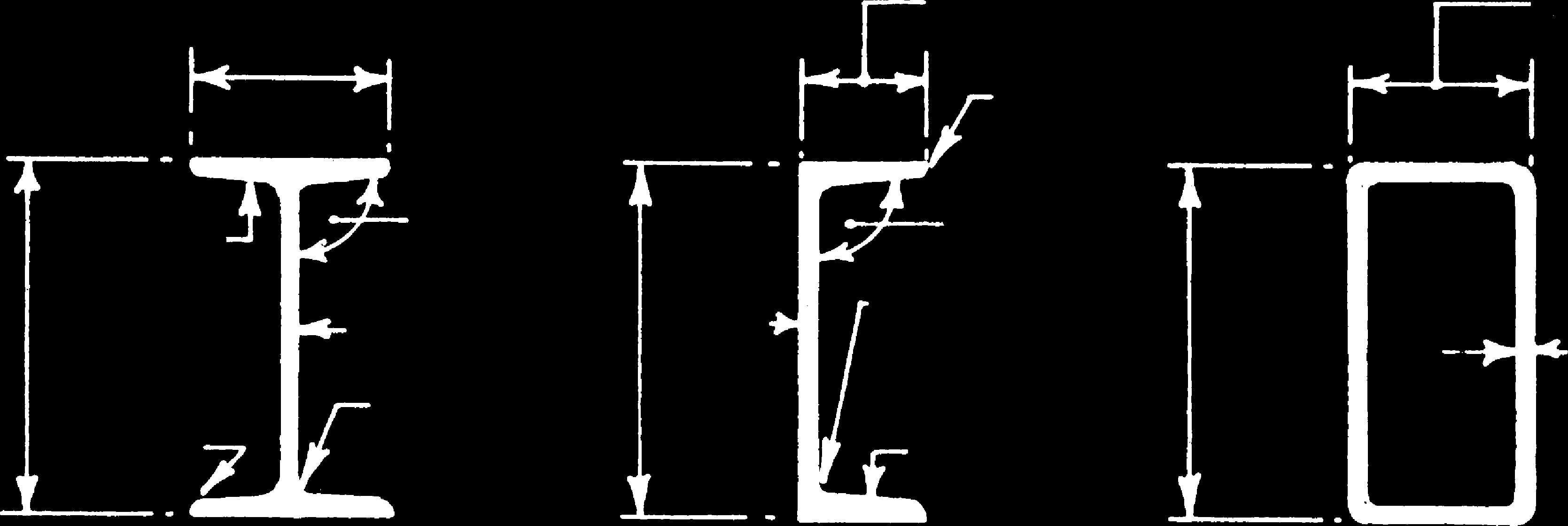

• Steel Section Symbols: Indicate the shape and size of steel members, such as I-beams (denoted as UB for Universal Beams), channels (UC), angles (L), and hollow sections (CHS). For example, a "UB 203x133x25" specifies a Universal Beam of 203 mm depth, 133 mm flange width, and 25 kg/m weight.

• Welding Symbols: Show the type, size, and location of welds. Symbols may indicate fillet welds, groove welds, or plug welds, essential for structural integrity.

• Bolt Symbols: Specify bolt type, diameter, and arrangement. High-strength bolts are common in Kenya’s commercial buildings, and drawings indicate bolt grades such as 8.8 or 10.9.

• Surface Finish and Treatment Marks: Indicate painting, galvanizing, or other protective coatings necessary for durability, especially in coastal or industrial environments.
• Dimensioning and Tolerances: Precise measurements with allowable deviations are marked, guiding fabricators to maintain fit and alignment.

Notation Conventions

• Scale Indication: Drawings are scaled representations; common scales include 1:50 for general arrangement and 1:10 for details. Engineers and site personnel must adjust measurements accordingly.
• Grid References: Structural drawings use grid lines labeled with numbers and letters to pinpoint locations of steel elements, facilitating coordination with architectural plans.
• Notes and Legends: Additional instructions or clarifications are provided in notes sections, often specifying material grades, welding procedures, or installation sequences.
• Revision Marks: Indicate updates or changes to the original drawings, critical for ensuring that the latest design is implemented on site.

3.1.3 Interpreting Dimensions and Specifications for Steel Components

Accurate interpretation of dimensions and material specifications is vital for fabricating steel components that fit precisely within the overall structure. This subtopic focuses on understanding measurement conventions and material requirements.

Structural drawings present dimensions in millimeters, reflecting Kenya’s adoption of the metric system. Dimensions are given as linear measurements, thicknesses, and angles. For example, a beam length may be indicated as 6000 mm, with flange thickness of 12 mm and web thickness of 8 mm.

Specifications include:

• Material Grade: Steel grades such as S275 or S355 define mechanical properties like yield strength, influencing the member’s load-bearing capacity.
• Surface Treatment: Specifications might require hot-dip galvanizing for corrosion resistance, especially in infrastructure exposed to harsh weather.
• Connection Details: Bolt sizes, welding types, and splice lengths are specified to ensure structural continuity and safety.
• Tolerances: Permissible deviations in dimensions ensure components remain within acceptable limits for assembly.

Interpreting these details correctly enables fabricators at workshops in Nairobi or Mombasa to produce steel elements that comply with design requirements, reducing rework and delays.

3.1.4 Coordinating Structural Drawings with Other Construction Documents

Structural drawings do not exist in isolation; they must be integrated with architectural, mechanical, and electrical drawings for a coherent construction process. Coordination prevents clashes and ensures smooth installation of steel works.

Coordination involves:

• Cross-referencing Drawings: Checking grid lines and reference points across disciplines to ensure alignment.
• Reviewing Specifications: Ensuring material and dimension consistency between structural and architectural documents.
• Identifying Conflicts: Detecting and resolving clashes such as steel beams interfering with HVAC duct routes.
• Consulting Project Teams: Engaging architects, engineers, and contractors in joint reviews to harmonize drawings.
• Updating Drawings: Issuing revised drawings reflecting agreed changes, maintaining clear communication channels.

Effective coordination enhances project efficiency and contributes to the structural integrity and functionality of civil engineering projects across Kenya.

Chapter Summary

This chapter covered the essential skills required to perform civil engineering steel works, beginning with the interpretation of structural drawings which is critical for understanding the specifications and layout of steel components in construction projects. It then detailed the various tools and equipment used in steel works, including the hacksaw, angle grinder, bench vice, cutting torch, clamps, measuring tape, steel rule, try square, marking gauge, centre punch, and welding machine, each serving a specific purpose in shaping and assembling steel elements. The process of cutting steel bars was explained, emphasizing accuracy and safety to ensure proper fit within the structure. Bending steel bars was also discussed, highlighting techniques to achieve the required shapes without compromising the material’s integrity. Finally, the chapter addressed the fixing of steel bars, focusing on correct placement and securing methods to maintain structural stability. Together, these topics provide a comprehensive foundation for executing steel works effectively in civil engineering projects.
