Superstructure works form the visible part of a building above its foundations, encompassing key elements such as columns, beams, walls, doors, and windows. Accurate execution of these components is critical to structural integrity and architectural fidelity. In Kenya, civil engineers often collaborate with contractors and quantity surveyors to ensure that superstructure works conform strictly to design specifications, regulatory standards, and client expectations. This chapter focuses on the precise setting out of superstructure components, a fundamental step that guides all subsequent construction activities.

1.1 Setting Out Superstructure Components

Setting out is the process of transferring building designs from drawings onto the physical site with exactness. This activity demands thorough understanding of construction drawings, mastery of alignment tools, and meticulous marking of structural elements. Proper setting out ensures that columns, beams, walls, and openings are positioned correctly to uphold safety, functionality, and aesthetics.

1.1.1 Read and Interpret Drawings

Reading and interpreting drawings is the cornerstone of accurate setting out. Civil engineers must be adept at understanding various types of construction drawings including architectural, structural, and services plans.

Types of Drawings Used in Superstructure Works

• Architectural Drawings: These provide the layout, dimensions, and appearance details of the building, including the location of walls, doors, windows, and finishes. For example, a hotel project in Mombasa requires precise architectural plans to ensure guest rooms are correctly sized and positioned.
• Structural Drawings: These specify the size, reinforcement, and placement of structural elements such as columns and beams. In a county government office, structural drawings ensure that load-bearing components meet safety standards.
• Detail Drawings: Provide enlarged views of complex areas like beam-column joints or window openings, critical for precise execution.
• Setting Out Drawings: These are simplified plans that highlight key reference points and coordinates for site measurements.
• Service Drawings: Show the integration of electrical, plumbing, and HVAC systems within the superstructure.

Understanding Drawing Scales and Symbols

• Drawing Scales: Engineers must convert scaled measurements to real-world dimensions. For example, a 1:100 scale means 1 cm on paper equals 1 m on site.
• Symbols and Notations: Recognizing standard symbols for doors, windows, columns, and beams is vital. Misinterpretation can lead to misplaced elements, as seen in some school construction projects where door openings were incorrectly sized.

• Grid Lines and Coordinates: Grids help locate structural elements precisely. Engineers use these to cross-check positions during setting out.

• Section and Elevation Indicators: These guide vertical positioning and alignment of components.

• Revision Marks: Awareness of drawing updates prevents working from outdated plans.

Extracting Critical Dimensions for Setting Out

• Overall Building Dimensions: Define the footprint and boundaries.
• Column Grid References: Provide exact locations for columns.
• Beam Lengths and Heights: Determine beam placement and elevation.
• Wall Thickness and Positioning: Affect load distribution and interior layout.
• Opening Sizes and Locations: Essential for doors and windows.

Cross-Referencing Drawings for Accuracy

• Comparing architectural and structural plans avoids conflicts such as beam clashes with window openings.
• Coordination with services drawings ensures no interference occurs between structural elements and utilities.
• Regular consultation with project engineers and architects reduces errors during setting out.

1.1.2 Use of Alignment Tools (Plumb Bob, Laser Levels)

Precision in setting out depends on the correct use of alignment tools to establish vertical and horizontal references.

Plumb Bob: Specification and Use

• The plumb bob is a simple tool that uses gravity to create a vertical line.
• It is essential for checking the verticality of columns and walls.
• At a retail business construction site in Nairobi, plumb bobs ensure that tall columns remain perfectly upright.
• Regular inspection for string wear and bob weight integrity maintains accuracy.

Laser Levels: Specification and Use

• Laser levels provide precise horizontal and vertical alignment over long distances.
• They are faster and more accurate than traditional spirit levels.
• In multi-storey hospital construction, laser levels help maintain consistent floor elevations.
• Calibration before use and protection from dust extend tool lifespan.

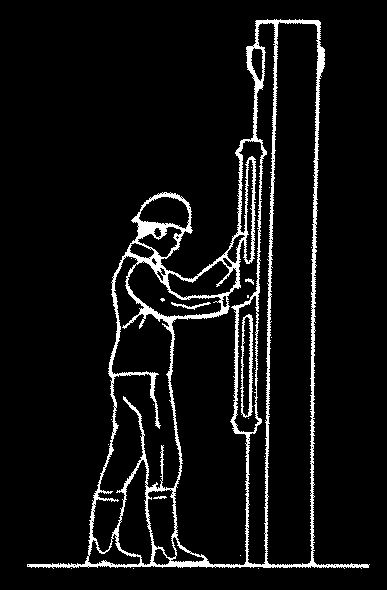

Using Spirit Levels and Theodolites

• Spirit levels verify small horizontal distances and angles.
• Theodolites measure horizontal and vertical angles for complex alignment tasks.
• For a SACCO office building, theodolites assist in setting out foundation corners accurately.

Integration of Tools During Setting Out

• Combining plumb bobs with laser levels ensures both vertical and horizontal accuracy.
• Sequential use: laser levels establish baseline levels, plumb bobs check verticality, and spirit levels verify short distances.
• Proper training in tool handling minimizes human error.

1.1.3 Positioning of Columns, Beams, and Walls

Correct positioning of structural elements is critical to the building’s load distribution and overall stability.

Positioning Columns

• Columns must be set out precisely at grid intersections per structural drawings.
• Accurate positioning ensures the load path transfers safely to foundations.
• In a county government office project, misaligned columns led to costly rework and delays.
• Use of marked gridlines and verified coordinates is essential.
• Temporary stakes and strings help maintain position during construction.

Positioning Beams

• Beams connect columns and support slabs; their position affects structural integrity.
• Setting out beams involves marking start and end points relative to columns.
• Beam heights must be established using laser levels to maintain floor levels.
• Overhanging or misaligned beams can compromise load distribution, as observed in a university library construction.
• Coordination with reinforcement drawings ensures proper beam layout.

Positioning Walls

• Walls are positioned according to architectural plans, factoring in thickness and alignment with columns.
• Load-bearing walls require precise alignment with foundations and columns.
• Partition walls need accurate placement for interior space planning.
• In a retail business, incorrect wall positioning led to unusable store layouts.
• Marking reference lines with paint or chalk improves visibility during masonry.

Use of Control Points and Reference Lines

• Control points established from setting out drawings serve as benchmarks.
• Temporary reference lines using strings or chalk lines guide positioning.
• Rechecking control points periodically prevents cumulative errors.
• Control points are essential in large projects like hospitals where multiple teams work simultaneously.

1.1.4 Verification of Alignment with Design Specifications

Verification ensures that the set out elements conform exactly to design parameters, preventing structural faults and rework.

Checking Horizontal and Vertical Alignment

• Use laser levels and plumb bobs to verify that columns and walls are vertical.
• Spirit levels check beam horizontal alignment.
• For example, during a school construction project, regular verticality checks prevented column leaning.

Dimensional Verification Against Drawings

• Measure distances between columns, walls, and openings using tape measures and total stations.
• Confirm that dimensions match those specified in drawings within allowable tolerances.
• Discrepancies must be reported and corrected immediately.

Use of Surveying Instruments for Accuracy

• Total stations and theodolites provide precise coordinate measurements.
• In complex projects like a county hospital, these instruments ensure alignment across large sites.
• Data logging enables comparison with design coordinates.

Documentation and Approval Processes

• Verification results are documented in site diaries or setting out records.
• Approval from project engineers or supervisors is required before proceeding.
• This formal process reduces risks of errors propagating into later construction stages.

Corrective Actions Upon Misalignment

• Identify causes such as measurement errors or ground movement.
• Realign elements by repositioning markers or adjusting formwork.
• Communicate changes promptly to all site teams.

1.1.5 Marking for Door and Window Openings

Marking openings accurately is essential for fitting frames and finishing works.

Locating Openings Using Drawings

• Extract door and window sizes and positions from architectural plans.
• Mark opening edges relative to wall reference lines.
• For example, a hotel project in Kisumu requires precise window positioning to optimize natural lighting.

Marking Techniques on Site

• Use chalk lines, paint, or nails to indicate opening boundaries on masonry walls.
• Temporary templates may be used to check dimensions.
• Clear markings prevent errors during block laying or formwork installation.

Ensuring Vertical and Horizontal Accuracy

• Use plumb bobs to verify vertical edges of openings.
• Laser levels set consistent sill and lintel heights.
• This ensures doors and windows fit properly and operate smoothly.

Coordination with Other Trades

• Communicate opening locations to carpenters and glazing contractors.
• Adjust markings if services such as electrical conduits intersect openings.
• In a SACCO office, such coordination reduced delays during door frame installation.

Marking for Different Types of Openings

• Standard doors, windows, sliding doors, and ventilation openings each require specific marking considerations.
• Dimensions for frames, clearances, and finishes are noted.
• Accurate marking facilitates procurement of correctly sized frames.

Chapter Summary

This chapter focused on the execution of superstructure works, beginning with setting out superstructure components by interpreting drawings, using alignment tools such as plumb bobs and laser levels, and accurately positioning columns, beams, and walls while marking door and window openings. It then explored the construction of superstructure components, detailing the erection of walls and columns with various materials, installation of beams and floor slabs, and techniques for both load-bearing walls and non-load-bearing partitions. The fitting and installation section covered the proper installation of doors, windows, roof structures including trusses and rafters, along with weatherproofing, insulation, and interior components like stairs and partitions. Inspection procedures were emphasized, including load testing, verification of alignment and levels, ensuring compliance with building codes, and thorough documentation for sign-off. Finally, the chapter addressed civil work finishes by applying external finishes such as plaster, cladding, and painting, installing insulation and thermal systems, completing architectural features, and maintaining both structural integrity and aesthetic quality throughout the process.
