Topographic surveying is a fundamental activity in civil engineering projects, providing detailed information about the natural and artificial features of a site. Accurate topographic data ensures proper design, planning, and execution of infrastructure such as roads, bridges, and buildings. In Kenya, where terrain varies widely from urban areas in Nairobi to rural highlands, the choice and calibration of survey tools directly impact project success and cost-effectiveness.

2.1 Topographic tools and equipment Basic Surveying Tools

Topographic surveys require specialized instruments that measure angles, distances, and elevations with precision. The selection of appropriate tools depends on the survey scale, terrain complexity, and project requirements. In Kenyan civil engineering practice, commonly used equipment include theodolites, total stations, levels, GPS receivers, and electronic distance measurement (EDM) devices. Understanding the capabilities and limitations of each tool is essential for delivering reliable survey data.

2.1.1 Theodolites: Types and Applications

Types of Theodolites

• Transit Theodolite: Allows full rotation of the telescope and is commonly used for detailed angle measurements in road and building construction.

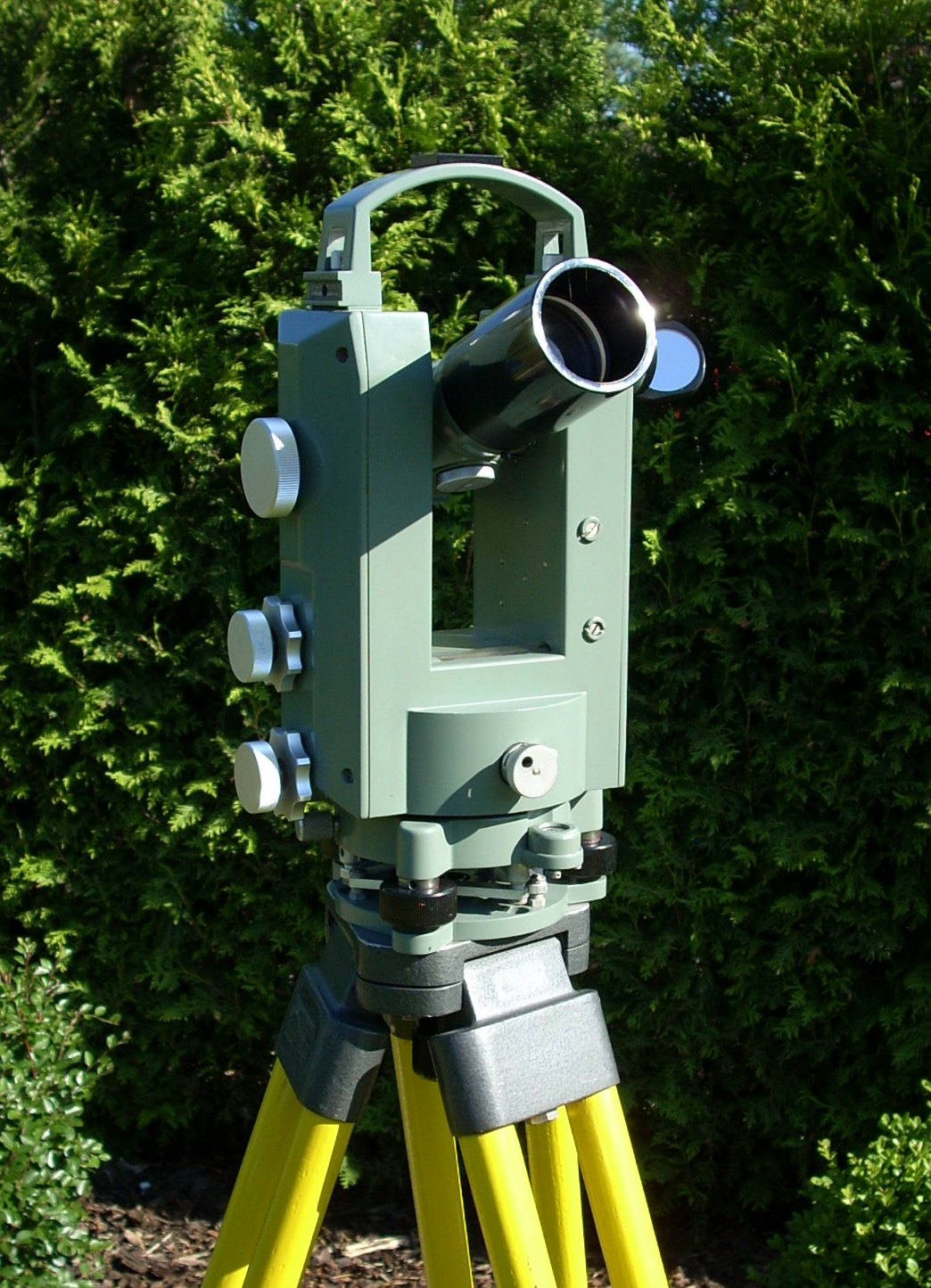

Transit theodolite on tripod outdoors (Source: Wikimedia Commons)

• Non-Transit Theodolite: Limited telescope rotation, used in less complex surveys.

• Digital Theodolite: Provides electronic angle readings, reducing human error and speeding data collection.

• Optical Theodolite: Traditional model relying on optical readings, still in use for basic tasks.

• Total Station: Integrates theodolite functions with EDM and data storage, streamlining topographic surveys.

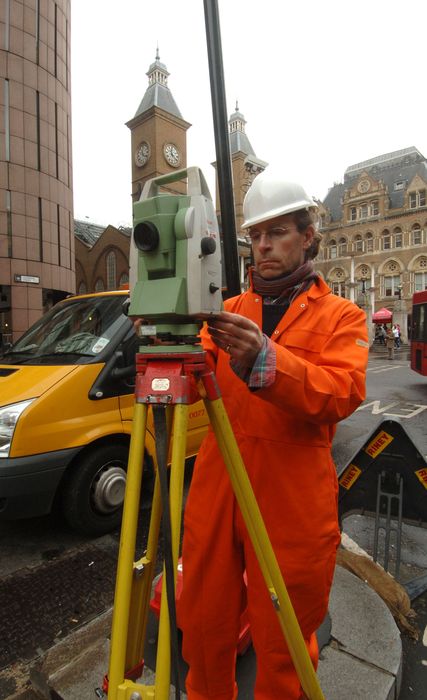

Surveyor using a total station on site (Source: Wikimedia Commons)

Theodolites are vital for establishing horizontal and vertical control networks, which form the backbone of accurate topographic mapping in projects like university campus expansions or highway realignments.

2.1.2 Levels and Levelling Instruments

Levelling instruments determine differences in elevation between points, crucial for grading and drainage design.

Common Types of Levels

• Dumpy Level: Simple and robust, widely used in construction sites for quick levelling.

• Automatic Level: Self-levels using a compensator mechanism, improving accuracy.

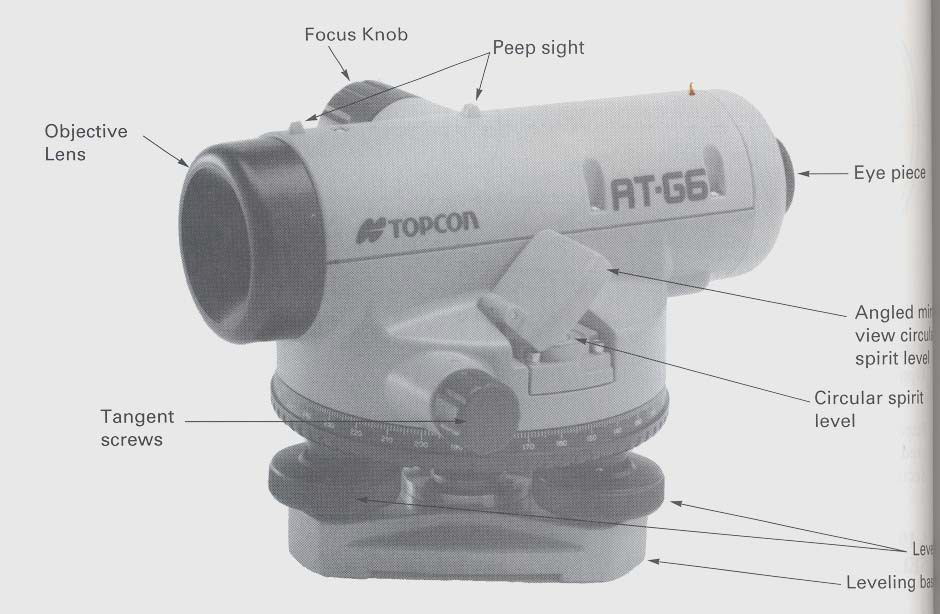

A Topcon AT-G6 automatic level used in surveying (Source: Untitled (10))

• Laser Level: Projects a laser beam for fast and accurate elevation measurements over long distances.

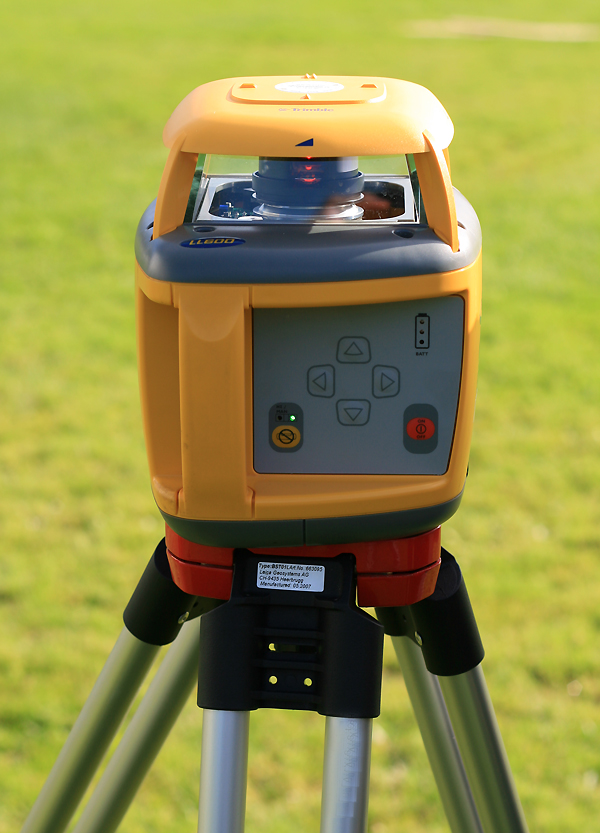

Rotary laser level on tripod (Source: Wikimedia Commons)

• Digital Level: Provides electronic readings and reduces manual reading errors.
• Water Level: Basic tool using water in a tube to find level lines, mostly for small-scale or rough work.

Levels are essential when designing foundations or road embankments, for instance, in county government road projects.

2.1.3 Electronic Distance Measurement (EDM) Equipment

EDM devices measure distances using electromagnetic waves, enabling faster and more accurate data collection compared to tape measures.

EDM equipment is extensively used in large-scale projects such as airport expansions or dam construction, where measuring long distances accurately is critical.

2.1.4 GPS and GNSS Receivers

Global Positioning System (GPS) and Global Navigation Satellite System (GNSS) receivers capture precise geographic coordinates.

• Static GPS Surveying: Used for establishing geodetic control points with high accuracy.
• Real-Time Kinematic (RTK) GPS: Provides real-time positioning for construction layout.

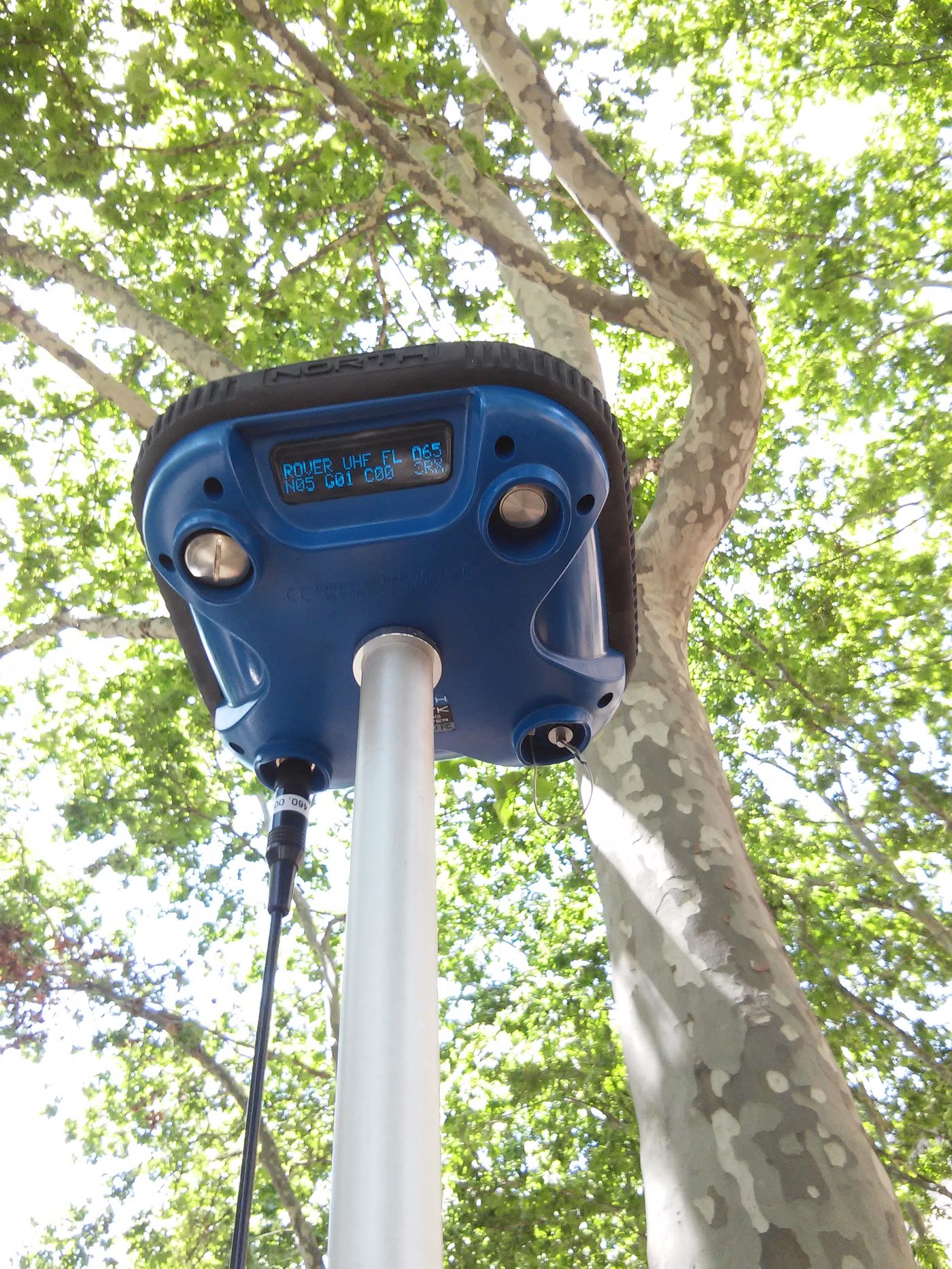

Real-time kinematic GPS receiver on pole (Source: Wikimedia Commons)

• Differential GPS (DGPS): Enhances accuracy by correcting satellite signals using base stations.

Chapter Summary

This chapter provides a comprehensive overview of conducting topographic surveys, beginning with the essential tools and equipment used in the process. It emphasizes the importance of proper calibration of these instruments, including detailed procedures for theodolite calibration focusing on collimation, leveling, and the trunnion axis, as well as sensitivity calibration for levels and accuracy checks for EDM equipment. Methods for determining horizontal distances are explored through both direct measurements using tape measures and EDM devices, and indirect techniques such as the stadia and trigonometric methods that rely on angles and vertical distances. Vertical distance measurement is addressed through direct and indirect approaches, highlighting their application in varying field conditions. The chapter also covers effective topographic data collection practices to ensure accurate representation of the surveyed terrain. Finally, it underscores the necessity of regular maintenance of tools and equipment to preserve their precision and extend their operational lifespan.
