Civil engineering projects depend heavily on accurate measurement and estimation of substructure works to ensure structural stability and cost efficiency. This chapter focuses on the principles involved in taking off quantities related to substructure elements such as foundations, footings, slabs, and beams. Proper documentation and interpretation of substructure details, including soil and foundation reports, are critical for precise estimation and successful project execution in Kenya’s construction industry. Mastery of these principles supports engineers and quantity surveyors in producing reliable bills of quantities and controlling project costs.

2.1 Documentation of Substructure Elements

In Kenya’s civil engineering practice, thorough documentation of substructure elements forms the basis for accurate quantity take-offs and cost estimation. Substructure components vary widely depending on soil conditions, foundation types, and structural requirements. Understanding how to identify, measure, and record these elements is essential for engineers and quantity surveyors working on diverse projects such as county government offices, hospitals, and retail complexes. This section dissects the key aspects of documenting substructure works.

2.1.1 Identifying Foundation Types

Foundations are critical components transferring structural loads safely to the ground. Correct identification of foundation types influences quantity takeoff and costing as different foundations have varying dimensions, materials, and construction methods.

Types of Foundations Commonly Used in Kenya

1. Strip Foundations: Continuous strips supporting load-bearing walls; usually used for light to moderate loads on firm soils.
2. Isolated Footings: Individual pads supporting columns; common for framed structures with discrete load points.
3. Raft Foundations: Large slabs covering the entire building footprint; suitable for weak or expansive soils to spread loads evenly.
4. Pile Foundations: Deep foundations transferring loads to stronger strata; used where surface soils are weak or compressible.
5. Combined Footings: Supporting two or more columns when loads are close or soil bearing capacity is low.

Characteristics Affecting Measurement

1. Dimensions: Length, width, and depth vary with foundation type and soil conditions.
2. Shape: Rectangular, square, circular, or irregular shapes affect volume calculations.
3. Reinforcement Requirements: Some foundations require more reinforcement, impacting material takeoff.
4. Excavation Method: Depth and type of excavation influence earthwork quantities.
5. Load Transfer Mechanism: Determines foundation thickness and type, affecting concrete volume.

Recognizing Foundations on Drawings

1. Plan Views: Show layout and size of footings and pile caps.
2. Section Views: Indicate depth, reinforcement, and soil layers.
3. Details: Provide specifications for materials and construction joints.
4. Notes and Legends: Explain symbols and abbreviations used.
5. Foundation Schedules: Summarize types and quantities for each foundation element.

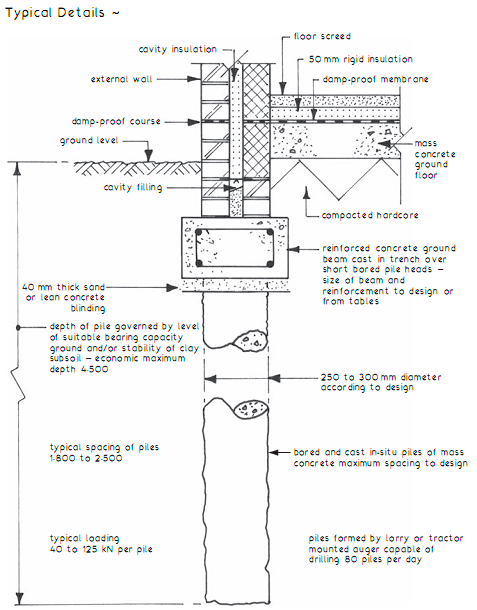

A detailed cross-section of a typical reinforced concrete pile foundat (Source: substructure-1)

2.1.2 Documenting Footings, Slabs, and Beams

Accurate documentation of footings, slabs, and beams is vital for quantity surveying and cost estimation. Each element has distinct measurement criteria that affect the overall substructure costing.

Footings Documentation

1. Dimensions: Length, width, and thickness must be recorded precisely.
2. Concrete Volume: Calculated from dimensions, considering any cut-outs or openings.
3. Reinforcement: Type, size, spacing, and length of bars documented for quantity takeoff.
4. Excavation Volume: Soil volume to be removed must be estimated.
5. Formwork Area: Surface area for shuttering documented for cost estimation.

Slabs Documentation

1. Type of Slab: Ground slabs, raft slabs, or suspended slabs affect measurement.
2. Thickness and Area: Measured from drawings and site dimensions.
3. Reinforcement Details: Including mesh size, bar diameter, and spacing.
4. Concrete Volume Calculation: Area multiplied by thickness, minus any voids.
5. Surface Finishing: Documentation of finishes affecting cost.

Beams Documentation

1. Type of Beam: Strip beams, isolated beams, or combined beams.
2. Dimensions: Length, width, and depth recorded.
3. Reinforcement Details: Bars size, spacing, and length.
4. Concrete Volume: Calculated by multiplying cross-sectional area by length.
5. Support Conditions: Details on bearing lengths and connections documented.

2.1.3 Understanding Substructure Details

Substructure details provide critical information on construction methods, material specifications, and connection points. These details guide measurement and ensure accuracy in estimation.

Components of Substructure Details

1. Reinforcement Layouts: Bar bending schedules and placement details.
2. Concrete Grades: Specification of concrete strength and mix ratios.
3. Waterproofing and Damp Proofing: Details affecting material requirements.
4. Excavation and Backfilling Methods: Influence earthwork quantities.
5. Jointing and Construction Joints: Locations and types affecting formwork and concrete pouring.

Reading and Interpreting Details

1. Cross-Sectional Drawings: Show vertical and horizontal dimensions.
2. Detail Drawings: Highlight connections and reinforcement overlaps.
3. Specification Notes: Clarify materials and workmanship standards.
4. Schedule References: Link drawings to quantity schedules.
5. Site Instructions: Amendments or clarifications affecting measurements.

2.1.4 Reading Soil and Foundation Reports

Soil and foundation reports provide essential geotechnical data influencing foundation design and construction methods. Accurate interpretation guides selection of foundation type and dimensions.

Key Soil Report Components

1. Soil Classification: Identifies soil types such as clay, sand, or rock.
2. Bearing Capacity: Maximum load soil can support without failure.
3. Soil Moisture Content: Affects foundation stability and shrink-swell potential.
4. Groundwater Level: Influences excavation and dewatering requirements.
5. Soil Density and Compaction: Affect settlement and load transfer.

Foundation Report Information

1. Recommended Foundation Type: Based on soil conditions and load requirements.
2. Depth of Foundation: Specified to reach suitable bearing strata.
3. Design Load Limits: Maximum allowable loads for safe foundation design.
4. Special Construction Notes: Such as use of piles or soil stabilization.
5. Risk Assessments: Potential hazards like soil erosion or liquefaction.

Chapter Summary

This chapter covered the essential principles for applying substructure works taking off. It began with the documentation of substructure elements, focusing on identifying various foundation types, accurately documenting footings, slabs, and beams, and interpreting substructure details along with soil and foundation reports. The chapter then explored techniques for quantifying substructure elements, including the application of standard measurement units and the calculation of material requirements for earthworks, concrete, and formwork. Adjustments to quantities based on specific site conditions were also emphasized to ensure accuracy. Finally, the chapter addressed booking substructure quantities through proper methods and recording standards, supported by a comprehensive checklist to verify all substructure elements are accounted for systematically. This integrated approach ensures precise measurement, documentation, and recording critical to successful substructure construction projects.
