Mechanical drawings are essential in building technology, particularly when integrating mechanical systems such as heating, ventilation, air conditioning (HVAC), and plumbing into construction projects. These drawings provide detailed specifications and dimensions of mechanical components, allowing building professionals to ensure proper installation, maintenance, and compliance with Kenyan building standards. Mastery of interpreting mechanical drawings is crucial for coordinating building services and avoiding costly errors during construction.

3.1 Common Mechanical Components Dimensions

Mechanical components in building construction require precise dimensional information to ensure compatibility and functionality within the building structure. Kenyan building professionals must understand the standard sizes and dimensional conventions used in mechanical drawings, especially for HVAC and plumbing installations, to coordinate effectively with mechanical engineers and contractors.

3.1.1 HVAC Components Dimensions

HVAC systems play a vital role in maintaining indoor air quality and thermal comfort in buildings. Correct interpretation of HVAC component dimensions ensures proper layout and integration within the building envelope.

Standard Duct Sizes and Dimensions

• Rectangular Ducts: Rectangular ducts are commonly specified by width and height in millimeters. Typical sizes range from 150 mm x 100 mm for small supply ducts to over 1200 mm x 600 mm for main trunk ducts. Accurate dimensioning ensures airflow efficiency and space allocation.

• Circular Ducts: Circular ducts are measured by diameter, with standard sizes from 100 mm to 800 mm. The diameter affects airflow velocity and pressure loss, thus influencing system design.

• Duct Thickness: Sheet metal thickness for ducts is usually specified in gauge or millimeters, commonly between 0.5 mm and 1.0 mm, depending on duct size and application.

• Insulation Thickness: Mechanical drawings often indicate insulation thickness around ducts, typically 25 mm to 50 mm, to prevent heat loss or gain.
• Fittings Dimensions: Elbows, reducers, and transitions have standardized dimensions corresponding to duct sizes to maintain airflow continuity.

Dimensions of HVAC Equipment

• Air Handling Units (AHUs): Drawings specify length, width, and height of AHUs, which can range from 1 meter to over 3 meters depending on capacity. Accurate dimensioning ensures proper space planning.

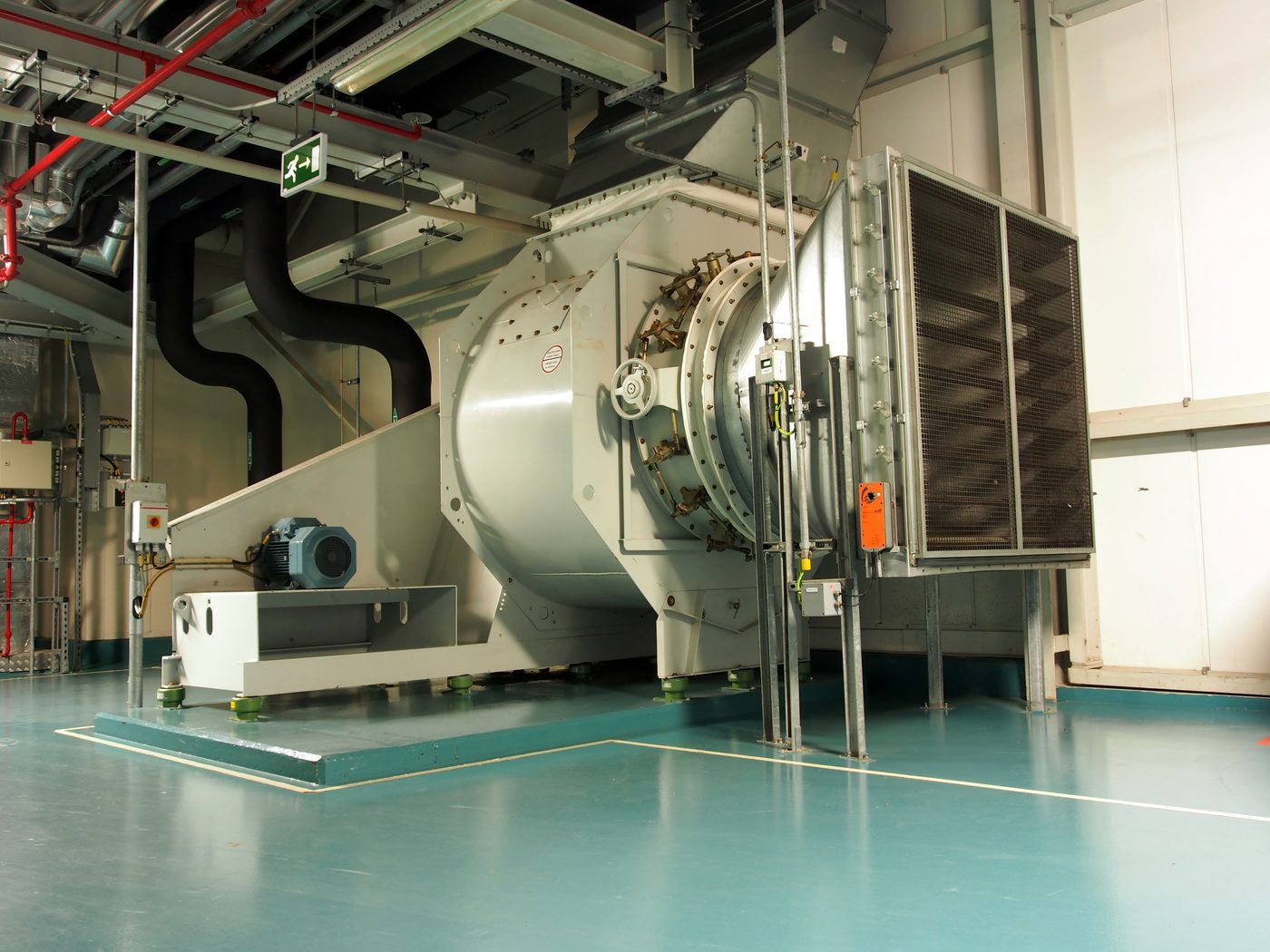

Industrial air handling unit in mechanical room (Source: Wikimedia Commons)

• Diffusers and Grilles: These are dimensioned by face size, usually in millimeters, such as 300 mm x 300 mm or 600 mm x 600 mm, to match duct connections and ceiling grid sizes.
• Piping for HVAC: Pipes for chilled water, heating, or refrigerant are dimensioned by outer diameter, wall thickness, and length to ensure correct routing and connections.
• Fan Dimensions: Fans are detailed with blade diameter and housing size, critical for mounting and noise control strategies.
• Control Panels: Dimensions for control panels are indicated to allocate space for installation and maintenance access.

Dimensional Tolerances and Standards

• Kenya Bureau of Standards (KEBS): Mechanical drawings must comply with KEBS specifications for HVAC components, ensuring safety and quality.
• BS EN 1505: This British Standard specifies dimensions and tolerances for ductwork, which are widely adopted in Kenyan projects.
• ISO 9001 Compliance: Ensures manufacturing precision and consistency of mechanical components.
• Dimensional Tolerances: Allowable deviations are usually ±2 mm for ductwork and ±5 mm for large equipment to accommodate installation practicalities.
• Clearance Dimensions: Drawings must indicate minimum clearance around components for maintenance, typically 600 mm for AHUs and 300 mm for diffusers.

Interpretation of HVAC Dimension Symbols and Notations

• Dimension Lines: Solid thin lines with arrowheads indicate measured distances between component edges.

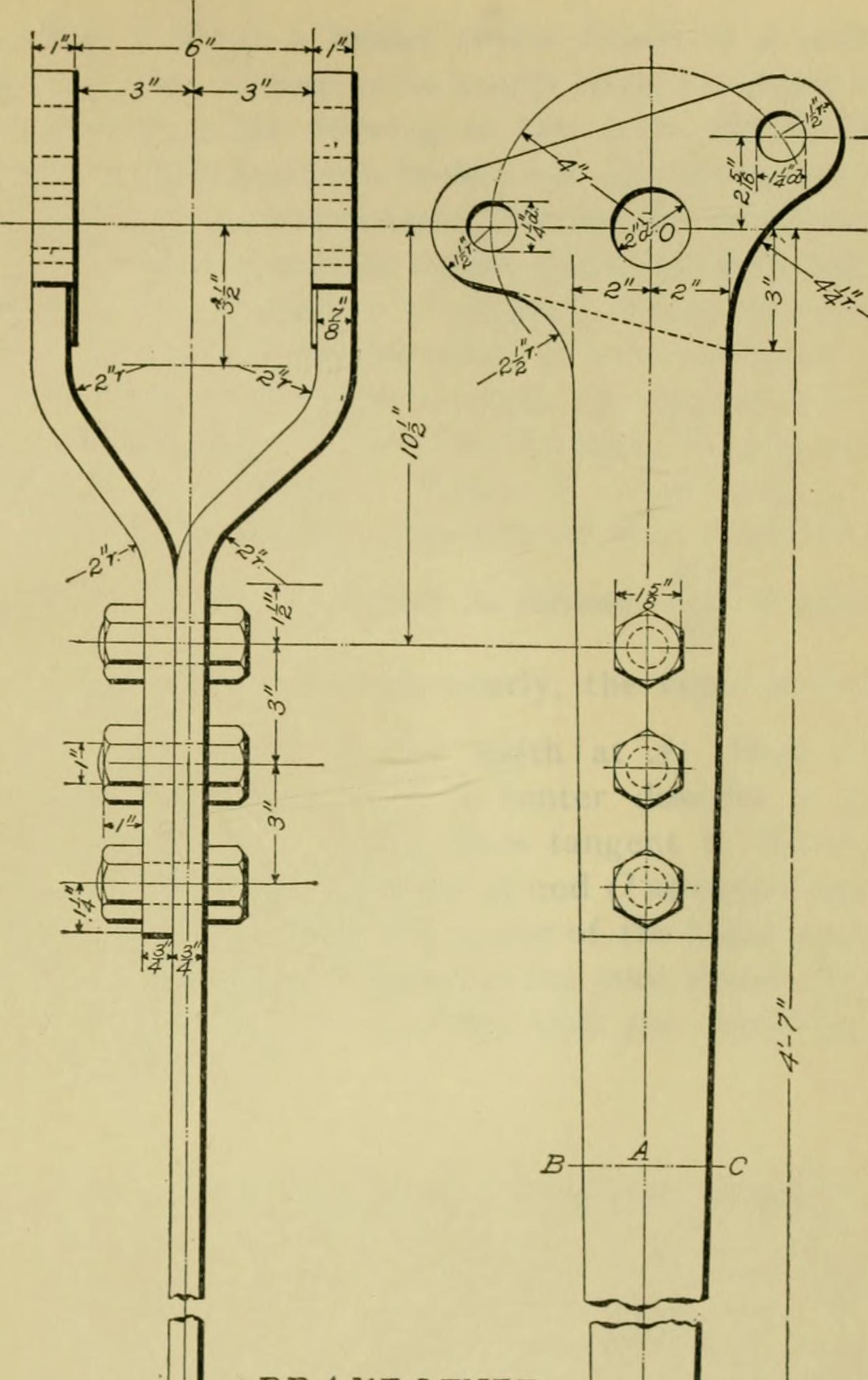

Engineering drawing with dimension lines shown (Source: Wikimedia Commons)

• Leader Lines: Connect dimensions to specific features such as holes or fittings.

• Diameter Symbol (Ø): Indicates pipe or duct diameter.

• Radius (R): Used for elbows and curved ductwork.
• Scale Notations: Common scales include 1:20 or 1:50 for HVAC layouts.
• Elevation Marks: Indicate vertical position relative to floor level, essential for pipe routing.

Chapter Summary

This chapter focused on interpreting mechanical drawings with an emphasis on common mechanical components and their dimensions. It began by examining the typical dimensions used in HVAC systems, highlighting the importance of accurate measurements for effective installation and maintenance. The discussion then moved to plumbing components, where basic sketches were introduced to aid in understanding the layout and connections of pipes and fixtures. Following this, the chapter explored plumbing designs in detail, emphasizing the arrangement and integration of plumbing systems within building plans. Throughout the chapter, the emphasis remained on reading and understanding technical drawings to ensure precision in construction and maintenance activities. Mastery of these topics equips students with the skills necessary to interpret mechanical drawings accurately in various building projects.
