In Building Technology, the ability to accurately interpret sketches and drawings of solid geometry patterns is essential for successful construction and fabrication. Professionals in Kenya’s construction sector regularly encounter complex geometric forms that must be translated from conceptual sketches into precise technical drawings. Mastery of these skills ensures that components fit correctly, structures are stable, and materials are used efficiently, contributing to cost-effective and safe building projects.

3.1 Interpretation of sketches and drawings of patterns

Interpretation of sketches and drawings is a fundamental skill for building technologists involved in drafting, fabrication, and site execution. In Kenya, construction projects often rely on clear communication of design intent through drawings that depict solid geometry patterns such as prisms, pyramids, cylinders, and cones. These drawings serve as blueprints for cutting, joining, and assembling materials. Understanding how to read and interpret these patterns enables technicians to identify dimensions, angles, and surface details that are crucial for accurate construction.

3.1.1 Understanding the Elements of Solid Geometry Sketches

Solid geometry sketches represent three-dimensional objects on two-dimensional media, combining lines, curves, and surfaces to communicate form. Recognizing the key elements within these sketches is critical for building technologists who must visualize the object’s shape before producing detailed drawings.

• Edges show the boundaries where two surfaces meet and are typically represented as solid lines. They define the shape and limits of the object.

• Vertices are points where edges converge, often indicating corners or intersections of surfaces.

• Faces are the flat or curved surfaces that make up the exterior of the solid. These may be visible or hidden depending on the viewing angle.

• Projection lines are used to transfer dimensions and details from one view to another, aiding in the creation of accurate orthographic drawings.
• Hidden lines represent edges or boundaries not visible in the current view, depicted as dashed lines to differentiate them from visible edges.

3.1.2 Techniques for Visualizing 3D Objects from 2D Sketches

Building technologists must develop spatial visualization skills to mentally reconstruct three-dimensional solids from flat sketches. This ability reduces errors during drafting and construction.

• Orthographic views (plan, elevation, and side) provide multiple perspectives of the solid, allowing the viewer to understand depth and shape.

• Isometric sketches present a pseudo-3D view where the three principal axes are equally foreshortened, giving a clearer sense of volume.

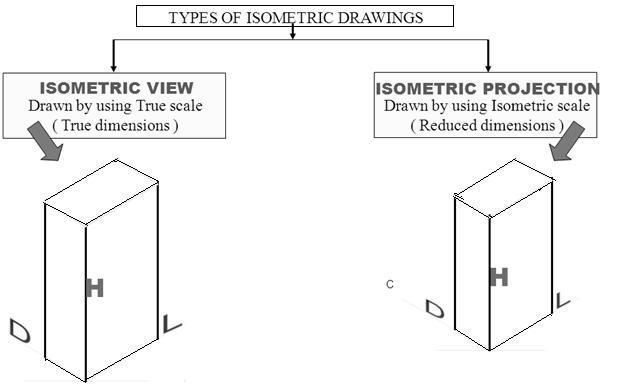

The two types of isometric drawings—Isometric View (Source: 697c72e40165f702)

• Sectional views cut through the solid to reveal internal features, essential for understanding complex geometries or hidden details.
• Cross-referencing views involves comparing corresponding features across different projections to ensure consistency.
• Mental rotation exercises help technologists imagine how the solid looks when viewed from various angles, improving interpretation accuracy.

3.1.3 Reading Pattern Drawings for Fabrication and Construction

Pattern drawings translate solid geometry into flat layouts that guide cutting, shaping, and assembly of building components such as metal sheets, timber panels, or concrete elements.

• Development of surfaces involves unfolding the 3D solid into a flat pattern without distortion, preserving dimensions for accurate fabrication.

• True length lines in patterns represent actual dimensions needed for cutting and must be identified precisely.

• Fold lines indicate where the material will be bent or folded to form the solid shape.
• Notches and tabs are marked to assist in aligning and joining parts during assembly.
• Dimensional annotations include lengths, angles, and radii crucial for precise fabrication work.

3.1.4 Common Challenges and Strategies in Sketch Interpretation

Interpreting sketches and drawings of solid geometry patterns can be challenging due to complexity and variability in drawing quality. Building technologists must apply strategies to overcome these difficulties.

Common Challenges

• Ambiguous or incomplete sketches lacking dimension details or clear views.
• Misinterpretation of hidden lines leading to errors in understanding the shape.
• Difficulty visualizing complex intersections such as where multiple solids meet.
• Scale inconsistencies between different views causing confusion.
• Errors in transferring measurements from sketches to actual materials.

Strategies to Overcome Challenges

• Requesting clarification from designers or architects when sketches are unclear.
• Using auxiliary views to resolve ambiguities in shape and size.
• Employing scale rulers and templates to verify dimensions accurately.
• Practicing sketch reading regularly to improve spatial visualization skills.
• Cross-checking measurements between all views before commencing fabrication.

Chapter Summary

This chapter focused on the interpretation of sketches and drawings of patterns, essential for accurately understanding and visualizing solid geometry in technical drawing. Students learned to analyze and extract key information from various patterns, which forms the basis for creating precise solid drawings. The chapter then explored the development of both truncated and untruncated regular solids, providing step-by-step procedures to construct their accurate representations. Emphasis was placed on applying standard drawing conventions to ensure clarity and conformity with recognized technical standards. Through detailed worked examples, learners practiced developing solids with correct dimensions and proportions. The integration of theory and practical drawing techniques enables students to confidently produce comprehensive solid geometry drawings. This foundation is crucial for advanced technical drawing tasks in engineering and design fields.
