Fire control systems are critical components in building safety, designed to protect lives and property by controlling or extinguishing fires. For plumbing professionals in Kenya, understanding the installation of wet and dry risers is essential, as these systems integrate closely with water supply infrastructure. Wet and dry risers provide reliable access to water for firefighting on multiple floors, especially in high-rise buildings, hospitals, hotels, and commercial complexes. Mastery of these systems ensures compliance with safety regulations and enhances emergency preparedness in various institutional and commercial settings.

5.1 Terms and concepts

Understanding the key terms and concepts related to wet and dry risers equips plumbing professionals with the technical language and foundational knowledge necessary for effective installation and maintenance. These terms clarify the components, functions, and operational principles of fire control systems, enabling precise communication with fire safety engineers, contractors, and regulatory bodies such as the National Construction Authority (NCA) and the Kenya Fire Brigade.

5.1.1 Wet Riser: Definition and Function

A wet riser is a vertical water pipe permanently charged with water, installed in multi-storey buildings to provide immediate water supply for firefighting. This system is connected to the building's main water supply and includes outlets on each floor where fire hoses can be attached.

Definition

• A wet riser is a fixed pipe system filled with water at all times, ensuring readiness for immediate firefighting.
• It is typically installed in buildings above 18 meters or six floors, as per Kenyan building codes.
• The system includes inlet points at ground level for fire brigade water supply connection and outlets at each floor.
• Wet risers maintain a pressurized water supply, eliminating delays in firefighting response.
• The piping material is usually galvanized steel or ductile iron, resistant to corrosion and high pressure.

Function

• Provides a direct water source for firefighting on upper floors.
• Reduces reliance on external water sources, which may be inaccessible during emergencies.
• Enables firefighters to quickly connect hoses and begin suppression.
• Supports continuous water flow, critical for controlling fires in tall buildings.
• Enhances occupant safety by reducing fire spread and enabling evacuation.

5.1.2 Dry Riser: Definition and Operational Principles

A dry riser is a vertical pipe system installed in buildings, which remains empty of water until connected to an external water source during a fire emergency. It allows firefighters to pump water into the system from the ground level.

Definition

• Dry risers are empty pipes capped to prevent debris ingress.
• Installed in buildings where water supply pressure is insufficient or where wet risers are impractical.
• Equipped with inlet valves at ground level and outlets on each floor.
• Designed to be connected to fire engines or hydrants to deliver water upwards.
• Constructed from steel or other durable materials to withstand high water pressure when charged.

Operational Principles

• Water is introduced into the system by a fire engine or external pump.
• Firefighters connect hoses to outlets at the fire floor, using supplied water.
• The system requires regular maintenance to ensure airtight seals and valve functionality.
• Dry risers are vital in locations without permanent pressurized water supply.
• They provide flexibility for firefighting in older buildings or those with limited water infrastructure.

5.1.3 Components of Wet and Dry Risers

Both wet and dry risers consist of several critical components that ensure their functionality and compliance with safety standards. Understanding these components is vital for correct installation and troubleshooting.

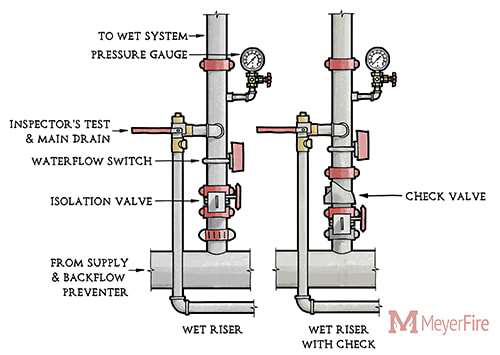

Two types of wet riser systems used in fire protection (Source: PLUMB 5 LEARNING GUIDE-1 (1))

Components

• Inlet Valve: Allows connection of water supply at ground level; must be accessible and clearly marked.

• Outlet Valve/Branch Pipe: Located on each floor for hose connection; fitted with control valves to regulate water flow.

• Riser Pipe: The vertical pipe that transports water between floors; sized according to building height and water demand.

• Landing Valves: Positioned at outlet points; designed for quick hose attachment and shut-off.
• Pressure Relief Valves (wet risers only): Prevent excessive pressure buildup, protecting the system and pipework from damage.

5.1.4 Regulatory Standards and Codes Relevant to Installation

Compliance with Kenyan and international fire safety standards ensures that wet and dry risers are installed to provide maximum safety and operational reliability. Plumbing professionals must be familiar with these regulations.

Relevant Standards

• Kenya Building Code: Specifies requirements for fire control systems, including riser installation height, material specifications, and maintenance.
• Kenya Bureau of Standards (KEBS): Provides guidelines on materials and workmanship for plumbing and fire safety systems.
• National Construction Authority (NCA) Regulations: Enforces standards for building safety, including fire risers.
• Fire Safety and Prevention Act: Mandates proper fire safety measures in public and commercial buildings.
• International Standards (e.g., BS 9990): Often referenced in Kenya for design and installation best practices.

Chapter Summary

This chapter introduced key terms and concepts essential for understanding fire control systems, particularly focusing on wet and dry risers. It emphasized the importance of adhering to safety and health practices during installation and maintenance to protect workers and ensure system reliability. Various types of riser systems were examined, highlighting their distinct features and applications. The installation procedures for dry pipe and wet pipe systems were discussed in detail, outlining the technical steps required for effective fire suppression. Functionality tests were explained as critical measures to verify the operability of the installed systems. Common faults in fire risers were identified, along with practical methods for diagnosing and correcting these issues to maintain performance. The chapter also covered the commissioning process, ensuring that systems meet regulatory standards before being put into service. Finally, the significance of proper housekeeping was underscored to preserve system integrity and readiness for emergencies.
