Assembling repaired electrical and electronic equipment and appliances is a critical final step in maintenance that ensures devices are safe, functional, and reliable for end users. In Kenya’s diverse professional environments, from county referral hospitals to retail businesses and cooperative farms, properly reassembling equipment maintains operational continuity and protects users from electrical hazards. This chapter focuses on two essential aspects of assembly: tightening screws and selecting and connecting appropriate connectors.

5.1 Tightening of Screws

Proper tightening of screws during equipment assembly is essential for structural integrity, electrical safety, and device performance. In Kenyan workplaces such as universities and county government offices, loose screws can lead to malfunction, increased wear, and safety risks including electric shocks or short circuits. Tightening screws correctly ensures components remain securely fastened despite vibrations or handling, preserving the equipment’s longevity and user safety.

5.1.1 Importance of Correct Screw Tightening

Correct screw tightening affects both mechanical and electrical aspects of equipment. Mechanically, it prevents parts from loosening and causing misalignment or damage. Electrically, screws often secure grounding points and connectors, so inadequate tightening can result in poor electrical contact, leading to overheating or intermittent faults. For example, in a county hospital’s diagnostic machine, poorly tightened screws on connectors can cause erratic readings or complete failure during patient testing.

5.1.2 Types of Screws Commonly Used in Electrical Equipment Assembly

Electrical and electronic appliances commonly use several types of screws, each suited to particular materials and functions:

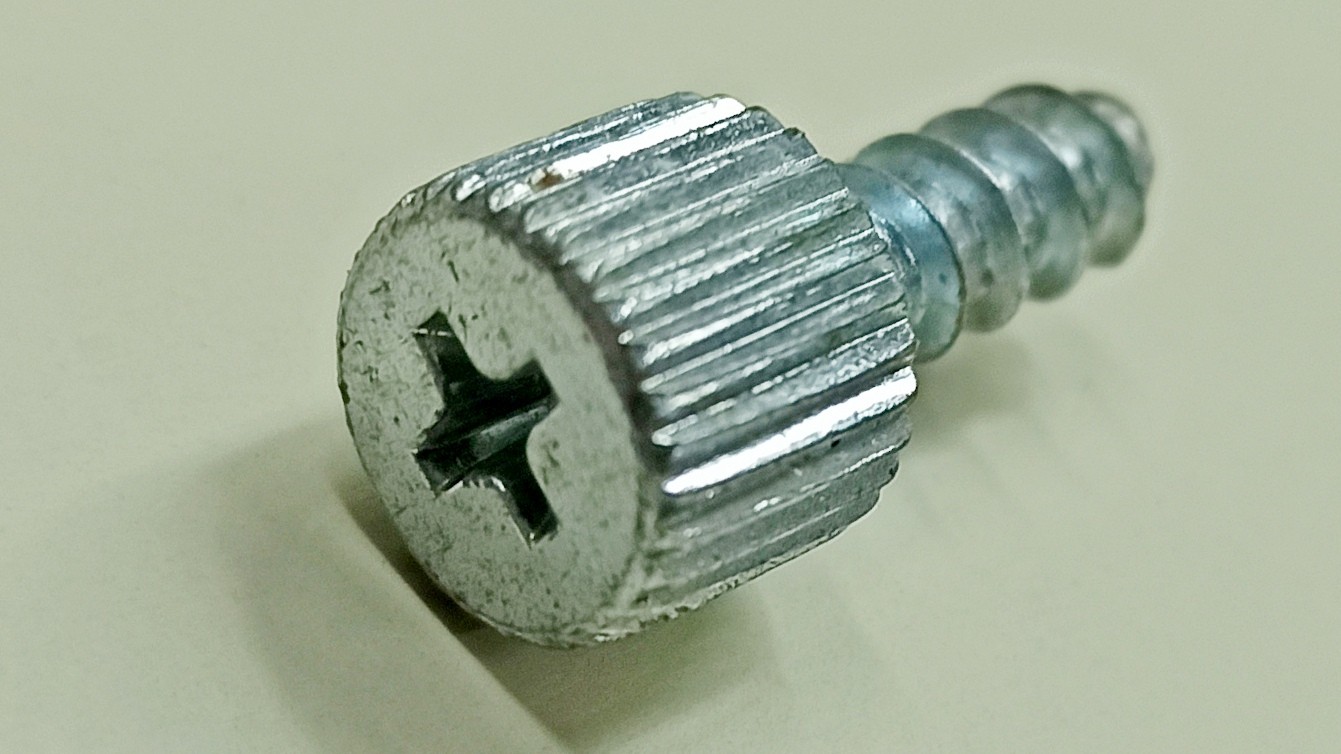

• Phillips head screws: Widely used due to easy alignment with screwdriver heads, offering good grip and torque control.

• Slotted screws: Traditional type, often found in older equipment or simple appliances, requiring careful alignment to avoid damage.

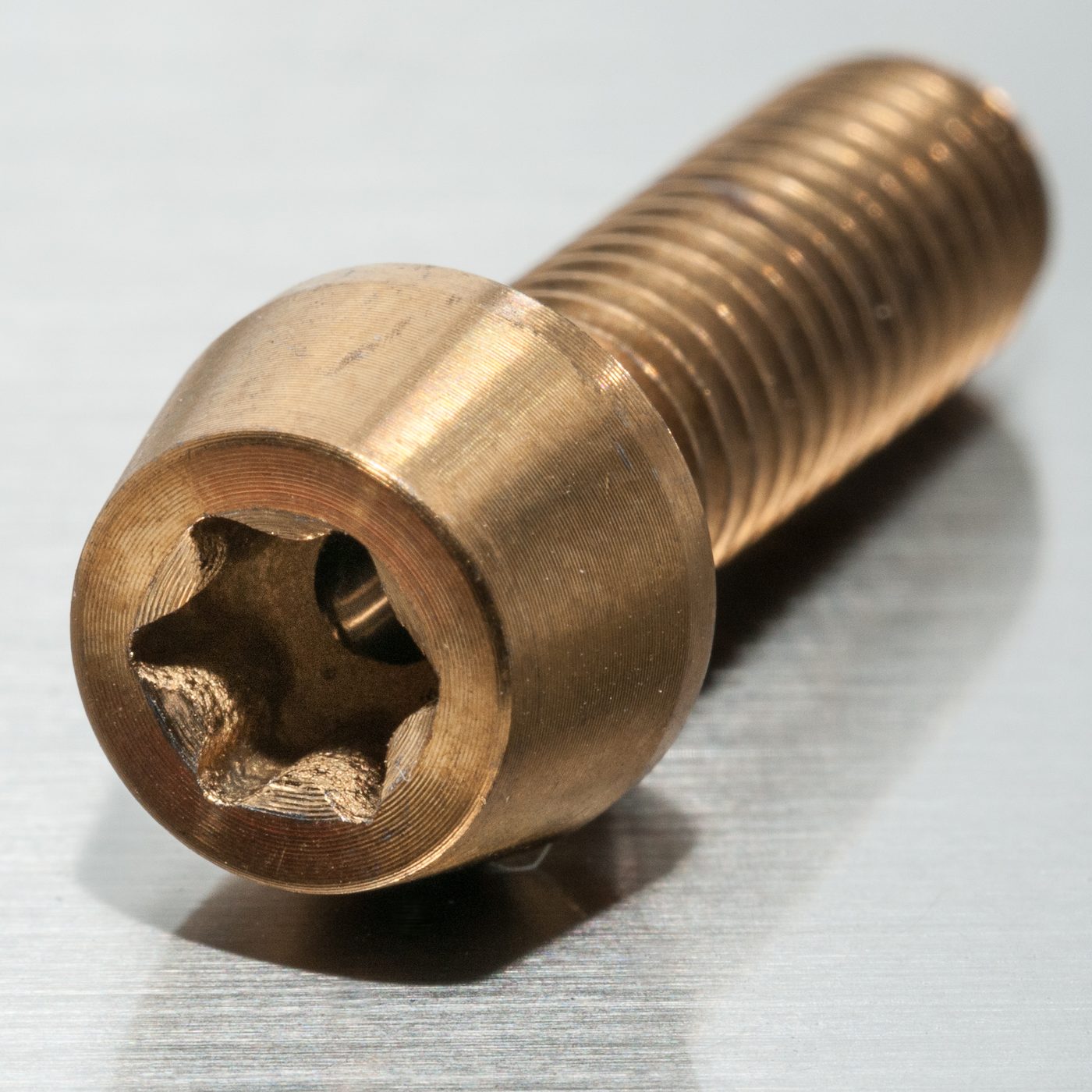

• Torx screws: Designed for higher torque applications, common in robust devices like industrial control panels.

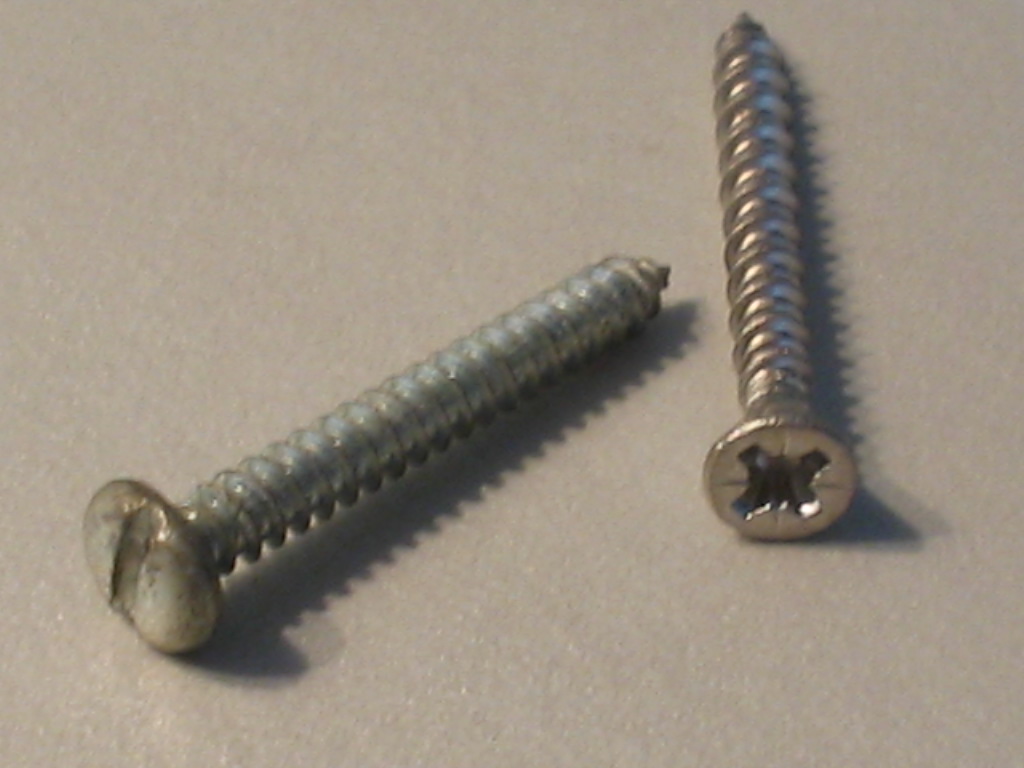

• Self-tapping screws: Used for fastening into plastic or thin metal without pre-drilled holes, common in appliance casings.

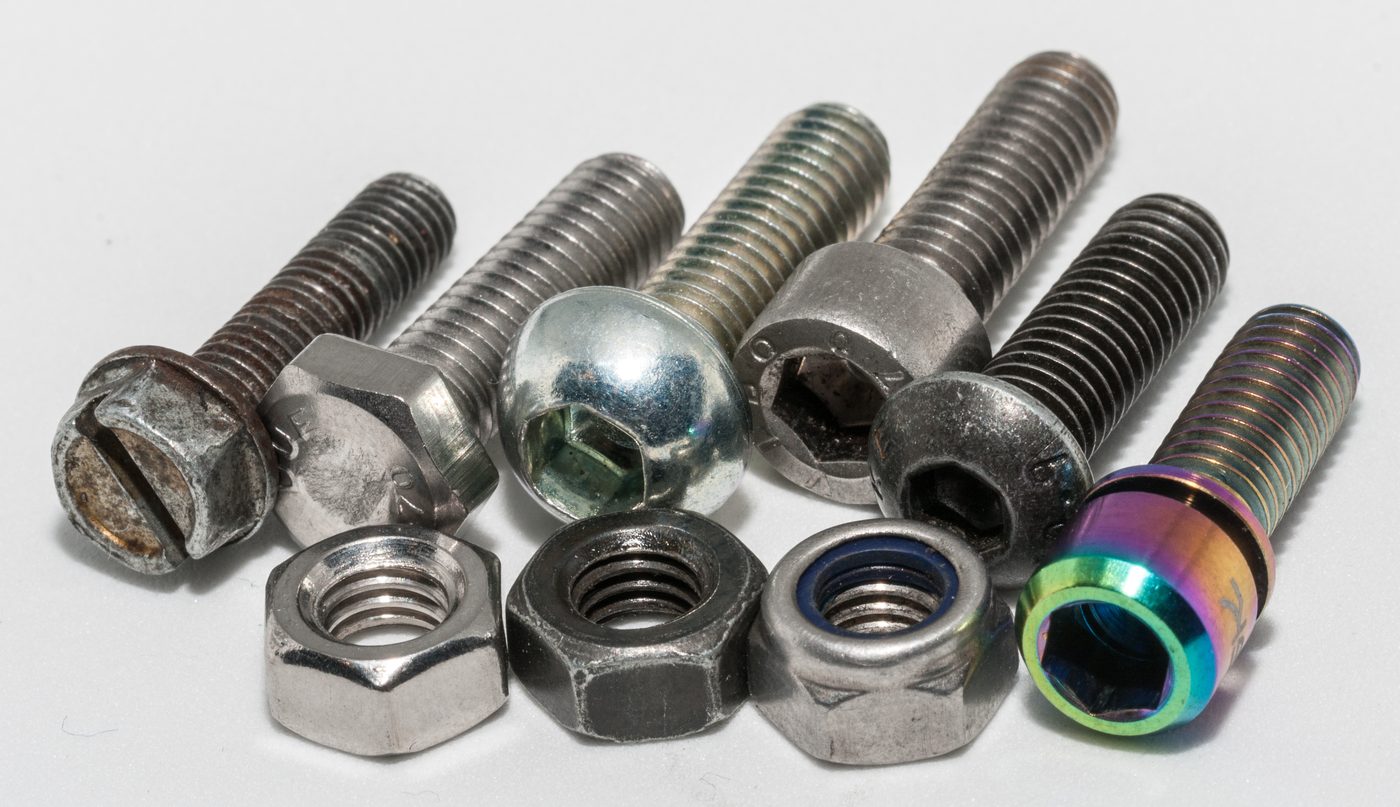

• Machine screws: Used with nuts or threaded holes to secure components precisely, often in metal chassis or control boards.

Each screw type must be handled with the correct screwdriver to avoid stripping and ensure proper tightening torque.

5.1.3 Techniques for Effective Screw Tightening

Effective screw tightening involves more than applying force; it requires precision and care to avoid damage:

• Use appropriate tools: Select screwdrivers or power drivers matching the screw head to prevent cam-out and stripping.
• Apply correct torque: Screws must be tightened firmly but not excessively; over-tightening can strip threads or crack plastic parts.
• Tighten in sequence: For panels or assemblies with multiple screws, tighten in a crisscross or diagonal sequence to distribute pressure evenly.
• Check for thread damage: Inspect screw holes and threads for wear or damage before reassembling to ensure secure fastening.
• Use thread lockers when necessary: In high-vibration environments like farms or busy retail outlets, applying thread-locking compounds prevents loosening over time.

5.1.4 Safety and Quality Considerations During Screw Tightening

Safety and quality assurance are integral when tightening screws in electrical equipment:

• Ensure power is disconnected: Before assembly, confirm equipment is isolated from power sources to avoid electric shock.
• Avoid metal-to-metal contact on live parts: Screws touching live conductors can cause shorts; use insulating washers or barriers where needed.
• Inspect screw condition: Replace rusted or damaged screws to maintain secure assembly and prevent corrosion-related failures.
• Document torque specifications: Follow manufacturer’s recommended torque values, especially in sensitive medical or financial equipment to maintain warranty and safety standards.
• Verify assembly stability: After tightening, test for wobble or loose components to ensure long-term reliability.

Chapter Summary

This chapter focused on the critical steps involved in assembling repaired electrical and electronic equipment and appliances. It began with the tightening of screws, emphasizing the importance of securing components firmly to ensure safety and functionality. The discussion then moved to connectors, detailing various types and their roles in establishing reliable electrical connections. The chapter also covered the use of cable ties, silicon glue, super glue, and insulating tapes as essential materials for organizing cables, providing insulation, and securing parts effectively. Finally, it addressed the mounting of cooling components, highlighting proper installation techniques to maintain optimal operating temperatures and prevent equipment failure. Together, these topics provide a comprehensive guide to reassembling electrical and electronic devices with precision and care.
