Semiconductor theory forms the foundation of analogue electronics, enabling the design and operation of devices critical to Kenya's growing electronics industry. Understanding the atomic structure and behavior of charge carriers within semiconductors is essential for engineers working on components such as diodes, transistors, and integrated circuits. This chapter delves into the atomic-level principles that govern semiconductor behavior, providing a basis for practical applications in electronic devices used in sectors ranging from healthcare instrumentation to industrial control systems.

1.1 Atomic Structure

The atomic structure underpins the electronic properties of materials, including semiconductors. Kenyan electronics engineers must appreciate how atoms are arranged and how their electrons behave to manipulate materials for specific electronic functions. This section explores the fundamental composition and arrangement of atoms, electron configurations that determine chemical and electrical properties, and the role of ions and charge carriers in semiconductor operation.

1.1.1 Structure of the Atom

Atoms are the smallest units of matter, consisting of a nucleus containing protons and neutrons, surrounded by electrons in defined regions called orbitals. The nucleus carries a positive charge due to protons, while electrons have a negative charge and orbit the nucleus in energy levels or shells. The balance between these charges determines the atom’s stability.

Components of the Atom

• Protons: Positively charged particles located in the nucleus, defining the atomic number and the element's identity. For example, silicon has 14 protons.
• Neutrons: Neutral particles also in the nucleus, contributing to atomic mass and isotopic variations without affecting charge.
• Electrons: Negatively charged particles orbiting the nucleus in shells; their arrangement determines chemical bonding and conductivity.
• Nucleus: The dense central part containing protons and neutrons, responsible for most of the atom's mass.
• Electron Shells: Discrete energy levels where electrons reside; the outermost shell is crucial for chemical reactivity and electrical behavior.

Energy Levels and Electron Behavior

Electrons occupy shells or energy levels around the nucleus, filling lower levels before higher ones. The outermost shell, known as the valence shell, plays a critical role in determining how an atom interacts with others and conducts electricity. In semiconductors such as silicon and germanium, the valence electrons form covalent bonds with neighboring atoms, creating a crystal lattice essential for device function.

1.1.2 Electron Configuration

Electron configuration describes the distribution of electrons in an atom's shells and subshells, influencing its chemical and electrical properties. For semiconductors, understanding electron configuration helps explain how materials conduct or resist electrical current.

Principles Governing Electron Configuration

• Pauli Exclusion Principle: No two electrons can occupy the same quantum state simultaneously, determining electron arrangement.
• Aufbau Principle: Electrons fill the lowest energy orbitals first, building up to higher energy levels.
• Hund’s Rule: Electrons occupy orbitals singly before pairing up, minimizing repulsion and stabilizing the atom.
• Valence Electrons: Electrons in the outermost shell dictate bonding and conductivity; silicon has four valence electrons, making it ideal for semiconductor applications.
• Electron Shell Capacity: Each shell can hold a limited number of electrons, e.g., the first shell holds up to 2, the second up to 8.

Electron Configuration of Common Semiconductor Elements

• Silicon (Si): 1s² 2s² 2p⁶ 3s² 3p², with four valence electrons enabling covalent bonding.

• Germanium (Ge): 1s² 2s² 2p⁶ 3s² 3p⁶ 3d¹⁰ 4s² 4p², similar to silicon but with higher atomic mass.

• Gallium Arsenide (GaAs): Combination of gallium (3 valence electrons) and arsenic (5 valence electrons), forming a compound semiconductor with specific electron configurations influencing its properties.

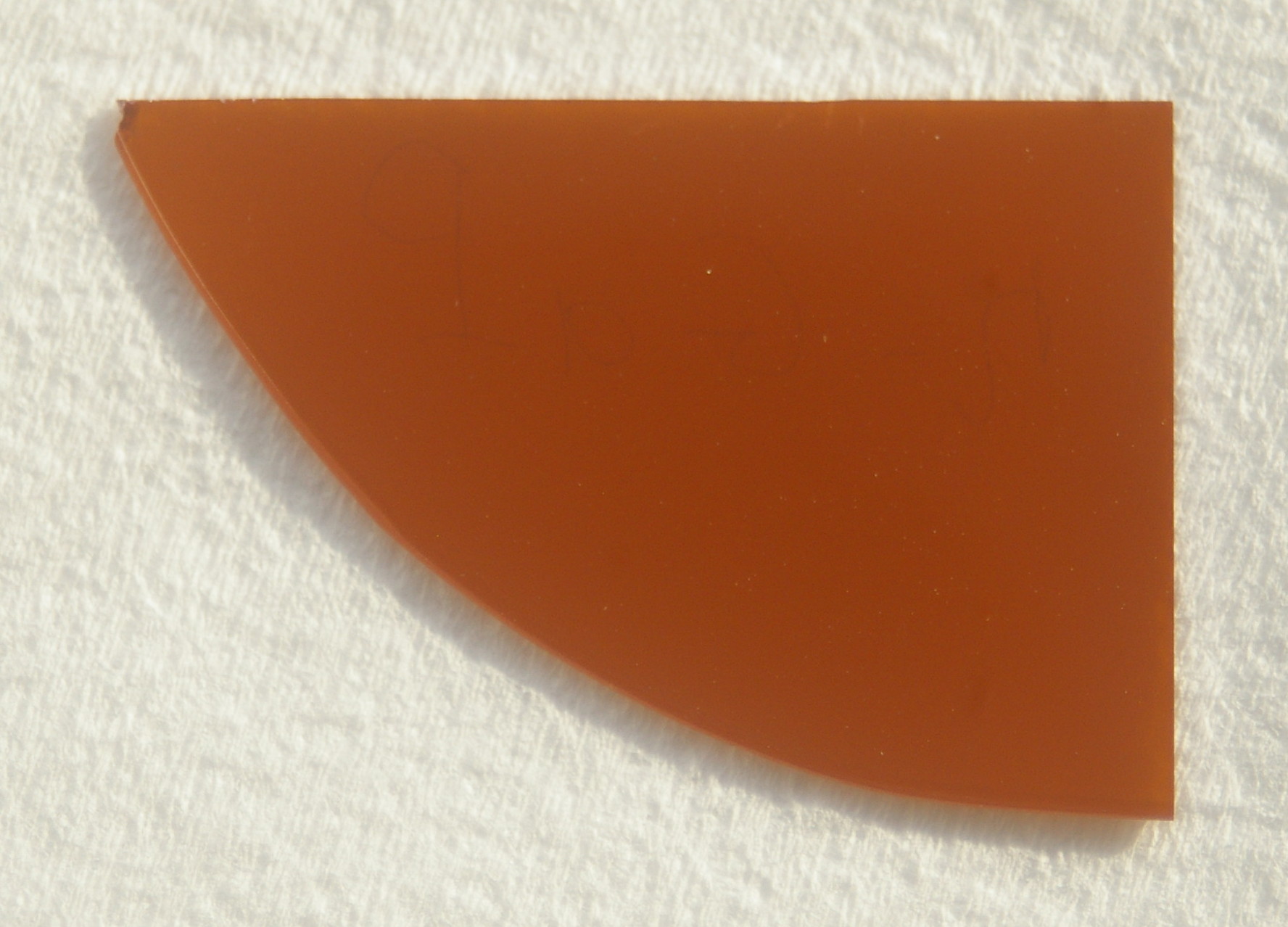

Gallium arsenide semiconductor wafer (Source: Wikimedia Commons)

1.1.3 Ions and Charge Carriers

In semiconductors, electrical conduction depends on the movement of charge carriers, primarily electrons and holes. These carriers arise from ionization processes where atoms gain or lose electrons, forming ions that influence conductivity.

Formation and Role of Ions in Semiconductors

• Ions: Atoms that have gained or lost electrons, acquiring a net charge; positive ions result from losing electrons, negative ions from gaining.
• Doping: Introducing impurities into a semiconductor crystal to create excess electrons (n-type) or holes (p-type), enhancing conductivity.
• Electrons as Charge Carriers: Negatively charged particles that move through the conduction band when energy is supplied.
• Holes as Charge Carriers: Positive charge carriers representing the absence of an electron in the valence band, moving as neighboring electrons fill the vacancy.
• Intrinsic and Extrinsic Semiconductors: Intrinsic semiconductors have equal numbers of electrons and holes, while extrinsic ones have an imbalance due to doping.

Charge Carrier Dynamics

Charge carriers move under the influence of electric fields, enabling current flow in semiconductor devices. For example, in a diode used in a hospital's medical equipment, electrons and holes recombine at the p-n junction, allowing current to flow in one direction while blocking it in the other.

Chapter Summary

This chapter explored the fundamental concepts of semiconductor theory starting with the atomic structure, detailing the composition of atoms, electron configuration, and the role of ions as charge carriers. It then examined the three main types of materials: insulators, conductors, and semiconductors, highlighting their distinct electrical properties and the common semiconductor materials used in electronics. The discussion progressed to types of semiconductor materials, distinguishing between intrinsic semiconductors, which are pure materials, and extrinsic semiconductors that are doped to enhance conductivity. Within extrinsic semiconductors, the chapter explained the characteristics of N-type and P-type materials based on the type of dopants introduced. The formation and properties of the PN junction were analyzed, emphasizing how it behaves under different biasing conditions. Finally, the chapter described the current flow in forward and reverse biased PN junctions and presented the voltage-current characteristics that define the junction’s operation in electronic circuits.
