Chapter 1: Apply amplifiers
📚 5 Topics
What you will be able to do

By the end of this chapter, you will be able to:

  • Identify different types of materials using semiconductor theory.
  • Recognize semiconductor materials based on their electrical conductivity properties.

These skills will help you understand how amplifiers work and enable you to select the right materials for building effective electronic circuits in your trade.

Amplifiers are fundamental components in analogue electronics, essential for increasing the strength of electrical signals to levels suitable for processing or transmission. In professional settings across Kenya, such as county hospitals, universities, banks, and retail businesses, amplifiers enable various devices to function effectively, from medical diagnostic equipment to communication systems. Understanding how amplifiers are classified helps technicians and engineers choose the right type for specific applications, ensuring optimal performance and reliability. This chapter explores the classification of amplifiers based on their stages, coupling methods, and frequency response, providing a comprehensive foundation for their practical application.

1.1 Classification of Amplifiers Based On

1.1.1 Stages

Amplifiers can be classified according to the number of amplification stages they contain. Each stage represents a section of the amplifier circuit that provides some gain to the input signal. The number of stages affects the overall gain, complexity, and frequency response of the amplifier, which is critical in diverse professional environments such as county government offices where audio-visual systems require clear signal amplification.

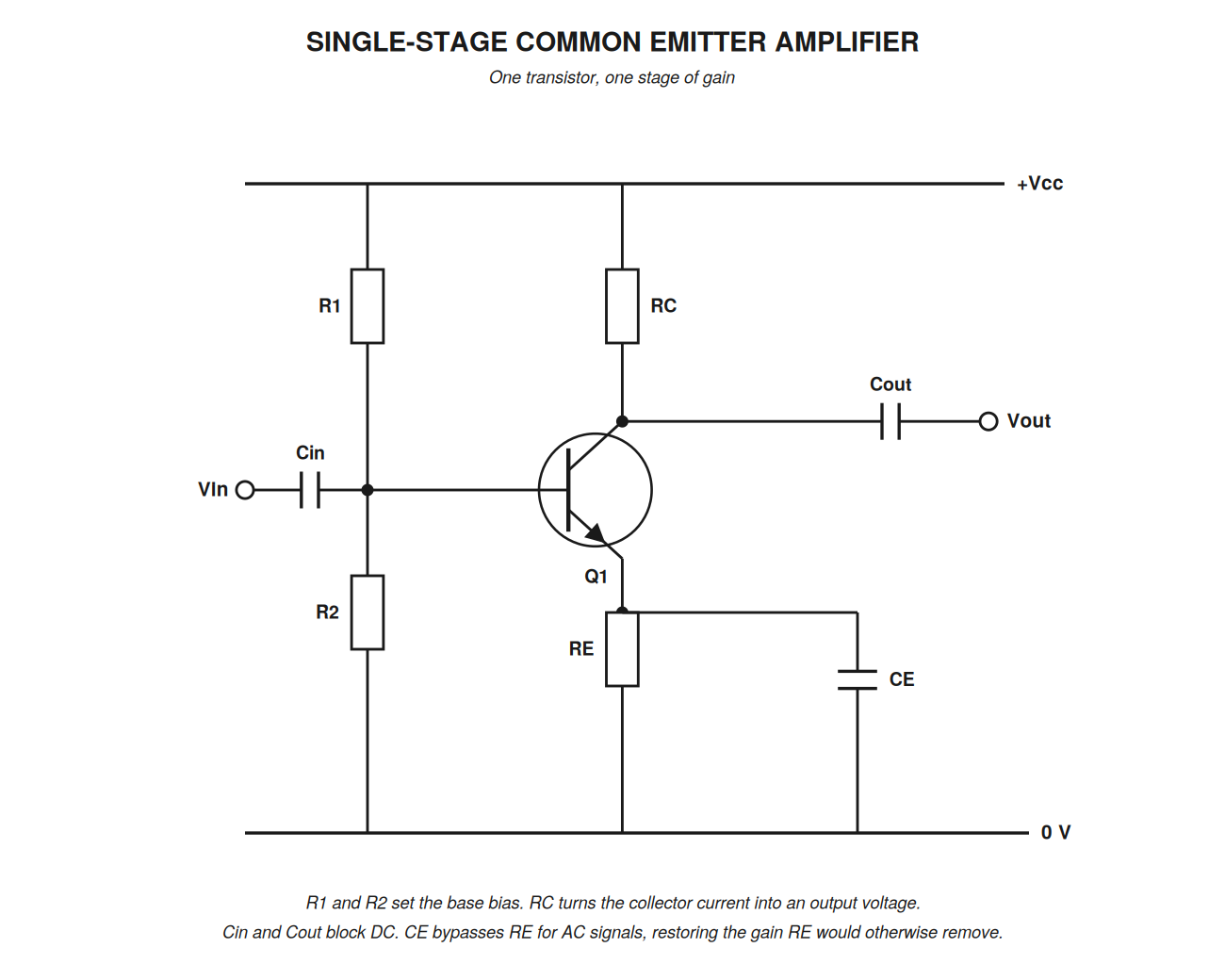

Single-Stage Amplifiers

Single-stage amplifiers consist of one amplification stage and are the simplest form of amplifier. They provide moderate gain and are typically used in low-power applications where signal distortion must be minimal, such as in small portable medical devices at clinics or in basic sound systems in retail shops.

  • Simplicity: The single stage reduces circuit complexity, making design and troubleshooting easier.
  • Limited Gain: Gain is restricted by the capabilities of the single transistor or vacuum tube used.
  • Low Power Consumption: Suitable for battery-operated devices used in field agricultural monitoring.
  • Narrow Bandwidth: Typically operate effectively over a limited frequency range.
  • Low Cost: Due to fewer components, these amplifiers are cost-effective for small-scale applications.

Two-Stage Amplifiers

Two-stage amplifiers combine two amplification stages to increase overall gain while maintaining reasonable complexity. They are common in public address systems in schools and hotels where moderate signal amplification is necessary.

  • Increased Gain: The gain from each stage multiplies, resulting in significantly higher overall amplification.
  • Improved Frequency Response: Allows broader bandwidth compared to single-stage amplifiers.
  • Enhanced Input and Output Matching: Facilitates better interfacing with other circuit components.
  • Moderate Complexity: Requires careful design to avoid instability and oscillations.
  • Common Use: Suitable for medium-power applications such as microphone preamplifiers in conference rooms.

Multi-Stage Amplifiers

Multi-stage amplifiers contain three or more amplification stages and are used when very high gain is required, such as in signal processing equipment at universities or in sophisticated surveillance systems in county offices.

  • Very High Gain: Achieved by cascading several stages, each amplifying the signal further.
  • Wide Bandwidth: Proper design can extend frequency response across a broad spectrum.
  • Complex Design: Requires attention to stability, noise, and distortion control.
  • Power Amplification: Often used as power amplifiers driving loudspeakers or transmitters.
  • Versatile Applications: Found in high-fidelity audio systems and instrumentation amplifiers.

Integrated Amplifiers

Integrated amplifiers incorporate multiple stages and other components into a single semiconductor chip. They are widely used in consumer electronics and institutional facilities such as university lecture halls for sound reinforcement.

  • Compactness: Saves space and simplifies circuit assembly.
  • Consistency: Manufacturing processes ensure uniform performance.
  • Cost Efficiency: Mass production reduces unit cost.
  • Thermal Management: Integrated design facilitates heat dissipation.
  • Limited Customization: Fixed configuration limits design modifications.

1.1.2 Coupling Method

The coupling method in amplifiers refers to how the signal is transferred from one stage to the next or from the input to the output. This classification affects the amplifier's frequency response, size, and suitability for different professional applications such as environmental monitoring equipment at NEMA or banking communication systems.

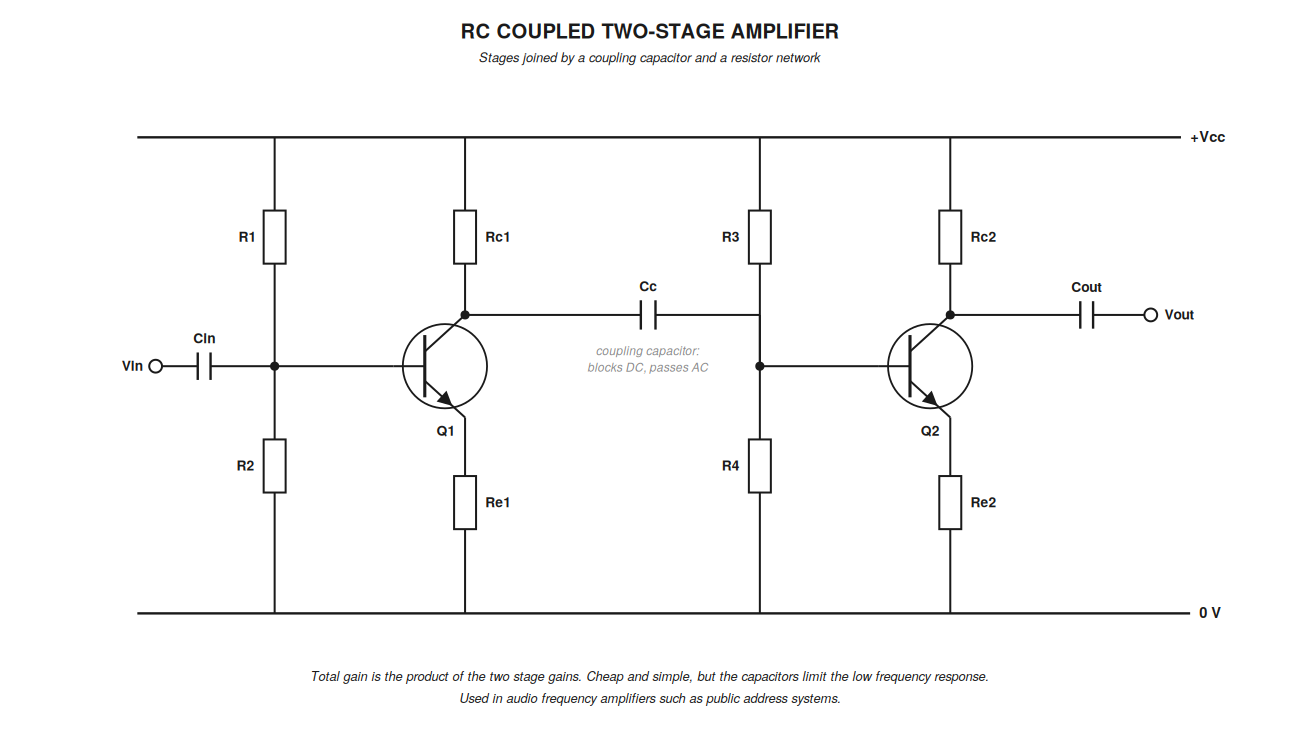

RC Coupled Amplifiers

RC coupling uses resistors and capacitors to connect amplifier stages. This method is prevalent in audio frequency amplifiers used in hotel public announcement systems and small-scale audio devices.

  • Frequency Response: Provides good amplification over audio frequencies but poor at very low or high frequencies.
  • Simple Construction: Easy to design and implement.
  • Cost-Effective: Uses inexpensive components.
  • Signal Distortion: Capacitors may introduce phase shifts affecting signal fidelity.
  • Isolation: Provides DC isolation between stages, protecting transistors.

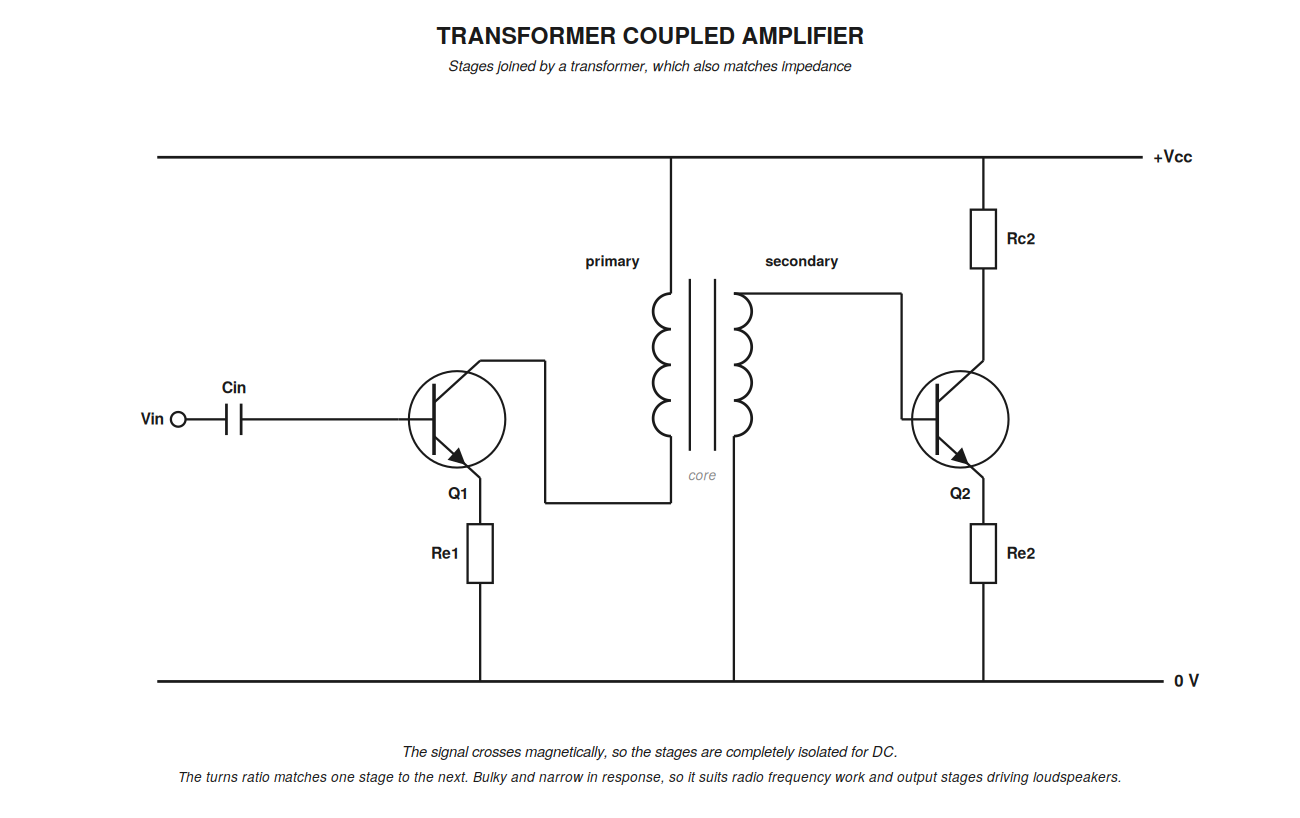

Transformer Coupled Amplifiers

Transformer coupling employs transformers to link stages, commonly used in radio frequency (RF) applications like communication systems at county government offices.

  • Impedance Matching: Transformers facilitate impedance matching between stages for maximum power transfer.
  • Frequency Range: Effective at radio frequencies but bulky for low-frequency use.
  • Voltage Gain: Transformers provide voltage step-up or step-down.
  • Size and Cost: Transformers are larger and more expensive than RC components.
  • Isolation: Excellent DC isolation between stages.

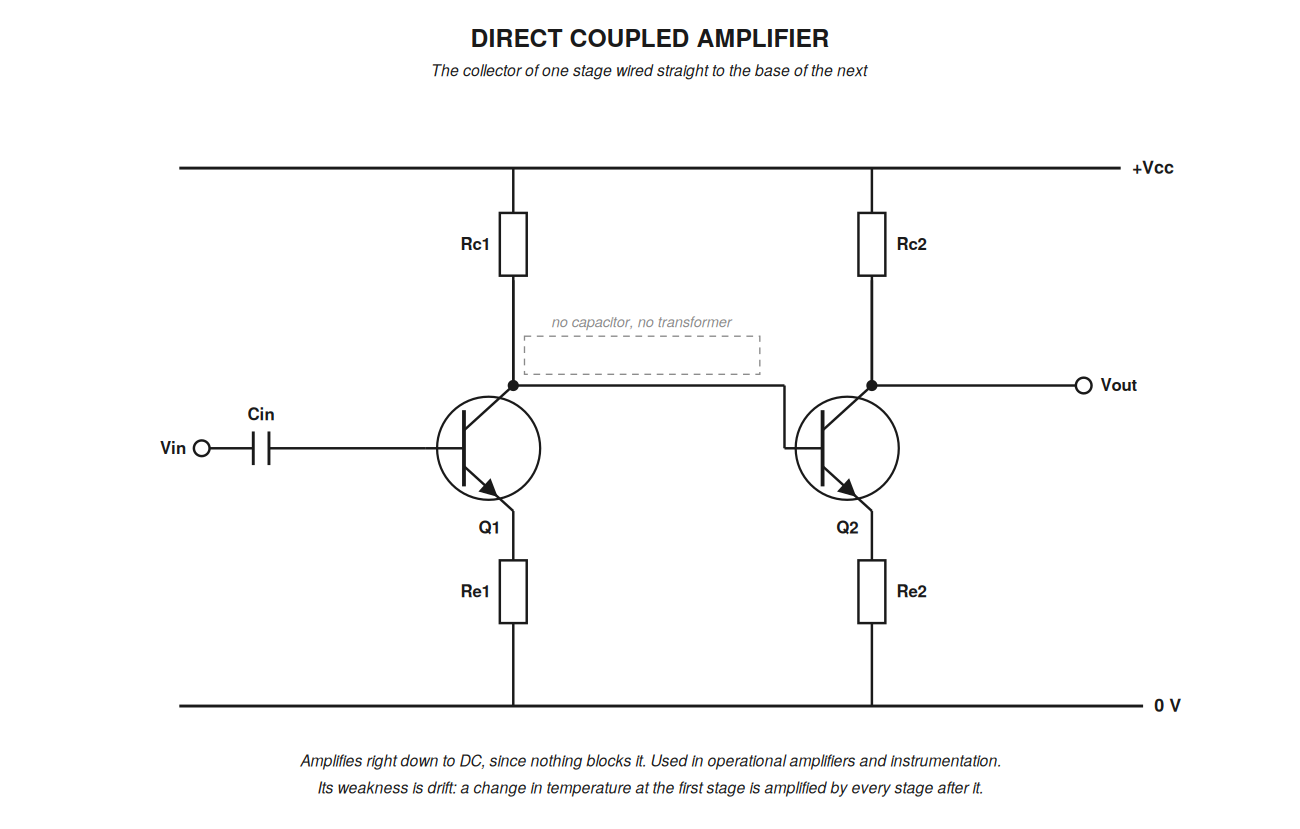

Direct Coupled Amplifiers

Direct coupling connects amplifier stages without any intermediate components, suitable for amplifying low-frequency signals in instrumentation at university laboratories.

  • Wide Frequency Response: Capable of amplifying signals from DC to high frequencies.
  • No Frequency Distortion: Absence of capacitors avoids phase shift issues.
  • Complex Design: Requires careful biasing to avoid drift and distortion.
  • Thermal Stability: Sensitive to temperature variations affecting performance.
  • Application: Used in operational amplifiers and DC amplifiers for precise measurements.

Capacitive Coupled Amplifiers

Capacitive coupling, sometimes used interchangeably with RC coupling, focuses on the capacitive element to pass AC signals while blocking DC. In practice, this is common in audio and signal processing equipment in retail electronic stores.

  • AC Signal Transmission: Allows only alternating signals to pass, blocking DC offset.
  • Frequency Limitation: Lower frequency cutoff determined by capacitor size.
  • Noise Reduction: Helps in filtering out DC noise components.
  • Component Size: Larger capacitors needed for low-frequency signals.
  • Maintenance: Capacitors may degrade over time, affecting performance.

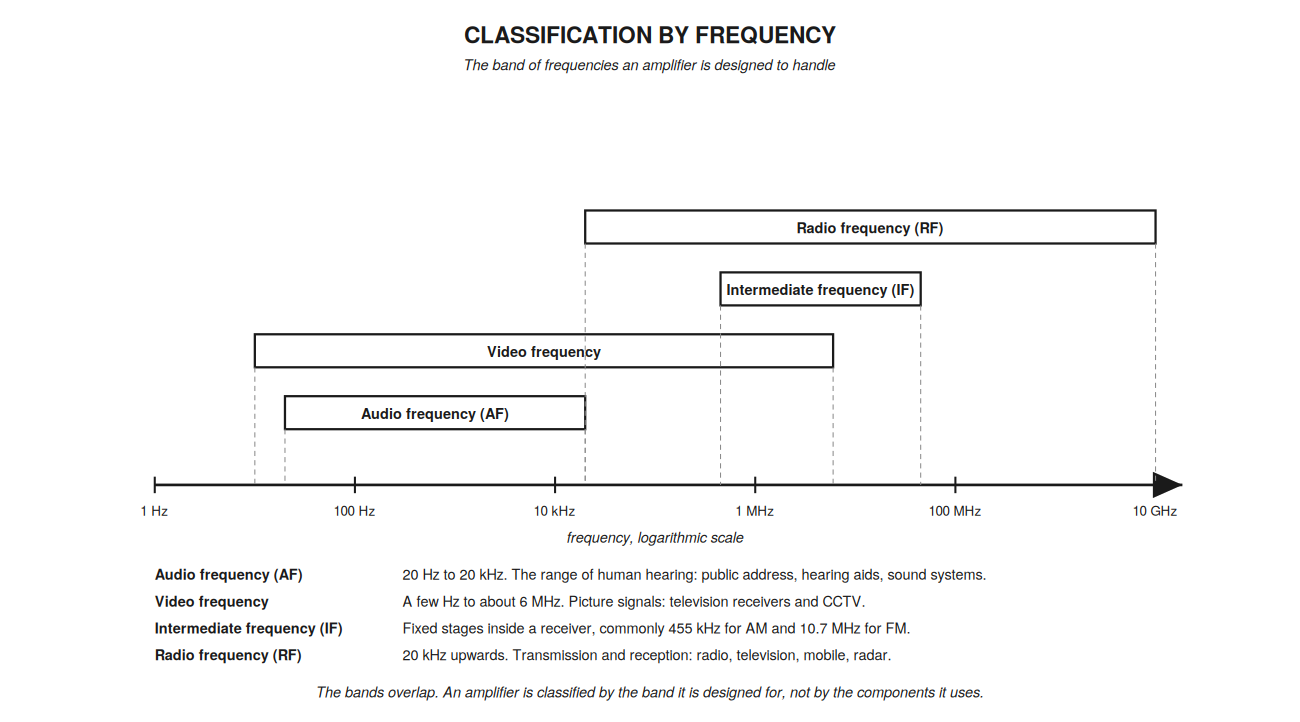

1.1.3 Frequency

Amplifiers are also classified based on the frequency range over which they effectively operate. This classification is vital when selecting amplifiers for applications like medical imaging at county referral hospitals or communication devices in SACCO offices.

Audio Frequency Amplifiers

Audio frequency amplifiers operate within the range of 20 Hz to 20 kHz, covering the spectrum of human hearing. These amplifiers are critical in sound systems at educational institutions and hotels.

  • Bandwidth: Designed to amplify signals within the audible range.
  • Low Noise: Minimized distortion to preserve sound quality.
  • Power Handling: Can drive speakers and audio output devices.
  • Application: Used in public address systems and hearing aids.
  • Design Considerations: Requires careful filtering to avoid hum and interference.

Radio Frequency Amplifiers

Radio frequency amplifiers handle signals typically from 20 kHz up to several GHz, essential in wireless communication systems in county government offices and telecommunication firms.

  • High Frequency Operation: Designed to amplify very high-frequency signals.
  • Impedance Matching: Critical for efficient signal transfer at RF.
  • Stability: Must avoid oscillations common at high frequencies.
  • Low Noise Figure: Important to maintain signal integrity.
  • Applications: Used in radio transmitters, receivers, and radar systems.

Intermediate Frequency Amplifiers

Intermediate frequency (IF) amplifiers operate at frequencies between audio and radio frequencies, commonly used in signal processing stages of communication equipment at banks and universities.

  • Fixed Frequency: Amplify signals at a predetermined intermediate frequency.
  • Selectivity: Aid in filtering and improving signal-to-noise ratio.
  • Gain Control: Allows precise amplification for clear signal detection.
  • Application: Found in superheterodyne receivers.
  • Design: Balances gain and bandwidth for optimal performance.

Video Frequency Amplifiers

Video frequency amplifiers cover a frequency range from a few Hz to several MHz, suitable for video signal processing in county hospitals and educational institutions.

  • Wide Bandwidth: Capable of handling complex video signals.
  • Low Distortion: Essential for preserving image quality.
  • High Slew Rate: Responds quickly to rapid signal changes.
  • Application: Used in television receivers and CCTV systems.
  • Design Challenges: Requires careful layout to minimize noise and interference.

Practice Questions

  1. Explain the differences between single-stage and multi-stage amplifiers, highlighting their typical applications in Kenyan professional settings. (10 marks)
  2. Describe the advantages and disadvantages of RC coupling compared to transformer coupling in amplifier circuits. (10 marks)
  3. Identify the key characteristics of radio frequency amplifiers and their importance in communication systems. (10 marks)
  4. Discuss why direct coupled amplifiers are preferred in instrumentation applications at universities. (10 marks)
The rest of this chapter
🔒

Create a free account to open more of this chapter.

Free: practical guides, quick cards, workplace scenarios and more.

Create a free account
🔒1.2 Types of Amplifiers

In many Kenyan workplaces, from county hospitals to retail businesses, amplifiers play a crucial role in enhancing signal strength for communication, instrumentation, and control systems. Different types of amplifiers cater to varying needs such as voltage gai…

🔒1.3 Feedback

Feedback plays a crucial role in the performance and stability of amplifiers used across various sectors in Kenya. Whether in medical equipment at county referral hospitals, audio systems in conference rooms of county government offices, or signal processing i…

🔒1.4 Operational amplifiers (OPAMPs)

Operational amplifiers are fundamental building blocks in analogue electronics, widely used in various Kenyan industries including healthcare instrumentation, financial data processing in banks, and sensor signal conditioning in agricultural cooperatives. Unde…

🔒1.5 Application of Amplifiers

In the Kenyan professional context, amplifiers play a crucial role across diverse sectors by enhancing signal strength to meet operational requirements. Whether in healthcare for medical instrumentation, in banking for secure communications, or in agriculture…

Chapter Summary

This chapter explored the classification of amplifiers based on stages, coupling methods, and frequency response, providing a foundation for understanding their diverse applications. It then examined specific types of amplifiers including RC coupled amplifiers, power amplifiers, and tuned amplifiers, highlighting their unique functions and design considerations. The principle of feedback was discussed, differentiating between positive and negative feedback and their effects on amplifier performance. A detailed overview of operational amplifiers was presented, covering their construction, ideal and practical characteristics, and various configurations such as inverting, non-inverting, voltage follower, summing, differential, instrumentation amplifiers, as well as integrators, differentiators, comparators, and Schmitt triggers. The chapter concluded by emphasizing the broad range of amplifier applications across different electronic systems, illustrating their critical role in signal processing and control.

Self-Assessment

🔒 PDFDownload this self-assessment, with answers

A. Written Assessment

  1. Define an amplifier and explain its primary function in analogue electronics. (3 marks)
  2. Differentiate between single-stage and multi-stage amplifiers with examples. (4 marks)
🔒20 more in this section.

Chapter Examination Questions

🔒 PDFDownload these examination questions, with model answers

SECTION A (40 Marks) - Answer ALL Questions

  1. Classify amplifiers based on the number of stages and provide an example of where a single-stage amplifier might be used in a county hospital's medical equipment. (4 marks)
  2. Explain the difference between RC coupling and transformer coupling in amplifiers, citing an example of their use in a university audio system. (4 marks)
🔒18 more in this section.

Chapter Practical Activities

Practical 1: Classification and Identification of Amplifier Types

Electrical Engineering · Level 6
Analogue Electronics II
PRACTICAL ASSESSMENT
TIME: 4 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)

Type: Individual

INSTRUCTIONS TO CANDIDATE:
1.  You are required to perform the following task:
i.  Classify and identify five types of amplifiers based on stages, coupling methods, and frequency response, using the provided amplifier modules and test equipment.
2.  You have been provided with the following resources for the practical task:
Tools & EquipmentMaterials
Digital MultimeterAssorted Amplifier Circuit Modules
OscilloscopeConnecting Jumper Wires
Power Supply 12 V DCResistors (1 kΩ, 10 kΩ)
BreadboardPPE (Safety boots, Overall)
Electronics Tool Kit (Wire Cutter, Stripping Knife, Screwdriver)
⬇ PDFResources Required (Cutting List)
S/NItemQuantity
1Digital Multimeter1 Pc per Candidate
2Oscilloscope1 Pc per 2 Candidates
3Assorted Amplifier Circuit Modules (Common Emitter, Common Collector, Class A, Class B, Transformer Coupled)1 Set per Candidate
4Connecting Jumper Wires10 Pcs per Candidate
5Power Supply 12 V DC1 Pc per 3 Candidates
6Breadboard1 Pc per Candidate
7Resistors (1 kΩ, 10 kΩ)2 Pcs each per Candidate
8PPE (Safety boots, Overall)1 Set per Candidate
9Electronics Tool Kit (Wire Cutter, Stripping Knife, Screwdriver)1 Set per Candidate
⬇ PDFAssessor Guide
Items to be EvaluatedMarks AvailableMarks ObtainedComments
TASK 1: Safety and Preparation
Wore safety clothing including safety boots and overall
(Award 2 marks if PPE worn correctly, else 0)
2
Ensured clean and well-ventilated working area
(Award 2 marks for neat and safe environment)
2
Assembled all tools and amplifier modules required for the task
(Award 2 marks for complete and correct assembly)
2
Checked power supply and test instruments for proper operation
(Award 2 marks if equipment is functional and safe to use)
2
Sub-Total8
TASK 2: Classification and Identification
Connected each amplifier module correctly on the breadboard
(Award 1 mark per correctly connected amplifier, max 4 marks)
4
Measured voltage gain and input/output characteristics using digital multimeter and oscilloscope
(Award 1 mark per correct measurement and interpretation, max 5 marks)
5
Identified amplifier type based on stages (single-stage, multi-stage)
(Award 3 marks for correct classification of all modules)
3
Identified coupling method (direct, RC, transformer coupling) for each amplifier
(Award 3 marks for correct identification)
3
Classified amplifiers based on frequency response (low frequency, high frequency, wideband)
(Award 3 marks for accurate classification)
3
Sub-Total18
PRODUCT CHECKLIST
Accurate classification table of amplifier types with descriptions and test results
(Award 8 marks for complete and accurate documentation matching measured data)
8
Neatness and organization of work area and documentation
(Award 4 marks if work area and report are tidy and logically presented)
4
Sub-Total12
GRAND TOTAL38
ASSESSMENT OUTCOME:   ☐ Competent    ☐ Not Yet Competent (competent if at least 50%)

Practical 2: Construct and Test an RC Coupled Amplifier Circuit

Electrical Engineering · Level 6
Analogue Electronics II
PRACTICAL ASSESSMENT
TIME: 4 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)

Type: Individual

INSTRUCTIONS TO CANDIDATE:
1.  You are required to perform the following task:
i.  Construct an RC coupled amplifier circuit on a 100mm x 150mm copper strip board and measure its voltage gain at 1kHz and frequency response from 100Hz to 10kHz.
2.  You have been provided with the following resources for the practical task:
Tools & EquipmentMaterials
Soldering IronCopper Strip Board 100mm x 150mm
Wire Cutter and StripperBC109 NPN Transistor
Digital MultimeterResistor 1 kΩ
OscilloscopeResistor 4.7 kΩ
Function GeneratorResistor 10 kΩ
Electronics ToolkitCapacitor 10 µF Electrolytic
Capacitor 0.01 µF Ceramic
Jumper Wires
Solder Wire
PPE (Safety boots, Overall)
⬇ PDFResources Required (Cutting List)
S/NItemQuantity
112V DC Power supply1 Pc per 5 Candidates
2Digital Multimeter1 Pc per 5 Candidates
3Function Generator (100Hz to 10kHz)1 Pc per 5 Candidates
4Oscilloscope1 Pc per 5 Candidates
5Soldering Iron1 Pc per Candidate
6Solder Wire (Lead-Free)1 Pc per 5 Candidates
7Copper Strip Board 100mm x 150mm1 Pc per Candidate
8BC109 NPN Transistor2 Pcs per Candidate
9Resistor 1 kΩ ±5%1 Pc per Candidate
10Resistor 4.7 kΩ ±5%1 Pc per Candidate
11Resistor 10 kΩ ±5%1 Pc per Candidate
12Capacitor 10 µF, 16V Electrolytic2 Pcs per Candidate
13Capacitor 0.01 µF Ceramic1 Pc per Candidate
14Jumper WiresEnough per Candidate
15Wire Cutter and Stripper1 Pc per Candidate
16PPE (Safety boots, Overall)1 Set per Candidate
17Electronics Toolkit (Screwdriver, Pliers)1 Set per Candidate
⬇ PDFAssessor Guide
Items to be EvaluatedMarks AvailableMarks ObtainedComments
TASK 1: Safety and Preparation
Wore PPE including safety boots and overall
(Award 2 marks for correct PPE usage, else 0)
2
Observed environmental safety: proper ventilation and waste disposal
(Award 2 marks for compliance, else 0)
2
Assembled all tools, equipment and materials before starting
(Award 2 marks for completeness, else 0)
2
Sub-Total6
TASK 2: Component Identification and Mounting
Identified BC109 transistors correctly
(Award 2 marks for correct identification)
2
Identified resistors: 1 kΩ, 4.7 kΩ, 10 kΩ
(2 marks each resistor correctly identified)
6
Identified capacitors: 10 µF electrolytic and 0.01 µF ceramic
(2 marks each capacitor correctly identified)
4
Mounted all 6 components on copper strip board correctly
(1 mark per component mounted properly)
6
Sub-Total18
TASK 3: Soldering and Circuit Completion
Soldered 14 joints correctly without cold solder or bridges
(1 mark per good solder joint)
14
Used copper strip board economically with neat component layout
(Award up to 5 marks for neatness and efficient use)
5
Sub-Total19
TASK 4: Testing and Measurements
Measured voltage at transistor collector (TP1) ~ 3V with DMM
(Award 3 marks for correct voltage measurement)
3
Measured voltage gain at 1kHz using oscilloscope and function generator
(Award 5 marks for correct gain measurement and procedure)
5
Sub-Total8
PRODUCT CHECKLIST
Circuit functions as RC coupled amplifier with voltage gain > 10 at 1kHz
(Award 7 marks if gain meets specification, else partial)
7
Frequency response measured shows amplification from 100Hz to 10kHz
(Award 8 marks for correct frequency response measurement and interpretation)
8
Circuit layout is neat with no visible solder bridges or loose connections
(Award 5 marks for neatness and workmanship)
5
Sub-Total20
GRAND TOTAL71
ASSESSMENT OUTCOME:   ☐ Competent    ☐ Not Yet Competent (competent if at least 50%)
🔒

Free: practical guides, quick cards, workplace scenarios and more.

Create a free account
🔒Build and Evaluate a 10W Class AB Power AmplifierPractical 3
🔒Assemble and test a tuned amplifier circuit 100mm x 80mm on copper strip boardPractical 4
🔒Implement feedback in a transistor amplifier circuitPractical 5
🔒Construct and Demonstrate a Positive Feedback Amplifier CircuitPractical 6
🔒Build and Test a Negative Feedback Amplifier CircuitPractical 7
🔒Construct and Analyze an Inverting Op-Amp AmplifierPractical 8
🔒Construct and test a non-inverting op-amp amplifier circuit 100mm x 80mm on copper strip boardPractical 9
🔒Build Voltage Follower (Buffer) Using Op-AmpPractical 10
🔒Assemble and Test a Summing Amplifier CircuitPractical 11
🔒Build and Test Differential and Instrumentation AmplifiersPractical 12
🔒Construction of Integrator and Differentiator Op-Amp CircuitsPractical 13
🔒Build and test comparator and Schmitt trigger circuitsPractical 14
🔒Design and Test a Single Stage Audio Amplifier CircuitPractical 15
Flashcards 20 cards Study deck ▾
Question
1

↻ Tap card to reveal answer
🔒

18 more in this section.

Create a free account
Test Yourself 17 questions Start quiz ▾
0%
0 / 2
🔒

15 more in this section.

Create a free account
Am I competent?

At the start of this chapter we promised you would be able to:

  • Identify different types of materials using semiconductor theory.
  • Recognize semiconductor materials based on their electrical conductivity properties.

Tick each one you can genuinely do.

Prove it — in the simulator

Sample simulation — try how the simulator works. A version built for this chapter's practical is coming.

Prepare Kenyan PilauLocked ▸

Free: practical guides, quick cards, workplace scenarios and more.

Now — are you there yet?

You're competent when you can confidently do 50% or more of what this chapter promised.

Sign in to record how you're doing.
