Electrostatics plays a fundamental role in many professional fields across Kenya, from healthcare facilities managing sensitive electronic equipment to banks securing data centers against static discharge. Understanding electrostatic quantities enables professionals to identify, control, and safely apply electrostatic principles in diverse workplaces such as county government offices, retail businesses, and agricultural cooperatives. This chapter introduces the key electrostatic quantities that govern static electric phenomena, providing learners from all sectors with essential knowledge to appreciate how charges behave and interact in everyday environments.

4.1 Electrostatics Quantities

Electrostatics quantities are the measurable aspects of static electricity that describe the nature and behavior of electric charges at rest. These quantities form the basis for analyzing electrostatic forces, potentials, and fields, which influence equipment operation, material handling, and safety procedures in workplaces like hospitals and universities. Grasping these quantities is crucial for professionals to apply electrostatic principles effectively and prevent hazards such as electrostatic discharge damage in electronics or sparks causing fires in retail storage areas.

4.1.1 Electric Charge: Nature and Measurement

Electric charge is a fundamental property of matter that causes it to experience a force in an electric field. It exists in two types: positive and negative, corresponding to the presence or absence of electrons. In Kenyan hospitals, for example, managing electric charge is important in operating sensitive medical devices that can malfunction if exposed to unexpected static charges.

Nature of Electric Charge

• Discrete and Quantized: Electric charge is carried by elementary particles such as electrons and protons. Electrons have a negative charge, while protons carry a positive charge, each with a fixed magnitude of approximately 1.6 x 10^-19 coulombs. This quantization means charge occurs in integer multiples of this elementary charge.
• Conservation of Charge: Electric charge is neither created nor destroyed in an isolated system. For instance, in a county government office, when employees use photocopiers, static charges generated on paper surfaces balance out as charges move, preserving overall charge.
• Like Charges Repel, Opposite Charges Attract: This fundamental interaction explains why static electricity causes fabrics to cling in retail clothing stores or why dust is attracted to computer screens in university labs.
• Charge Can Be Transferred: Charges can move from one object to another through conduction, induction, or friction. At agricultural cooperatives, handling plastic packaging materials can lead to charge transfer, which may cause static cling or sparks.
• Measured in Coulombs (C): The unit of electric charge is the coulomb, a standard unit recognized internationally and used in Kenyan industries to quantify static electricity levels when testing electronic equipment.

Measurement of Electric Charge

• Electroscope Use: An electroscope detects the presence and relative magnitude of static charge by the divergence of metal leaves. This simple device is used in educational institutions to demonstrate charge phenomena.
• Faraday Cup: A Faraday cup collects charged particles to measure their total charge, applicable in research laboratories in Kenyan universities.

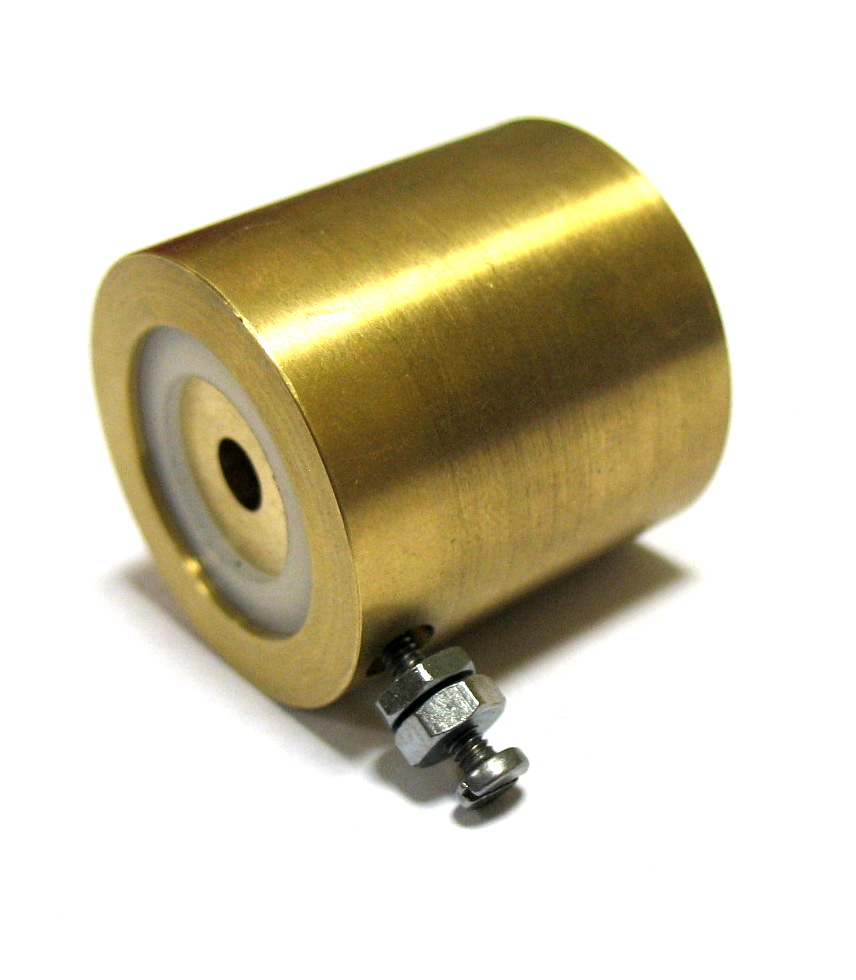

Brass Faraday cup for charged particle measurement (Source: Wikimedia Commons)

• Charge Sensors: Modern electronic charge sensors provide precise measurement of static charge on surfaces, useful in banks safeguarding sensitive electronic transactions.

• Triboelectric Series: This series ranks materials by their tendency to gain or lose electrons, helping professionals in retail and hospitality to predict and mitigate static buildup.

• Charge Quantification: Using standard formulas, charge can be calculated or estimated based on current flow over time, aiding technicians in county referral hospitals when diagnosing equipment faults.

4.1.2 Electric Field: Definition and Characteristics

The electric field is a vector field surrounding charged objects that exerts force on other charges within the field. It explains how static charges influence each other over a distance without physical contact, a principle relevant in environments such as bank data centers where electrostatic shielding is necessary.

Definition of Electric Field

• Force per Unit Charge: The electric field at a point is defined as the force experienced by a positive test charge placed at that point divided by the magnitude of the charge. This definition allows calculation of force effects without the test charge influencing the field.
• Vector Quantity: Electric fields have both magnitude and direction, pointing away from positive charges and toward negative charges, critical in designing layouts for electronic equipment in schools to avoid interference.
• Field Lines: Imaginary lines represent the direction and strength of the field; denser lines indicate stronger fields. This visualization aids technicians in county government offices to understand potential static hazards.
• Superposition Principle: Electric fields from multiple charges add vectorially, meaning complex charge distributions in retail warehouses can be analyzed by summing individual fields.
• Units in Newtons per Coulomb (N/C): This unit quantifies the force per unit charge, standard in all Kenyan scientific and technical measurements involving electrostatics.

Characteristics of Electric Field

• Radial Symmetry Around Point Charges: The field radiates symmetrically from isolated charges, which is important when assessing static buildup around isolated equipment in hotels.
• Field Strength Decreases with Distance: The intensity of the electric field diminishes with the square of the distance from the charge, influencing safety distances maintained around charged objects in agricultural processing plants.
• Affected by Medium: The presence of materials between charges affects field strength due to permittivity, relevant in designing insulating materials used in Kenyan universities.
• Electric Field Inside Conductors: In electrostatic equilibrium, the electric field inside a conductor is zero, a principle applied in protecting sensitive electronics in county referral hospitals.
• Field Direction Determines Charge Movement: Positive charges move along the field direction, while negative charges move opposite, explaining static discharge paths in retail shops.

4.1.3 Electric Potential and Potential Difference

Electric potential is the work done per unit charge in bringing a charge from infinity to a point in an electric field. Potential difference, or voltage, is the difference in electric potential between two points, concepts central to understanding static electric effects in everyday professional settings.

Electric Potential

• Scalar Quantity: Unlike electric field, electric potential has magnitude only, simplifying calculations related to static charge distribution in institutions like banks.
• Reference Point at Infinity: Potential is measured relative to a point at infinity where potential is zero, providing a baseline in electrostatic evaluations in county offices.
• Work Done Against Electric Field: It represents the energy required to move a charge, important in assessing risks of static discharge in hotel environments.
• Measured in Volts (V): The volt is the standard unit, widely used in Kenyan electrical and electronic applications.
• Potential Around Point Charge: The potential decreases with distance from the charge, affecting how static charges accumulate on large surfaces in agricultural cooperatives.

Potential Difference

• Driving Force for Charge Movement: Potential difference causes charges to move, which explains sparks generated when touching metal surfaces in retail environments.
• Measured Between Two Points: It quantifies how much work is needed to move a charge between those points, essential for technicians in universities troubleshooting static-related faults.
• Relates to Energy per Charge: It indicates energy available to do work per coulomb of charge, used in designing safety protocols in hospitals.
• Can Exist Without Current: Potential difference can exist even when no current flows, explaining static buildup on clothing in banks.
• Basis for Voltage Measurement: Voltage meters measure potential difference, a common tool in county government maintenance departments.

4.1.4 Capacitance and Its Practical Implications

Capacitance is the ability of a system to store electric charge per unit potential difference. It affects how materials and devices accumulate and release static charge, an important consideration for professionals in ICT and hospitality sectors managing electronic devices and equipment.

Definition of Capacitance

• Charge Storage Capacity: Capacitance quantifies how much charge a body can store at a given voltage, influencing design of electronic components in Kenyan universities.
• Measured in Farads (F): The farad is the unit, although practical capacitances are often in microfarads or picofarads due to large size of one farad.
• Depends on Geometry and Medium: Capacitance increases with surface area and decreases with separation distance between conductors, relevant for designing packaging in retail industries.
• Energy Storage: Capacitors store energy electrostatically, used in power backup systems in county hospitals.
• Influences Discharge Rate: Higher capacitance means slower discharge, important in managing static discharge risks in agricultural processing plants.

Practical Implications of Capacitance

• Static Electricity Control: Materials with high capacitance can accumulate more static charge, requiring grounding in bank data centers.
• Electrostatic Discharge (ESD) Prevention: Understanding capacitance helps in designing protective measures against ESD in ICT equipment at universities.
• Design of Sensors: Capacitive sensors detect changes in charge storage, applied in security systems in county government offices.
• Influence on Signal Integrity: In hospitality, capacitive effects affect wireless communication devices, necessitating proper device placement.
• Safety in Handling: Knowledge of capacitance guides handling procedures for charged materials in retail warehouses to prevent shocks.

Chapter Summary

This chapter introduced fundamental electrostatics quantities such as charge, electric field, and capacitance, which form the basis for understanding electrostatic phenomena. It then explored different types of capacitors, highlighting their construction and specific uses in electrical circuits. The concept of charge and the electrostatic field was examined to explain how charges interact and create forces within an electric field. The behavior of capacitors connected in series and parallel was analyzed to understand how total capacitance varies with different configurations. Techniques for measuring capacitance were discussed, emphasizing the importance of accuracy in practical applications. Various applications of capacitors were covered, illustrating their role in energy storage, filtering, and signal processing. Finally, methods for testing capacitors were presented to ensure their functionality and reliability in electrical systems.
