Solar photovoltaic (PV) systems are increasingly vital across Kenya’s diverse professional sectors, providing sustainable energy solutions that reduce reliance on grid electricity and fossil fuels. Whether powering a county referral hospital, a university campus, a retail business, or a farm cooperative, understanding the components of a solar PV system is essential for effective installation and maintenance. This chapter introduces the main components involved in solar PV systems, focusing on solar panels, charge controllers, and cables, each critical to system performance and longevity.

3.1 Components of Solar System

Solar PV systems convert sunlight into usable electrical energy through interconnected components. Mastery of these components’ functions, specifications, and installation requirements equips TVET diploma graduates to support Kenya’s growing demand for renewable energy in various sectors.

3.1.1 Solar Panels

Solar panels form the core of any photovoltaic system by capturing solar radiation and converting it into direct current (DC) electricity. Their design, efficiency, and durability directly influence the system’s output and suitability for different environments such as schools, hotels, or county government offices.

Types of Solar Panels

Solar panels are categorized based on the semiconductor material and construction technology, each suited for specific applications and budgets.

• Monocrystalline Panels: Made from single-crystal silicon, these panels have high efficiency and a sleek black appearance. They perform well in limited space setups such as urban clinics or small business premises.

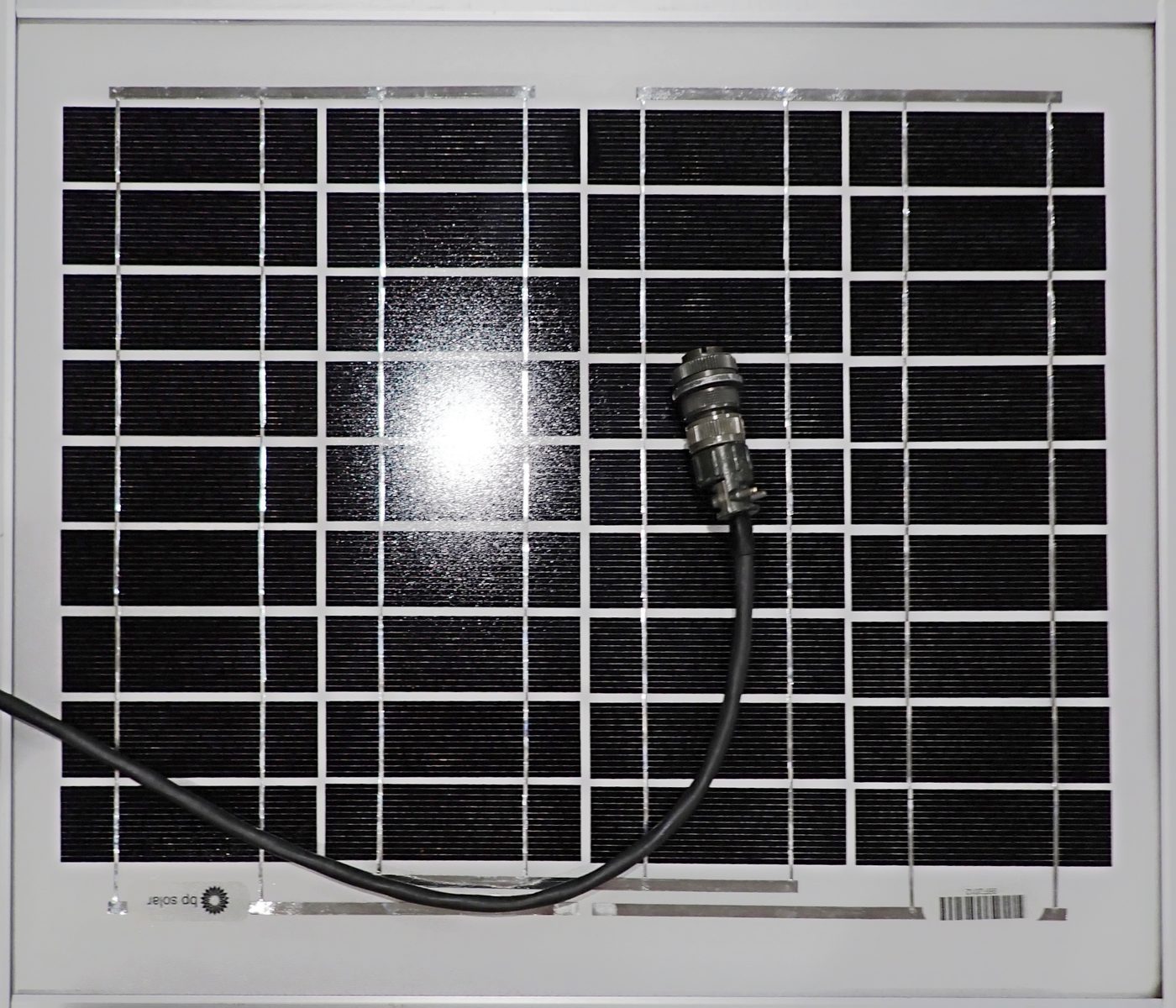

Monocrystalline solar panel with connector cable (Source: Wikimedia Commons)

• Polycrystalline Panels: Composed of multiple silicon crystals, they are less efficient but more affordable. Suitable for large-scale installations like university campuses or farms with ample roof or land space.

• Thin-Film Panels: These are lightweight and flexible, using materials such as cadmium telluride or amorphous silicon. Their lower efficiency makes them ideal for portable or curved surfaces in mobile health clinics or temporary setups.

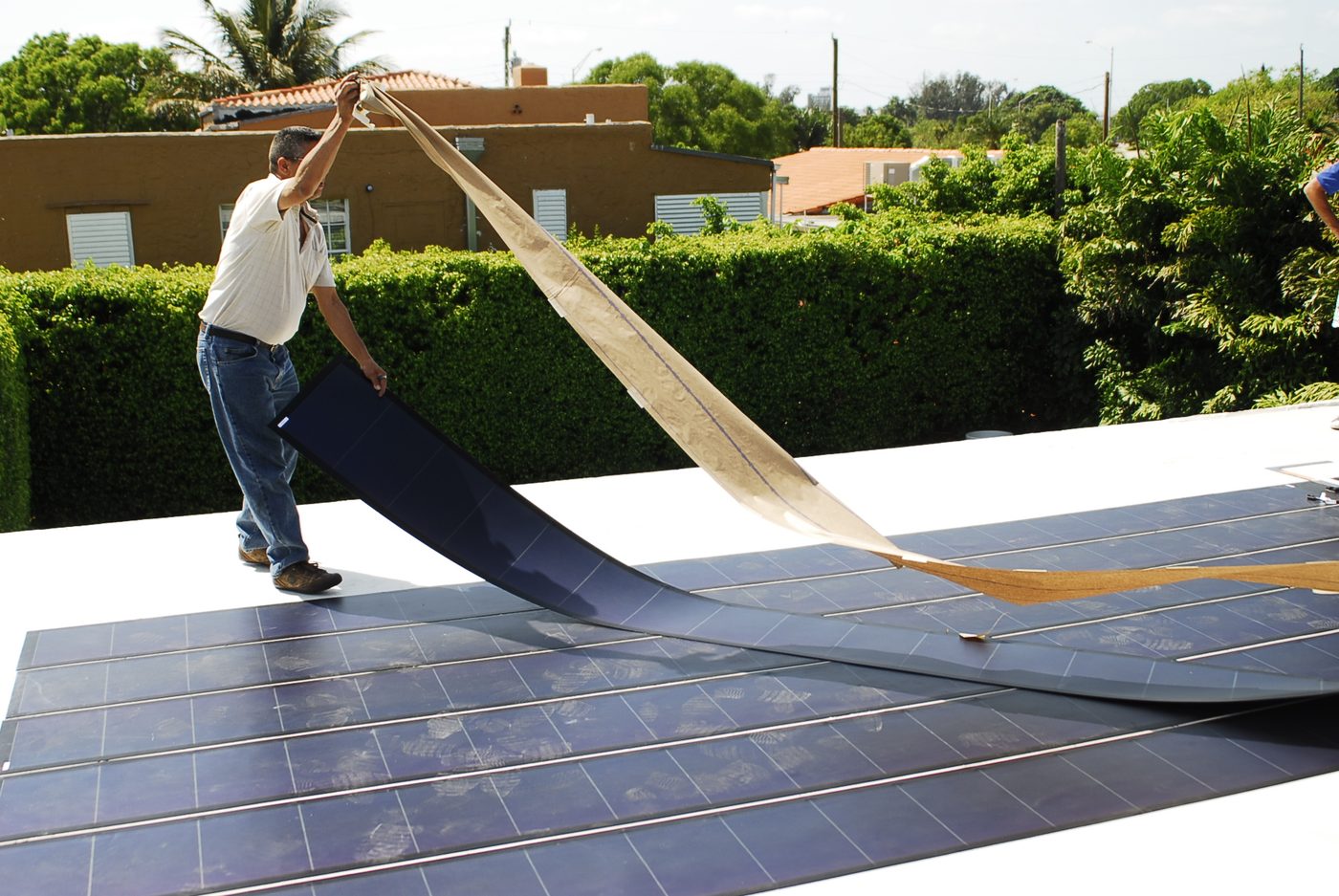

Flexible thin-film solar panels being installed (Source: Wikimedia Commons)

• Bifacial Panels: Capable of capturing sunlight from both sides, increasing energy yield. Useful in open spaces like county government offices with reflective surfaces beneath.
• Building-Integrated Photovoltaics (BIPV): Integrated into building materials such as windows or facades, blending aesthetics with energy generation, ideal for modern hotels seeking eco-friendly designs.

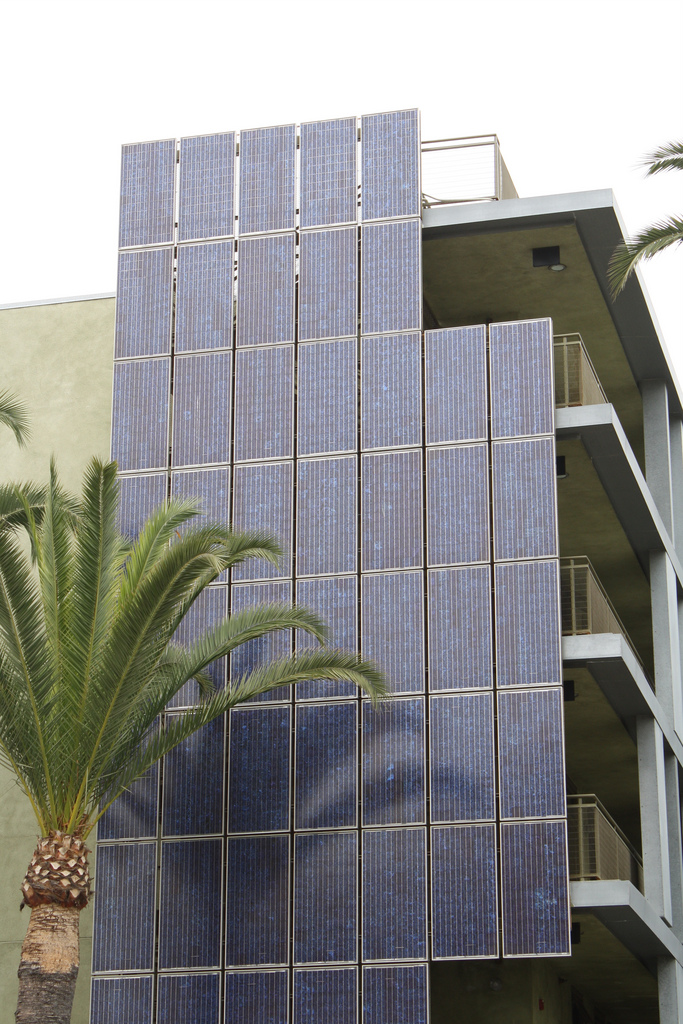

Building facade with integrated photovoltaic panels (Source: Wikimedia Commons)

Solar Panel Specifications

Installation Considerations for Solar Panels

Proper installation maximizes energy capture and system lifespan. For example, a county hospital in Kisumu must consider panel tilt angle and orientation to optimize solar exposure throughout the year.

• Orientation: Panels should face true north in Kenya to maximize sunlight capture.
• Tilt Angle: Typically set between 10° and 15° depending on latitude and seasonal sun path.
• Mounting Structure: Must be sturdy and corrosion-resistant to withstand wind and rain.
• Shading Avoidance: Panels must be installed away from trees, buildings, or other obstructions.
• Accessibility: Ensure panels are reachable for cleaning and maintenance without safety risks.

Maintenance of Solar Panels

Maintaining panels ensures sustained performance, especially in dusty or rainy regions like Machakos or Nakuru.

• Regular Cleaning: Dust and bird droppings reduce efficiency; clean panels with water and non-abrasive cloth monthly.
• Inspection for Damage: Check for cracks or discoloration quarterly.
• Tightening Mounts: Prevent loosening caused by wind vibrations.
• Electrical Connections Check: Ensure no corrosion or loose wires.
• Performance Monitoring: Use system meters to track output and detect early faults.

3.1.2 Types and working principle of; -

The charge controller regulates the voltage and current from solar panels to batteries, preventing overcharging and deep discharging, which are critical for battery longevity and system reliability in settings such as schools or retail outlets.

Types of Charge Controllers

Charge controllers vary in complexity and functionality, tailored to different system sizes and battery types.

• Pulse Width Modulation (PWM): Simplest type that reduces voltage from panels to battery level by switching on and off rapidly. Cost-effective for small systems like rural clinics.
• Maximum Power Point Tracking (MPPT): More sophisticated, it adjusts the panel voltage to harvest maximum power. Ideal for larger installations such as university hostels or warehouses.
• Shunt Controllers: Diverts excess current away from batteries; less common in modern systems.
• Series Controllers: Interrupts current flow when batteries are full, protecting from overcharge.
• Hybrid Controllers: Combine MPPT and PWM features for optimized performance across variable conditions.

Working Principle of Charge Controllers

Charge controllers ensure battery health by managing the energy flow from solar panels.

• Voltage Regulation: Maintains battery voltage within safe limits to avoid damage.
• Current Limiting: Controls charging current to prevent overheating.
• Battery State Monitoring: Detects full charge and switches to float mode.
• Load Control: Some controllers can disconnect loads to prevent deep battery discharge.
• Temperature Compensation: Adjusts charging parameters based on ambient temperature for accurate battery care.

Selection Criteria for Charge Controllers

Choosing the right controller depends on system requirements and environmental conditions.

• System Voltage Compatibility: Must match battery bank voltage (12V, 24V, or 48V).
• Maximum Current Rating: Should exceed the maximum current from solar panels.
• Battery Type Support: Compatible with lead-acid, lithium-ion, or other battery chemistries.
• Additional Features: Such as remote monitoring, LCD displays, or load control.
• Environmental Ratings: Weatherproof casing for outdoor installations at farms or county offices.

Maintenance and Troubleshooting of Charge Controllers

Regular checks prevent system downtime in critical facilities like hospitals or hotels.

• Visual Inspection: Look for physical damage or corrosion monthly.
• Connection Tightness: Ensure terminals are secure to avoid voltage drops.
• Firmware Updates: For advanced controllers, keep software current.
• Temperature Checks: Prevent overheating by ensuring proper ventilation.
• Error Code Monitoring: Use controller display or remote systems to detect faults early.

3.1.3 Cables

Cables transmit electrical energy between solar panels, charge controllers, batteries, and loads. Their quality and correct sizing affect system efficiency and safety in all professional environments from SACCO offices to agricultural cooperatives.

Types of Cables Used in Solar PV Systems

Different cable types serve specific functions based on current capacity, insulation, and installation environment.

• Photovoltaic (PV) Wire: UV-resistant with double insulation, suitable for outdoor solar panel wiring.

• Copper Conductors: Preferred for high conductivity and flexibility.

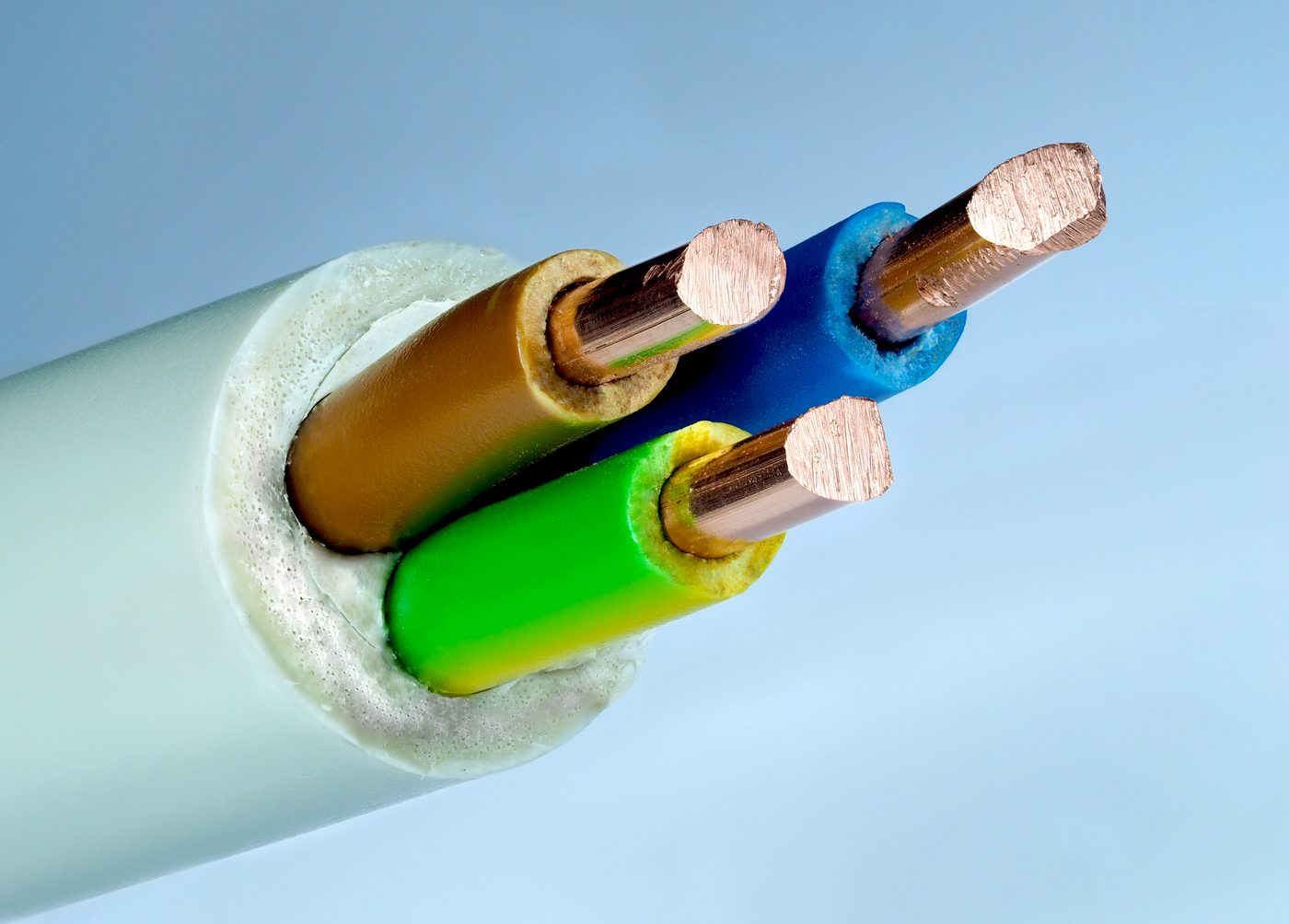

Copper conductors inside insulated electrical cable (Source: Wikimedia Commons)

• Aluminum Conductors: Less common but used in cost-sensitive large systems.

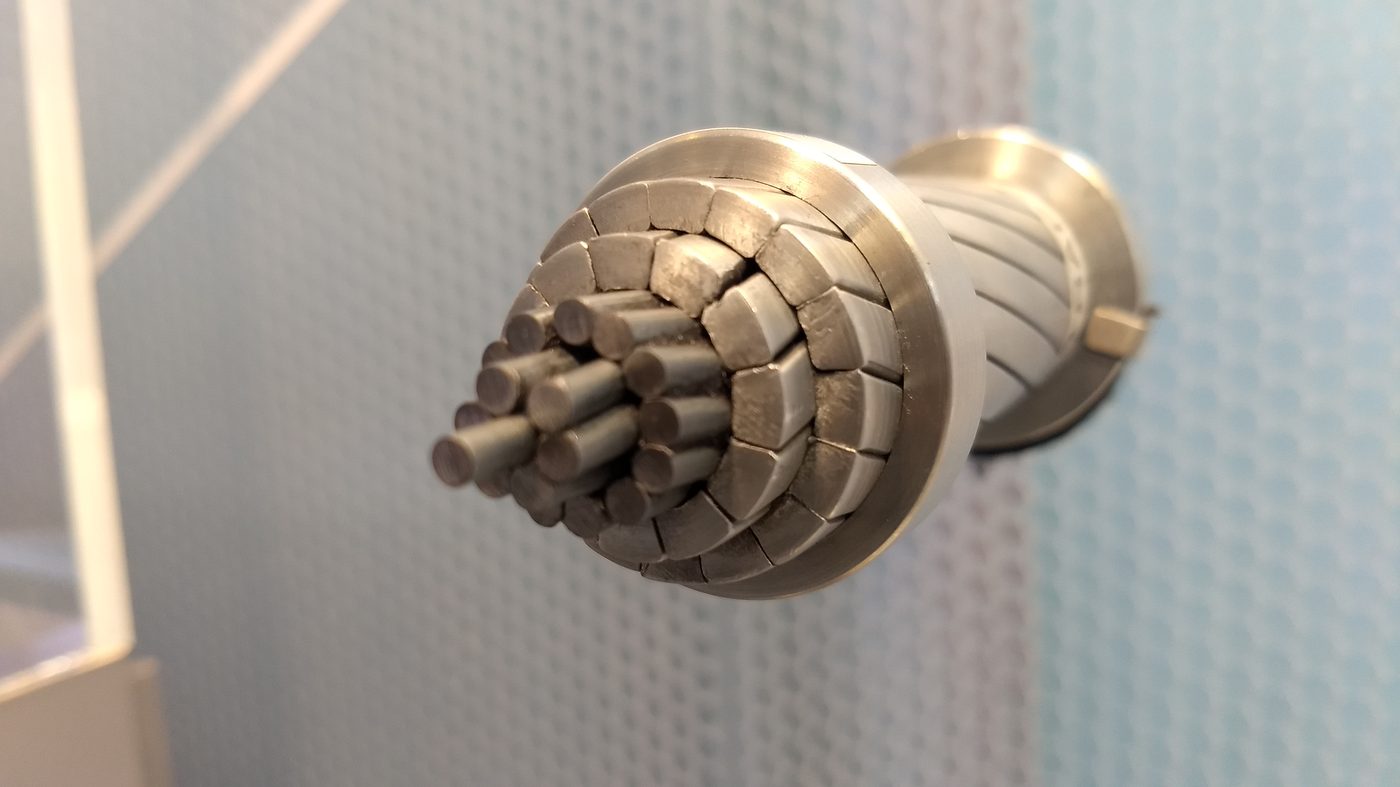

cross-section of aluminum conductor cable (Source: Wikimedia Commons)

• Twin Core Cables: Used for DC connections between panels and controllers.

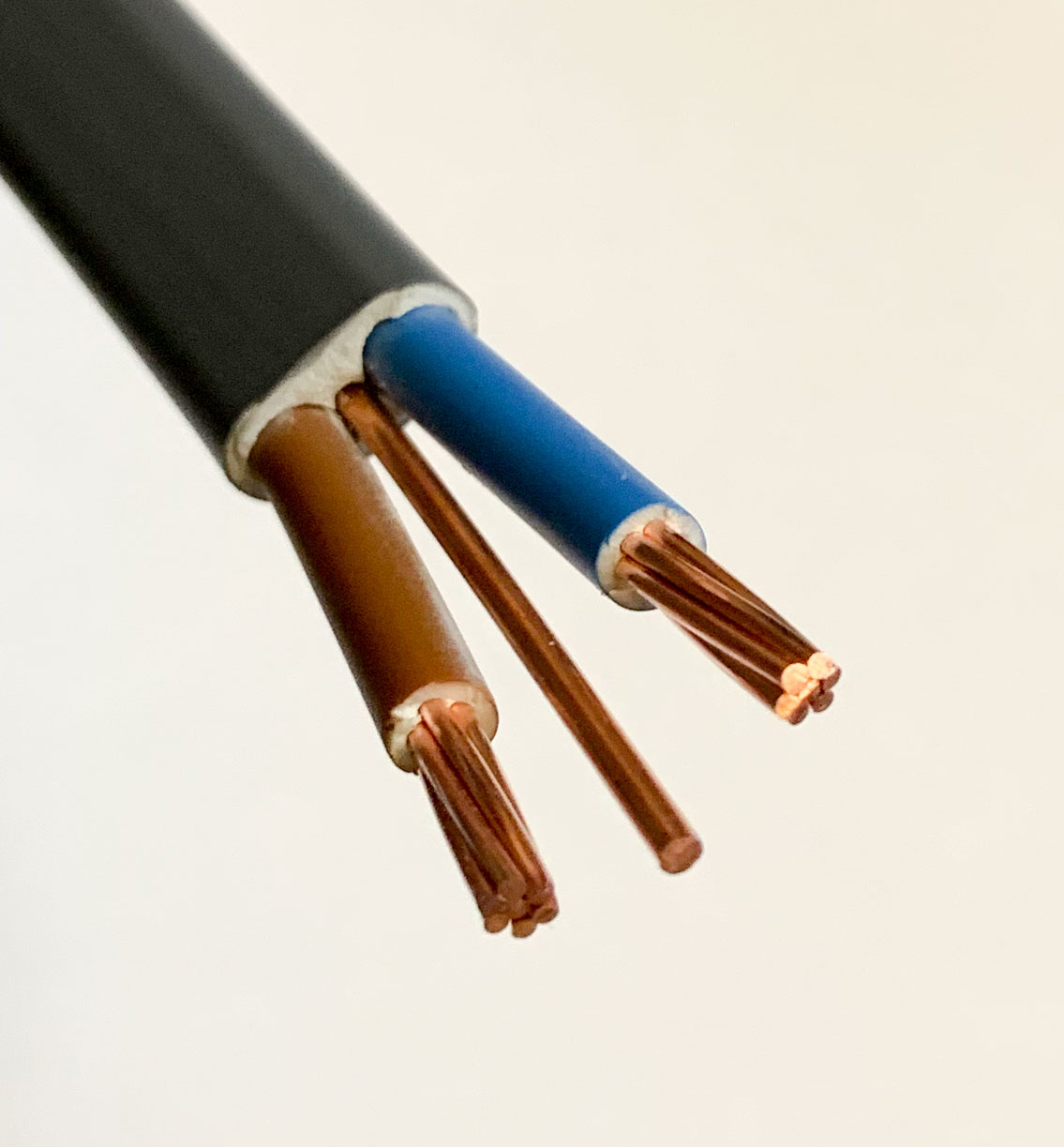

Close-up of twin core electrical cable (Source: Wikipedia (Twin and earth))

• Multi-Core Cables: For AC wiring from inverters to loads or grid.

Cable Sizing and Voltage Drop Considerations

Correct cable sizing prevents excessive voltage drop, which reduces system output and may damage components. For example, a retail business in Eldoret must ensure cable runs are optimized to maintain voltage within acceptable limits.

• Current Carrying Capacity: Cables must handle the maximum expected current without overheating.
• Voltage Drop Limits: Should be kept below 3% for DC circuits and 5% for AC circuits.
• Cable Length: Longer runs require larger cross-sectional areas.
• Ambient Temperature: Higher temperatures reduce cable current capacity.
• Installation Method: Underground cables need different specifications compared to aerial cables.

Cable Installation Best Practices

Proper cable installation safeguards system functionality and user safety.

• Use of Conduits: Protect cables from mechanical damage and UV exposure.
• Secure Fastening: Prevent sagging and accidental disconnection.
• Color Coding: Standardize positive (red) and negative (black) DC cables for easy identification.
• Avoiding Sharp Bends: Maintain cable integrity by adhering to minimum bending radius.
• Grounding: Ensure proper earthing to mitigate electrical hazards.

Maintenance and Safety Precautions for Cables

Routine maintenance reduces fire risks and system faults in environments like county government offices or hotels.

• Regular Inspections: Check for insulation cracks, wear, or rodent damage.
• Cleaning: Remove dust or debris that may cause overheating.
• Tightening Connections: Loose terminals can cause sparks or power loss.
• Use of Proper Tools: Avoid damaging cables during repairs or extensions.
• Adherence to Electrical Codes: Follow Kenya’s electrical standards and NEMA guidelines.

Chapter Summary

This chapter provided a detailed overview of the components that make up a solar photovoltaic system, beginning with solar panels, their various types, and the different methods used to connect them. It also covered the importance of solar panel mounting structures and proper positioning to maximize energy capture. The discussion then moved to key system elements such as charger controllers, inverters, and solar batteries, explaining their types and operating principles. Attention was given to the role of cables in ensuring efficient and safe electrical connections within the system. The chapter further explored how solar PV systems can be integrated with other power sources to enhance reliability and performance. Proper care and maintenance practices for solar PV components were emphasized to ensure longevity and optimal functionality. Finally, the preparation of as-built drawings was highlighted as an essential step for documentation and future reference during system operation and maintenance.
