Civil engineering projects rely heavily on strong, stable foundations to support structures safely and durably. The substructure, particularly foundations, transfers loads from the superstructure to the ground, ensuring stability and preventing settlement or failure. In Kenya, where soil conditions vary widely from Nairobi’s volcanic soils to Mombasa’s sandy coastal deposits, selecting the appropriate foundation type is critical to project success. This chapter explores common foundation types used in civil engineering works, focusing on their design principles, applications, and suitability in various ground conditions.

3.1 Types of Foundation

Foundations are engineered to distribute structural loads safely to the earth. The choice of foundation type depends on soil bearing capacity, load magnitude, water table level, and construction budget. In Kenya, engineers often encounter different foundation challenges, from expansive clay soils in Kisumu to firm rock in Nakuru, requiring careful foundation selection to ensure longevity of buildings and infrastructure.

3.1.1 Strip Footing

Strip footing is a continuous strip of concrete that supports load-bearing walls and transfers structural loads along the length of the foundation. It is one of the most commonly used foundation types for low to medium-rise buildings in Kenya due to its simplicity and cost-effectiveness.

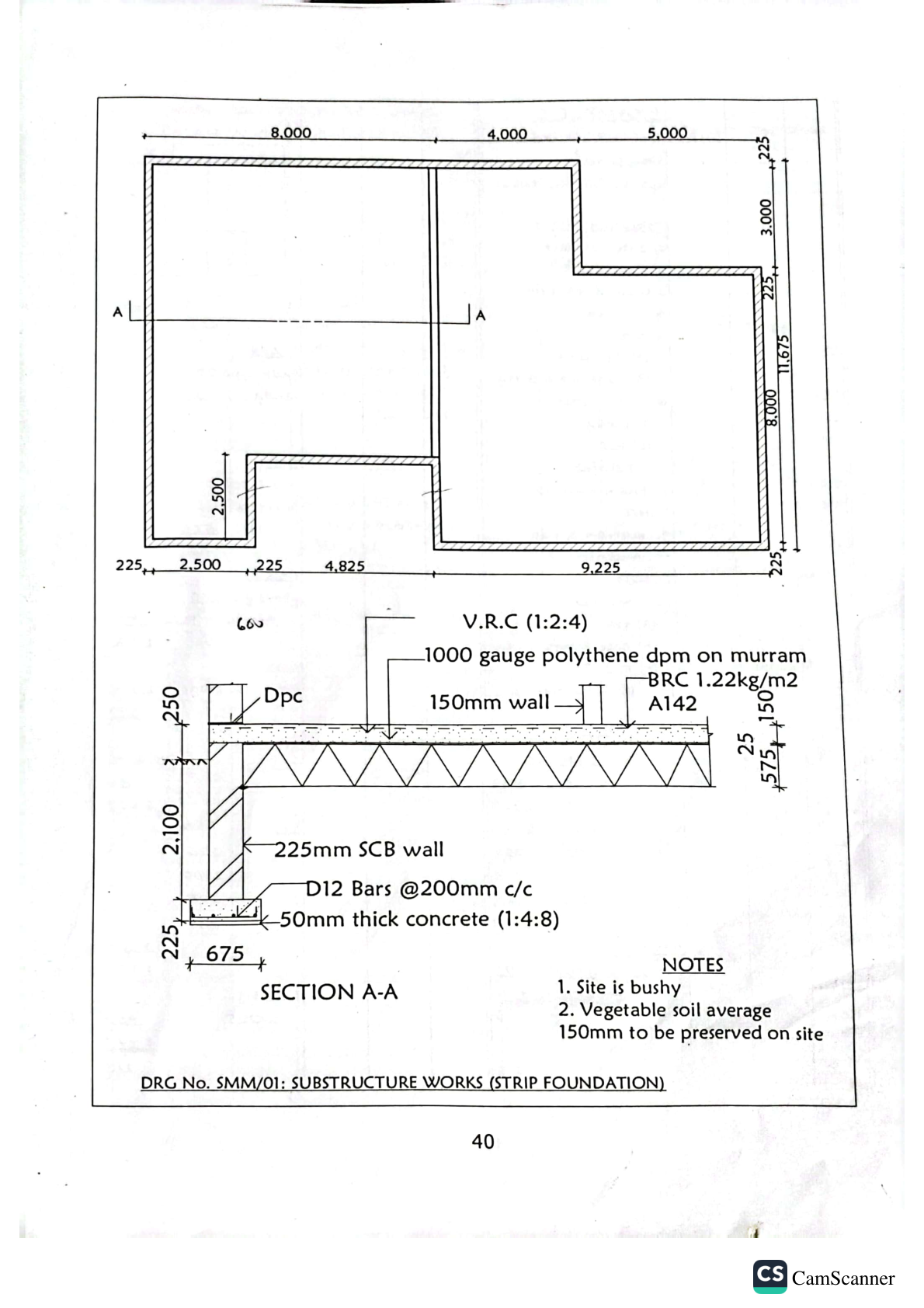

A strip foundation plan and cross-section for a building substructure (Source: measurement of building works Demystified)

Design Principles of Strip Footing

Strip footing must be designed to spread the load over a wide enough area to prevent soil failure. The width of the footing is determined by dividing the total load on the wall by the allowable soil bearing capacity. For example, a school building in Eldoret with moderate soil bearing capacity requires a wider strip footing than a similar structure on firm soils in Nairobi.

Construction Process of Strip Footing

Constructing strip footing involves several critical steps to ensure stability and durability:

1. Excavation to the required depth below the frost line or ground level.
2. Leveling and compacting the base to provide a stable platform.
3. Placing formwork along the excavation to shape the concrete.
4. Installing steel reinforcement bars to enhance tensile strength.
5. Pouring concrete and curing it properly to achieve design strength.
6. Backfilling around the footing after concrete has set.

This method is widely used in residential housing developments across Kenya’s urban and peri-urban areas.

Soil Suitability for Strip Footing

Strip footings are ideal for soils with good bearing capacity such as firm clay, gravel, or compacted sand. They are less suitable for loose, soft, or expansive soils which may cause uneven settlement. For instance, in parts of Thika where expansive black cotton soils are prevalent, alternative foundation types may be preferred to avoid structural damage.

Advantages and Limitations of Strip Footing

Strip footing offers several benefits including ease of construction, lower cost, and suitability for continuous load-bearing walls. However, limitations include vulnerability to differential settlement in weak soils and unsuitability for heavy concentrated loads or tall structures. In commercial buildings in Kisumu, engineers sometimes avoid strip footings due to the high water table and soft soils.

3.1.2 Pad Footing

Pad footings are isolated square or rectangular concrete pads that support individual columns. They are commonly used where column loads are large and ground conditions are favorable, providing concentrated support to disperse loads over a wider soil area.

Structural Design of Pad Footings

The size of a pad footing depends on the column load and soil bearing capacity. The footing must be large enough to prevent soil pressure from exceeding allowable limits. For example, a bank branch in Nakuru with heavy reinforced concrete columns requires carefully calculated pad footing dimensions to ensure stability.

Construction Techniques for Pad Footings

The construction of pad footings involves:

1. Excavation at the column location to the required depth.
2. Preparing a level and compacted base.
3. Placing steel reinforcement according to structural drawings.
4. Pouring concrete and ensuring proper compaction.
5. Curing the concrete adequately before loading.
6. Backfilling carefully to avoid disturbing the footing.

Pad footings are frequently used in multi-storey buildings in Nairobi’s central business district where columns carry significant loads.

Soil Conditions Suitable for Pad Footings

Pad footings perform well on soils with adequate bearing capacity such as compacted sands or gravels. They are not recommended for highly compressible or expansive soils without additional ground improvement. At a county government office in Kisii, soil investigations revealed soft soils requiring soil stabilization before pad footings could be constructed.

Benefits and Challenges of Pad Footings

Pad footings offer the advantage of supporting heavy point loads with minimal excavation and material use. They allow for flexibility in column placement and are relatively straightforward to build. Challenges include the risk of differential settlement if soil conditions vary beneath adjacent pads and the need for precise load calculations.

3.1.3 Raft Foundation

Raft foundations, also known as mat foundations, consist of a large concrete slab supporting several columns and walls, spreading the load across the entire building footprint. They are particularly useful in areas with poor soil conditions where individual footings might fail.

Purpose and Application of Raft Foundations

Raft foundations are designed to distribute heavy loads over a large area, minimizing differential settlement. They are commonly used in commercial buildings, hospitals, and other large structures in Nairobi’s soft soil zones. For instance, a university library constructed in a low-bearing capacity area employed a raft foundation to provide uniform support.

Design Considerations for Raft Foundations

Design of raft foundations involves assessing soil bearing capacity, load distribution, and potential for soil movement. The slab thickness and reinforcement are calculated to resist bending moments and shear forces. Engineers must also consider water table levels, especially in coastal areas like Mombasa where groundwater can affect foundation performance.

Construction Process for Raft Foundations

Construction of raft foundations requires:

1. Site clearing and excavation to the required depth.
2. Installation of a blinding concrete layer to provide a clean base.
3. Placing waterproof membranes if groundwater is a concern.
4. Positioning steel reinforcement mesh according to design.
5. Pouring concrete in a continuous operation to avoid joints.
6. Proper curing and protection of the slab to ensure strength.

Large institutional projects such as county hospitals in Kisumu often use raft foundations due to the combination of heavy loads and variable soils.

Advantages and Disadvantages of Raft Foundations

Raft foundations reduce differential settlement by spreading loads evenly and are effective for weak or expansive soils. They can also reduce excavation costs compared to deep foundations. However, they require significant concrete and reinforcement, increasing initial costs and construction time, which may not be feasible for small residential projects.

Chapter Summary

This chapter has explored the essential aspects of executing substructure works in civil engineering. It began by examining the main types of foundations including strip footing, pad footing, and raft, highlighting their distinct characteristics and applications. The process of setting out was then detailed, emphasizing the importance of understanding project requirements, preparing the site, using appropriate surveying equipment, and accurately marking the layout to ensure correct alignment and levels. Excavation of the foundation was discussed with attention to setting out the excavation area, controlling depth and width, maintaining slope stability, managing excavated material, and addressing groundwater challenges. The chapter further covered laying the foundation, focusing on selecting the foundation type, proper placement of reinforcement, and careful concrete pouring to achieve structural integrity. Finally, key structural elements such as columns, beams, staircases, and slabs were described, underscoring their roles in supporting and distributing loads within the building framework. Together, these topics provide a comprehensive understanding of the critical steps involved in substructure construction.
