Structural analysis is fundamental in building technology, especially for ensuring the safety and durability of structures under various loads. Understanding combined stresses is crucial for professionals tasked with designing columns and other load-bearing elements, as these components often experience multiple types of stresses simultaneously. In Kenya, where construction projects range from multi-storey buildings in Nairobi to industrial warehouses in Mombasa, accurate computation of combined stresses ensures compliance with safety standards and optimizes material use. This chapter focuses on the principles and assumptions related to combined stresses in columns, a vital subject for building technologists.

4.1 Stresses in Column

Columns are vertical structural members designed primarily to support axial loads. However, in real-life scenarios, columns are subjected not only to axial compression but also bending moments and sometimes torsion, creating combined stresses. Accurately computing these stresses is essential for ensuring columns can safely carry the imposed loads without failure or excessive deformation, particularly in Kenya’s urban construction where space constraints often necessitate slender columns.

4.1.1 Axial Stress in Columns

Axial stress is the fundamental stress in a column resulting from an axial load applied along the member’s longitudinal axis. It is a direct compressive or tensile stress depending on the nature of the load.

• Definition and Calculation: Axial stress (σa) is calculated by dividing the axial load (P) by the cross-sectional area (A) of the column:
  σa = P / A

• Nature of Axial Stress: In most building columns, axial stress is compressive due to the weight of the structure above and any imposed loads such as furniture, people, or equipment.

• Uniform Distribution: Axial stress is assumed to be uniformly distributed across the cross-section in ideal conditions without eccentricity.

• Impact on Design: High axial stress requires columns with sufficient cross-sectional area or the use of high-strength materials to prevent crushing or buckling.

• Example: At a county government office in Kisumu, columns supporting a new administrative block were designed considering axial loads from multiple floors, ensuring the columns’ cross-sectional area was adequate to keep compressive stress within permissible limits.

Worked Example: Axial Stress Calculation

Scenario: At a county government office in Kisumu, a concrete column has a cross-sectional area of 0.04 m² and carries an axial load of 200 kN.

• Given:

  • Axial load, \( P = 200{,}000\,\text{N} \)
  • Cross-sectional area, \( A = 0.04\,\text{m}^2 \)

• Formula:
  \[ \sigma_a = \frac{P}{A} \]

• Substitution:
  \[ \sigma_a = \frac{200{,}000}{0.04} \]

• Calculation:
  \[ \sigma_a = 5{,}000{,}000\,\text{N/m}^2 = \mathbf{5\,MPa}\,\text{(compression)} \]

Answer: The axial compressive stress in the column is \( \mathbf{5\,MPa} \).

4.1.2 Bending Stress in Columns

Bending stress arises when eccentric loads or lateral forces cause the column to bend, generating tension on one side and compression on the other.

• Cause of Bending Stress: Eccentric loading occurs when the line of action of the load does not pass through the centroid of the column’s cross-section.

• Calculation of Bending Stress: The bending stress (σb) at a point is proportional to the bending moment (M) and the distance from the neutral axis (y), and inversely proportional to the moment of inertia (I):

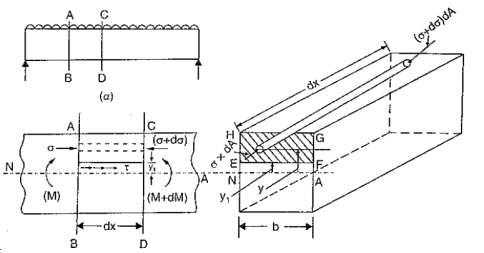

The distribution of normal stress and bending moment on a beam segment (Source: STRUCTURES I-DBT-MOD I)

σb = M * y / I

• Stress Variation: Bending stresses vary linearly from maximum compression on one face to maximum tension on the opposite face.

• Effect on Column Stability: Columns subjected to bending are more prone to buckling, especially if slender.

• Example: In a hotel project in Eldoret, columns near the building perimeter experienced bending due to wind loads, requiring detailed stress analysis to ensure safety.

Worked Example: Bending Stress Calculation

Scenario: In a hotel project in Eldoret, a column experiences a bending moment of 15 kNm. The moment of inertia is \( 8 \times 10^{-6} \) m⁴, and the distance from the neutral axis is 0.1 m.

• Given:

  • Bending moment, \( M = 15{,}000\,\text{Nm} \)
  • Moment of inertia, \( I = 8 \times 10^{-6}\,\text{m}^4 \)
  • Distance from neutral axis, \( y = 0.1\,\text{m} \)

• Formula:
  \[ \sigma_b = \frac{M \cdot y}{I} \]

• Substitution:
  \[ \sigma_b = \frac{15{,}000 \times 0.1}{8 \times 10^{-6}} \]

• Calculation:
  \[ \sigma_b = \frac{1{,}500}{8 \times 10^{-6}} = 187{,}500{,}000\,\text{N/m}^2 = \mathbf{187.5\,MPa} \]

Answer: The bending stress at 0.1 m from the neutral axis is \( \mathbf{187.5\,MPa} \).

4.1.3 Combined Axial and Bending Stresses

In practice, columns often experience both axial compression and bending simultaneously, leading to combined stresses that must be assessed for safe design.

• Superposition Principle: The total stress at any point is the algebraic sum of axial and bending stresses:
  σ = σa ± σb

• Stress Distribution: The combined stress distribution is non-uniform, with one side of the column experiencing maximum compression and the other possibly experiencing reduced compression or tension.

• Design Implications: Columns must be designed to resist the maximum compressive and tensile stresses resulting from this combination, using appropriate safety factors.

• Example: At a university lecture hall in Nairobi, columns supporting cantilevered beams were analyzed for combined stresses to prevent cracking and ensure durability.

Worked Example: Combined Axial and Bending Stress

Scenario: At a university lecture hall in Nairobi, a column is subjected to an axial load of 100 kN and a bending moment of 10 kNm. The cross-sectional area is 0.025 m², moment of inertia is \( 5 \times 10^{-6} \) m⁴, and the extreme fiber distance is 0.075 m.

• Given:

  • Axial load, \( P = 100{,}000\,\text{N} \)
  • Area, \( A = 0.025\,\text{m}^2 \)
  • Bending moment, \( M = 10{,}000\,\text{Nm} \)
  • Moment of inertia, \( I = 5 \times 10^{-6}\,\text{m}^4 \)
  • Distance, \( y = 0.075\,\text{m} \)

• Axial Stress:
  \[ \sigma_a = \frac{100{,}000}{0.025} = 4{,}000{,}000\,\text{N/m}^2 = 4\,\text{MPa} \]

• Bending Stress:
  \[ \sigma_b = \frac{10{,}000 \times 0.075}{5 \times 10^{-6}} = \frac{750}{5 \times 10^{-6}} = 150{,}000{,}000\,\text{N/m}^2 = 150\,\text{MPa} \]

• Combined Stress at Extreme Fiber:
  \[ \sigma = \sigma_a + \sigma_b = 4\,\text{MPa} + 150\,\text{MPa} = \mathbf{154\,MPa} \]

Answer: The maximum combined compressive stress at the extreme fiber is \( \mathbf{154\,MPa} \).

4.1.4 Buckling and Its Effect on Column Stresses

Buckling is a critical failure mode for slender columns under compressive loads, influenced by combined stresses.

• Definition: Buckling is the sudden lateral deflection of a column under axial compression, often triggered by imperfections or eccentric loading.

• Euler’s Buckling Load: The critical load at which buckling occurs depends on the column’s length, end conditions, and moment of inertia.

• Interaction with Combined Stress: Bending moments due to eccentricity lower the effective buckling load, increasing risk.

• Design Codes: Kenyan building codes require consideration of buckling effects in combined stress calculations for slender columns.

• Example: In a Nairobi retail mall, slender columns were reinforced and designed to resist buckling induced by combined axial and bending stresses from heavy roofing structures.

Chapter Summary

This chapter focused on the computation of combined stresses in structural elements, beginning with an examination of stresses in columns. It outlined how axial loads and bending moments influence the stress distribution within columns. The chapter then discussed the fundamental assumptions made when analyzing combined stresses, such as material homogeneity and linear elastic behavior, which simplify the complexity of real-world conditions. The concept of combined stresses was explored in detail, separating them into direct stresses caused by axial forces and indirect stresses resulting from bending or torsion. Understanding the interaction between these stresses is crucial for accurate structural analysis and design. The chapter emphasized the importance of correctly calculating both direct and indirect stresses to ensure structural safety and performance. Overall, the content provided a comprehensive framework for analyzing structural members subjected to multiple concurrent forces.
