Constructing effective drainage systems is a critical element in maintaining safe and functional environments across various sectors in Kenya. Proper drainage prevents water accumulation that can damage infrastructure, disrupt operations, and pose health risks, particularly in institutions such as county hospitals, schools, banks, and agricultural cooperatives. This chapter focuses on interpreting drainage drawings and executing excavation for drainage channels, essential skills for diploma-level TVET students working in diverse professional fields.

2.1 Interpretation of Drainage Drawings

Understanding drainage drawings is foundational to constructing drainage systems accurately. These drawings communicate detailed information about the layout, dimensions, materials, and slopes necessary to ensure efficient water flow. Professionals in sectors ranging from county government offices to retail businesses rely on correct interpretation to avoid costly errors that could compromise the drainage system’s function.

2.1.1 Purpose and Elements of Drainage Drawings

Drainage drawings serve as technical guides that depict the planned drainage infrastructure. Their purpose includes:

Purpose of Drainage Drawings

• Visualizing the Drainage Layout: They provide a clear graphical representation of where drainage channels, pipes, manholes, and catch basins will be located relative to existing structures.

• Communicating Design Specifications: These drawings detail material specifications, pipe diameters, and gradients required for effective water flow.

• Facilitating Coordination: They enable different teams, such as construction workers and site engineers at a university campus, to coordinate their activities effectively.
• Ensuring Compliance: Drainage drawings help ensure the system conforms to local regulations, such as those set by NEMA for environmental protection.
• Supporting Cost Estimation: Accurate drawings allow project managers at county government offices to estimate quantities and budget appropriately.

Key Elements of Drainage Drawings

• Plan View: Shows the horizontal layout of the drainage system including channels, pipes, and surface features.
• Sectional View: Illustrates vertical cross-sections of channels or pipes, showing depth and slope.
• Legends and Symbols: Standardized symbols represent components like manholes, catch basins, and inspection chambers.
• Levels and Gradients: Indicate the height of pipes and channels relative to a benchmark and the slope for water flow.
• Material Specifications: Notes on pipe types, sizes, and bedding materials ensure appropriate construction.

Elements of Drainage Drawings

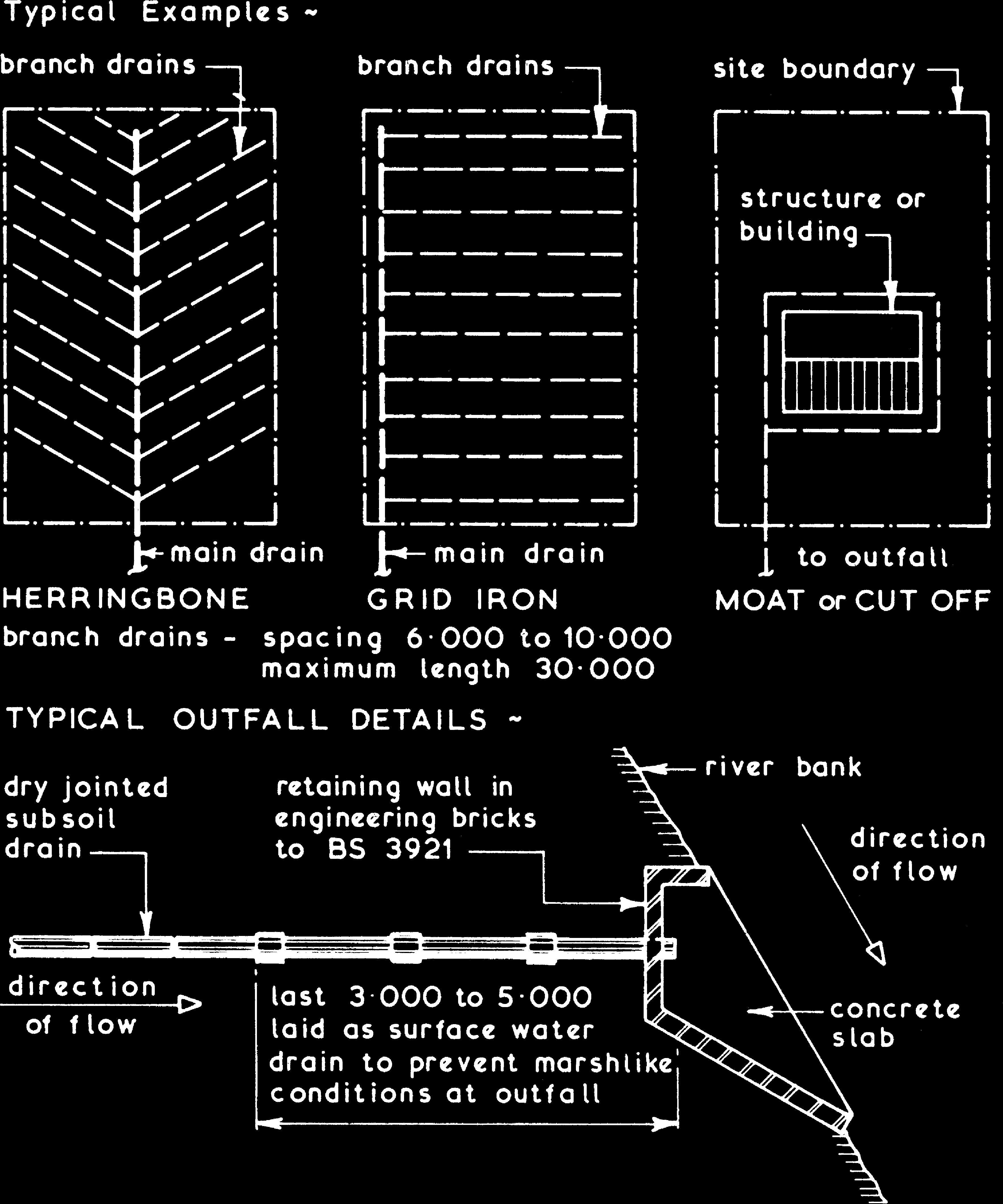

Drainage drawings contain several key elements that provide comprehensive guidance for construction teams. The site drainage plan outlines the arrangement of channels, pipes, manholes, and outlets, as seen in projects at the Kenya Medical Training College campuses. Longitudinal sections show the slopes, levels, and depths of drainage channels, which are crucial for ensuring proper water flow, such as in the expansion of Moi University’s main campus. Cross sections detail the width, depth, and shape of drainage channels, helping contractors at county government offices to excavate accurately. Detail drawings provide enlarged views of complex structures like manholes and collection chambers, which are essential for maintenance planning at facilities like Kenyatta National Hospital. Additional information includes pipe sizes, gradients, material specifications, and flow directions, all of which are necessary for compliance with standards set by the National Environment Management Authority (NEMA).

2.1.2 Reading Symbols and Notations on Drainage Drawings

Drainage drawings employ specific symbols and notations that must be well understood to avoid misinterpretation. These symbols are standardized but may vary slightly depending on the project or institution.

• Manholes: Usually represented by circles or squares with an identifying label; these allow access for maintenance.

• Pipes: Lines with varying thickness or dashed patterns denote different pipe types or sizes.

• Catch Basins: Depicted as boxes or grids; they collect surface runoff.

• Flow Direction Arrows: Indicate the intended path of water through the system.
• Elevation Marks: Numbers alongside the components show invert levels or top levels relative to a datum point.

In a county referral hospital project, misreading a manhole symbol could lead to incorrect placement, complicating future maintenance access.

2.1.3 Understanding Drainage Slopes and Levels

Proper drainage depends on accurate slope measurements to ensure water moves by gravity without stagnation or excessive velocity that could erode channels.

• Invert Level: The lowest internal point of a pipe or channel, critical to establishing flow direction.
• Gradient/Slope: Expressed as a ratio or percentage, it determines the steepness; for example, a 1:100 slope means a 1 cm fall over 1 meter.
• Benchmarks: Reference points on site from which all levels are measured.

• Drop Structures: Features that manage steep slopes to reduce erosion.

• Design Flow Capacity: The volume of water the system can handle without overflow.

2.1.4 Practical Application: Cross-Referencing Drawings to Site Conditions

Field verification is essential to confirm that the site topography matches drawing specifications before excavation begins.

• Site Surveying: Use of leveling instruments to measure existing ground levels against drawing benchmarks.
• Identifying Obstructions: Locating underground utilities or tree roots that may interfere with drainage lines.
• Adjusting Designs: Minor modifications may be required if site conditions differ, as seen in a farm cooperative adapting drainage to uneven terrain.
• Marking Out Drainage Lines: Physical marking of channels and pipe routes on the ground.
• Documentation: Recording any discrepancies for communication with design engineers.

This step ensures that a retail business’s drainage system is constructed on accurate ground data, reducing rework.

Chapter Summary

This chapter covered the essential aspects of constructing drainage systems, starting with how to interpret drainage drawings accurately to guide the work. It then detailed the excavation processes for both open and closed drainage channels, emphasizing the differences in approach for each type. The procedures for backfilling, levelling, and compacting were explained to ensure stability and proper support for the drainage infrastructure. The chapter also described the correct methods for laying different types of drainage pipes, including concrete, PVC, GI, and PPR pipes, highlighting their specific installation requirements. Finally, it addressed the construction of drainage channels and collection chambers, focusing on their role in managing water flow and preventing flooding. Together, these topics provide a comprehensive understanding of external drainage works necessary for effective site management.
