Interpretation of building drawings is a fundamental skill for Building Technology professionals in Kenya. Accurate reading and understanding of drawings ensure correct implementation of designs, compliance with regulations, and efficient communication among stakeholders such as architects, contractors, and clients. This chapter focuses on the vital aspects of symbols, abbreviations, dimensions, and annotations that appear on building drawings, enabling technicians to interpret and apply the information correctly on-site or in project planning.

5.1 Symbols and Abbreviations

Symbols and abbreviations form the language of technical drawings; they convey detailed information succinctly and universally. In the Kenyan building industry, familiarity with these conventions facilitates coordination between diverse teams and adherence to standards set by bodies like the Kenya Bureau of Standards (KEBS) and British Standards (BS). This section explores identification, meaning, and application of common symbols and abbreviations in building drawings.

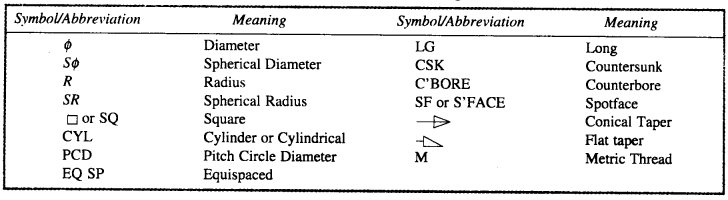

Is a table listing common engineering symbols and abbreviations alongs (Source: 1d6bc0b6a28a53b8)

5.1.1 Identification of Symbols and Abbreviations

Recognizing symbols and abbreviations on building drawings is the first step in interpretation. These graphical representations replace lengthy descriptions, making drawings more readable and standardized.

• Standardized Representation: Symbols follow conventions outlined in BS EN ISO 128 and KEBS guidelines, ensuring uniformity across drawings in Kenya. This standardization aids cross-disciplinary understanding.
• Categories of Symbols: Common categories include structural elements (e.g., beams, columns), fixtures (e.g., doors, windows), electrical components (e.g., switches, outlets), and plumbing fixtures (e.g., taps, drains).
• Graphical Characteristics: Symbols are typically simple geometric shapes or icons, often accompanied by abbreviations, facilitating quick identification without clutter.
• Abbreviation Usage: Abbreviations shorten technical terms such as "WD" for wood or "CL" for centerline, reducing textual space and simplifying labels.

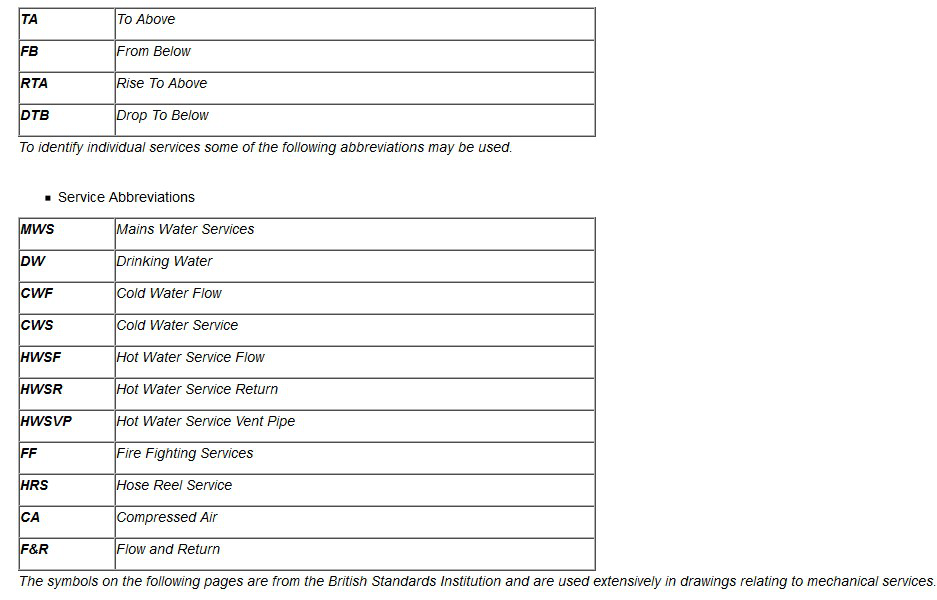

Lists common abbreviations used in mechanical services drawings (Source: PLUMB 5 LEARNING GUIDE-1 (1))

• Legend and Key Reference: Every drawing includes a legend or key that defines the symbols and abbreviations used, which must be consulted to verify meanings specific to that project.

5.1.2 Meaning of Symbols

Understanding what each symbol and abbreviation represents is crucial to avoid misinterpretation that could lead to construction errors.

• Structural Symbols: For example, a thick solid line represents a concrete wall, while dashed lines often indicate hidden elements like beams above the floor level.
• Door and Window Symbols: Doors are shown as arcs representing the swing direction, and windows as breaks in walls with specific marks indicating type, such as sliding or casement.
• Electrical Symbols: Circles with letters inside denote outlets ("S" for switch), while lines with arrows may indicate wiring routes or lighting circuits.
• Plumbing Symbols: Symbols like small circles with letters ("T" for tap) or lines indicating drainage pipes follow KEBS plumbing drawing standards.
• Material Abbreviations: Abbreviations such as "RC" for reinforced concrete, "BR" for brickwork, or "GL" for glass specify materials to be used.

5.1.3 Application of Symbols in Kenyan Building Drawings

Applying knowledge of symbols in real-world contexts ensures drawings are correctly interpreted and executed on site.

• Cross-Disciplinary Communication: Technicians, architects, and engineers use symbols to communicate complex information quickly during site meetings and inspections.
• Compliance with Building Codes: Correct symbol interpretation supports adherence to the Kenya Building Code, ensuring safety and quality standards.
• Efficient Material Estimation: Symbols help quantity surveyors identify materials and fixtures, improving accuracy in cost estimation.
• Facilitating Modifications: When renovations or extensions occur, clear symbol usage allows for easier updates to existing drawings.
• Training and Skill Development: Mastery of symbols is essential in technical colleges and on-the-job training for building technology students and professionals.

Chapter Summary

This chapter focused on interpreting building drawings by first exploring common symbols and abbreviations, including how to identify them and understand their specific meanings within architectural plans. It then examined the interpretation of dimensions and annotations, which are critical for accurately gauging sizes, distances, and construction details. The chapter also covered the interpretation of building section elements, explaining how sectional views reveal the internal structure and relationships between different components. Finally, the chapter addressed the reading of building elevations, emphasizing how these views illustrate the external appearance and vertical dimensions of a building. Together, these topics equip learners with the skills to accurately read and understand building drawings, ensuring effective communication and execution in construction projects.
