Electronics components form the foundation of modern automotive electrical systems. In Kenya's automotive engineering sector, understanding these components is vital for diagnosing, repairing, and maintaining vehicle electronics effectively. This chapter introduces the types, symbols, specifications, and testing tools that automotive engineers use daily to interpret and work with electronic circuits, ensuring vehicles operate reliably and safely.

6.1 Introduction to Electronic Components

The study of electronic components is essential for automotive engineering technicians who deal with increasingly complex vehicle electrical systems. These components control everything from engine management to infotainment systems, requiring precise knowledge of their functions, classifications, and characteristics. This section lays the groundwork for identifying, understanding, and applying electronic components in automotive contexts.

6.1.1 Overview of Electronics: What Are Electronic Components?

Electronic components are discrete devices or physical entities in an electronic system designed to perform a specific function. In automotive engineering, these include parts that control, regulate, or manipulate electrical current to enable vehicle systems such as ignition, lighting, sensors, and control modules to function properly.

Nature of Electronic Components

Electronic components can be simple, like resistors and capacitors, or complex, like integrated circuits found in engine control units (ECUs). Each component interacts with electrical signals to perform functions such as amplification, switching, or signal processing.

Role in Automotive Systems

Modern vehicles rely heavily on electronic components to improve efficiency, safety, and comfort. For example, sensors detect engine temperature and relay information to the ECU, which adjusts fuel injection accordingly to optimize performance.

Functionality Types

Components either passively influence current flow or actively control it. Passive components like resistors limit current, while active components like transistors amplify signals or switch circuits on and off.

Importance of Component Reliability

Failure of electronic components can lead to critical vehicle malfunctions. For instance, a faulty sensor can cause engine misfires, leading to increased emissions and reduced fuel economy, which are major concerns for vehicle owners and service technicians in Kenya.

6.1.2 Classification of Components: Passive, Active, and Electromechanical

Classifying electronic components helps automotive engineers understand their behavior and application within vehicle circuits. Components are generally divided into passive, active, and electromechanical categories based on their function and construction.

Passive Components

Passive components do not generate energy but influence the flow of electrical current. Common passive components include:

• Resistors: Control current flow and voltage levels.

• Capacitors: Store and release electrical energy, useful in filtering and timing circuits.

• Inductors: Store energy in a magnetic field, often used in ignition coils.

• Transformers: Transfer electrical energy between circuits through electromagnetic induction.

• Diodes: Allow current to flow in only one direction, protecting circuits from damage.

Active Components

Active components require an external power source to operate and can control the flow of electricity by amplifying signals or switching circuits. Examples include:

• Transistors: Amplify signals or act as switches in circuits.

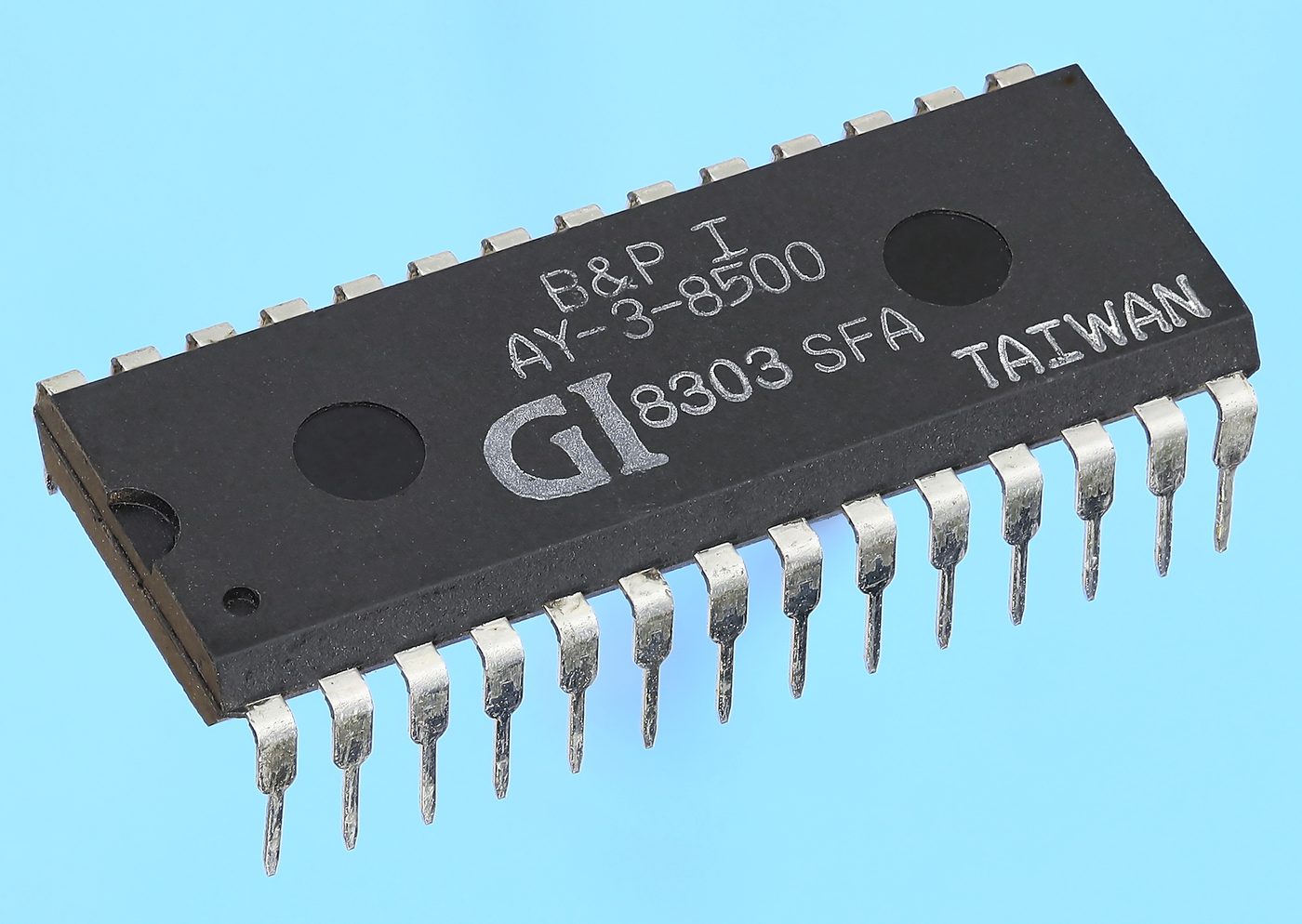

• Integrated Circuits (ICs): Miniaturized circuits that perform complex functions like engine management.

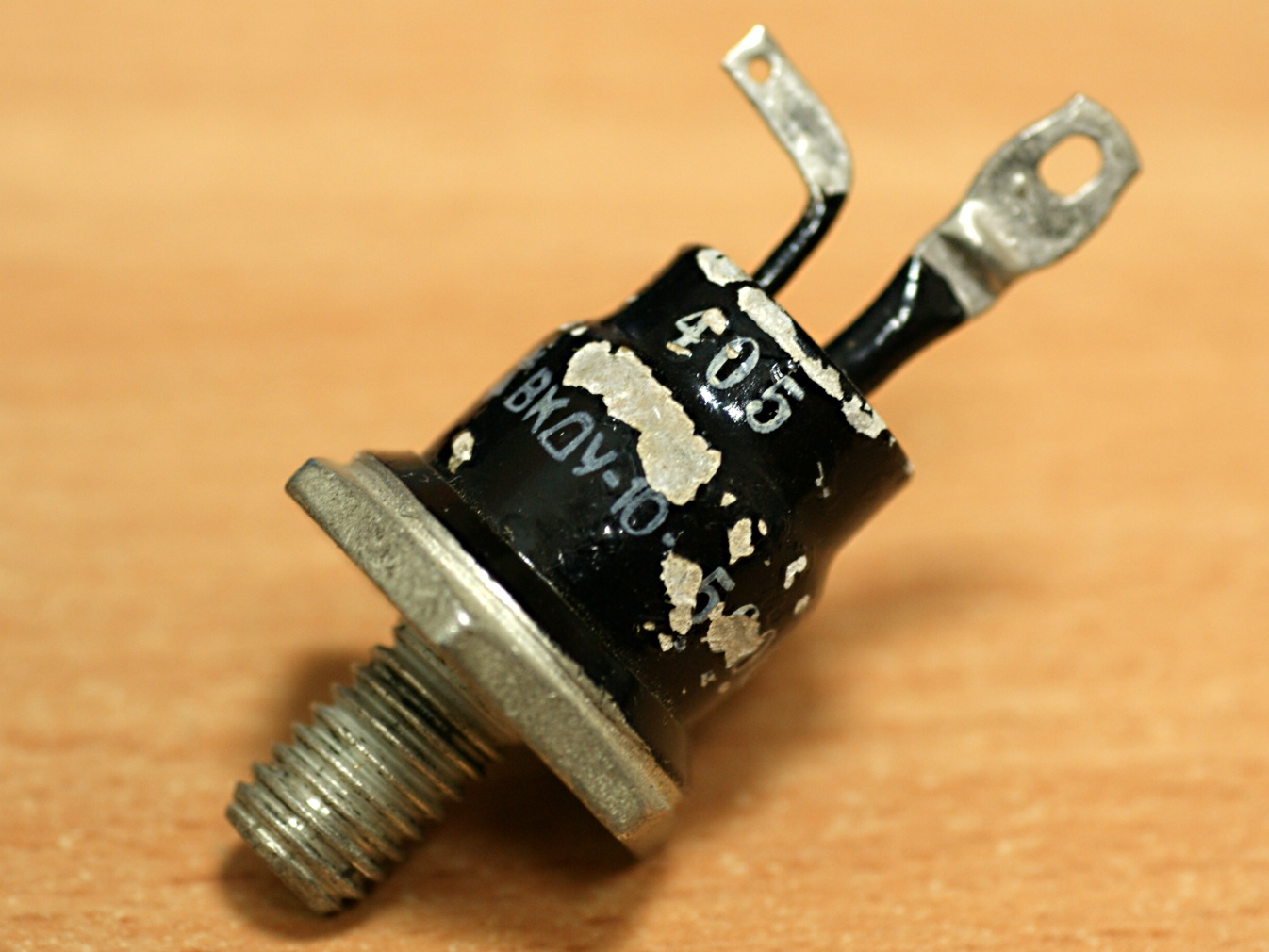

• Thyristors: Control high power flow and are used in vehicle lighting and power control.

Electromechanical Components

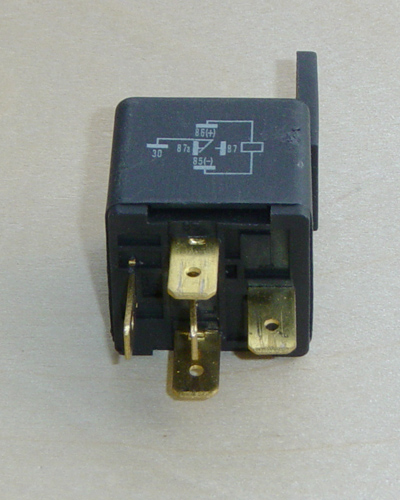

• Relays: Electrically operated switches controlling high-current circuits.

• Solenoids: Convert electrical energy into mechanical movement, used in starter motors.

• Switches: Manually operated devices controlling circuit connectivity.

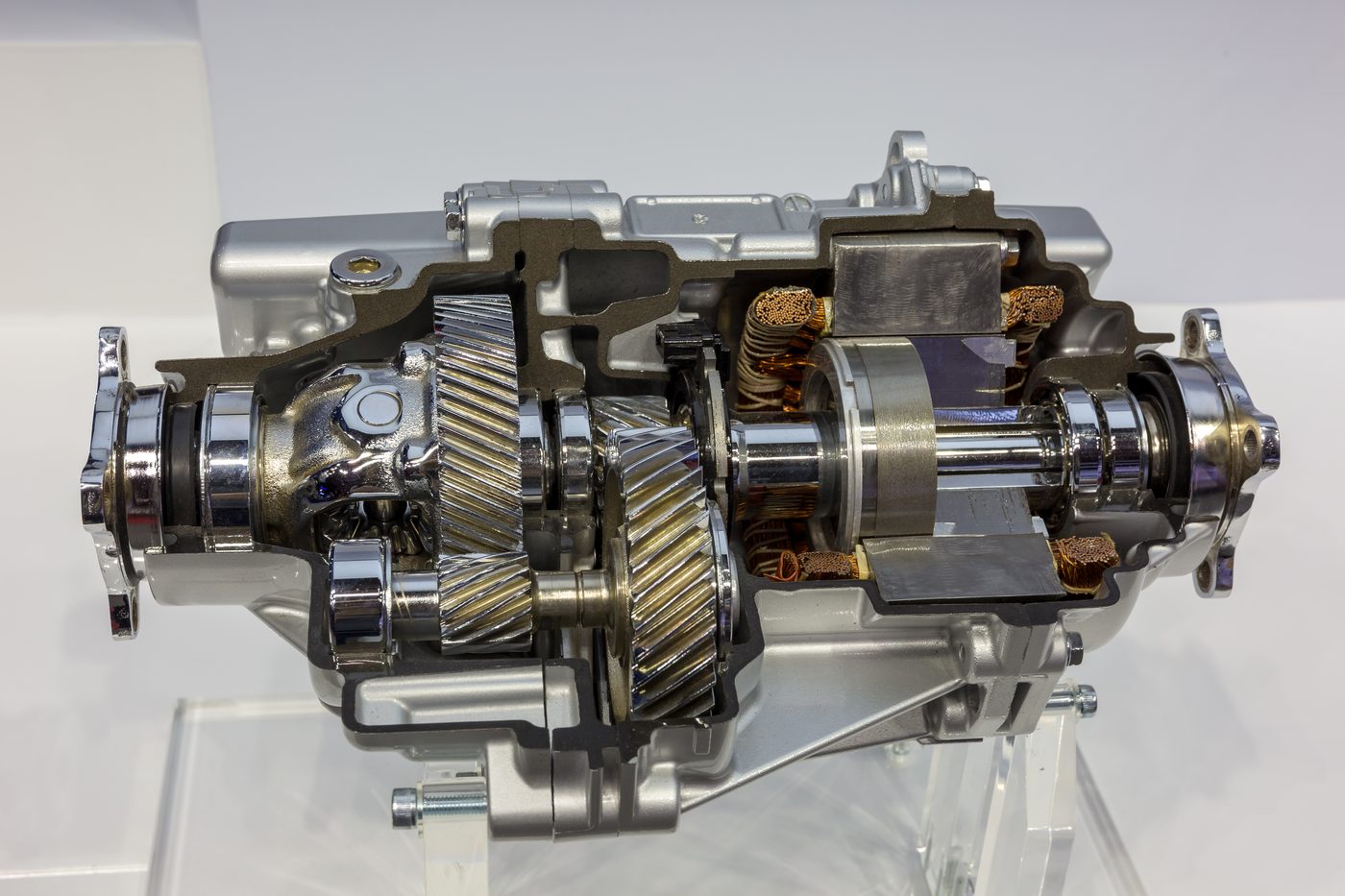

• Motors: Convert electrical energy into mechanical motion, such as in power windows.

6.1.3 Introduction to Circuit Symbols and Schematic Diagrams

Circuit symbols and schematic diagrams are universal languages for representing electronic circuits. Automotive technicians use these diagrams to visualize and troubleshoot complex vehicle electrical systems efficiently.

Purpose of Circuit Symbols

Symbols provide a simplified representation of electronic components, enabling clear communication of circuit design without physical drawings of components. This standardization is critical when working with wiring diagrams in vehicles.

Common Automotive Circuit Symbols

Technicians must recognize symbols such as resistors (zigzag line), capacitors (parallel lines), diodes (triangle with a line), transistors (combination of lines and arrows), and switches (break in a line with a pivot). For example, a relay symbol in a vehicle wiring diagram indicates a control point for high-current circuits like headlights.

Reading Schematic Diagrams

Schematic diagrams illustrate how components connect electrically, showing the flow of current paths and interconnections. Understanding these diagrams allows technicians to isolate faults and verify circuit integrity during diagnostic procedures.

Interpretation of Wiring Diagrams

Wiring diagrams differ from schematics by showing physical connections and wire routing, essential for locating components in vehicle harnesses. For instance, a wiring diagram for a car’s anti-lock braking system helps identify sensor wiring and module connections.

6.1.4 Basic Electrical Quantities and Units

Grasping fundamental electrical quantities and their units is crucial for automotive engineers to measure, analyze, and troubleshoot vehicle electrical and electronic systems effectively.

Voltage (V)

Voltage is the electrical potential difference between two points, driving current through a circuit. In vehicles, the 12V battery voltage powers most electrical components.

Current (I)

Current is the flow of electric charge through a conductor, measured in amperes (A). Automotive circuits vary from low current in sensors to high current in starter motors.

Resistance (R)

Resistance opposes current flow, measured in ohms (Ω). Resistors in automotive circuits control voltage and current to protect sensitive components.

Capacitance (C)

Capacitance is the ability to store electrical charge, measured in farads (F). Capacitors in ignition systems smooth voltage fluctuations to ensure stable operation.

Power (P)

Power is the rate of energy consumption or generation, measured in watts (W). Understanding power ratings helps in selecting components that can handle the electrical load in vehicle systems.

6.1.5 Understanding Datasheets and Component Specifications

Datasheets provide detailed technical information about electronic components, essential for selecting, installing, and troubleshooting automotive electronics.

Purpose of Datasheets

Datasheets offer specifications such as voltage ratings, current capacity, pin configurations, and physical dimensions, enabling technicians to verify component suitability for specific automotive applications.

Key Specifications to Consider

Technicians focus on maximum voltage and current ratings, power dissipation, tolerance, and temperature ranges to prevent component failure. For example, selecting a relay with an appropriate coil voltage and contact current rating ensures reliable operation in vehicle circuits.

Interpreting Pin Configurations

Datasheets include pin diagrams that guide correct wiring and mounting, preventing damage from incorrect connections in automotive modules.

Electrical Characteristics

Parameters like switching speed, gain (for transistors), and leakage current influence component performance in automotive control systems.

6.1.6 Overview of Testing and Measurement Tools

• The multimeter is the most versatile tool, used to measure voltage, current, and resistance in vehicle circuits. It helps detect open circuits, shorts, and verify sensor outputs.
• Oscilloscopes reveal waveform shapes and timing, critical for analyzing signals from crankshaft position sensors or fuel injectors.
• Test lamps quickly confirm the presence of voltage in circuits such as lighting or ignition systems.
• LCR meters identify faults in capacitors and inductors by measuring their values against specifications.
• Logic probes assist in troubleshooting digital circuits found in modern vehicle electronic control units by indicating high or low logic states.

Chapter Summary

This chapter provided a comprehensive foundation in electronic components, beginning with an overview of their classifications into passive, active, and electromechanical types, as well as an introduction to circuit symbols, schematic diagrams, and basic electrical quantities. It explained how to interpret datasheets and utilize testing and measurement tools effectively. The discussion then focused on passive components such as resistors, capacitors, and inductors, detailing their types, values, behaviors in circuits, and applications including filtering and energy storage. Semiconductor devices were explored next, covering diodes, transistors, and special components like thyristors and optoelectronics, along with their roles in switching and amplification. The chapter also examined integrated circuits, distinguishing between analog and digital types, and highlighting operational amplifiers, timers, voltage regulators, and logic gates with practical circuit applications. Finally, electromechanical and specialized components such as relays, switches, transformers, and displays were introduced, alongside essential circuit design principles, simulation tools, testing methods, and hands-on project assembly to reinforce practical skills.
